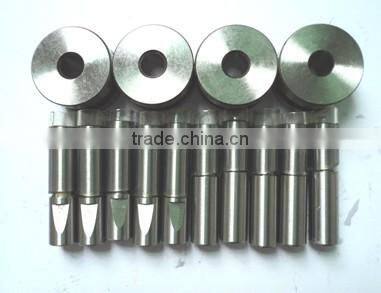

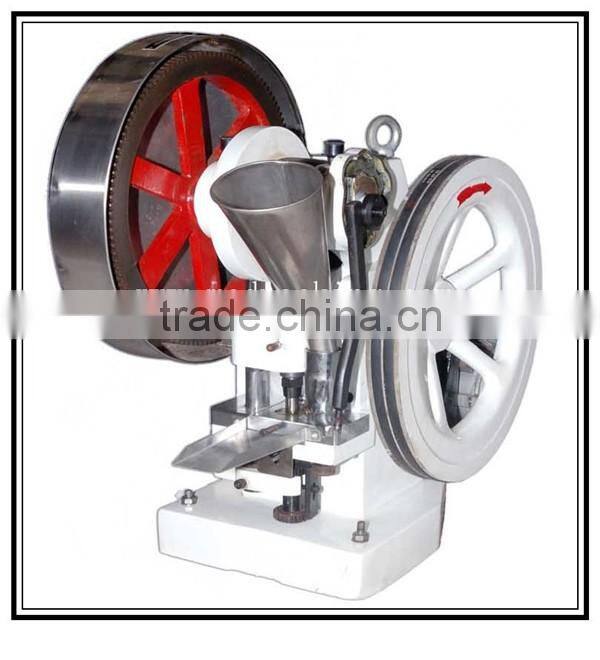

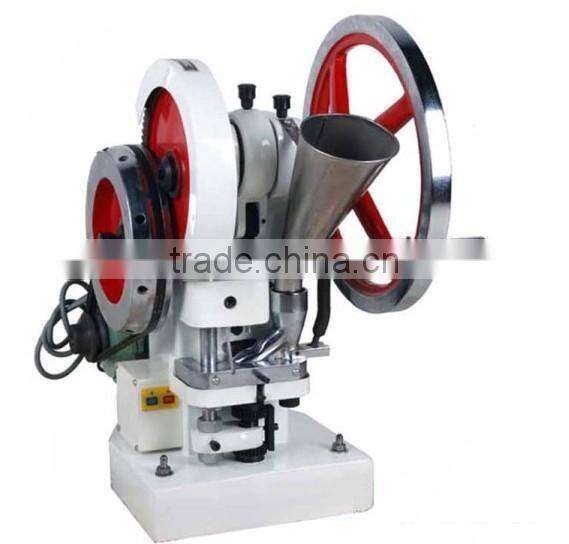

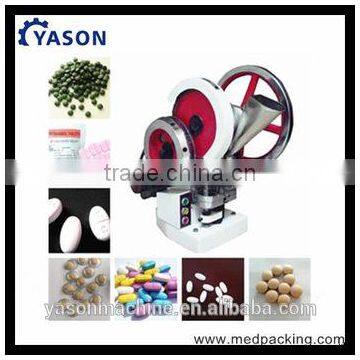

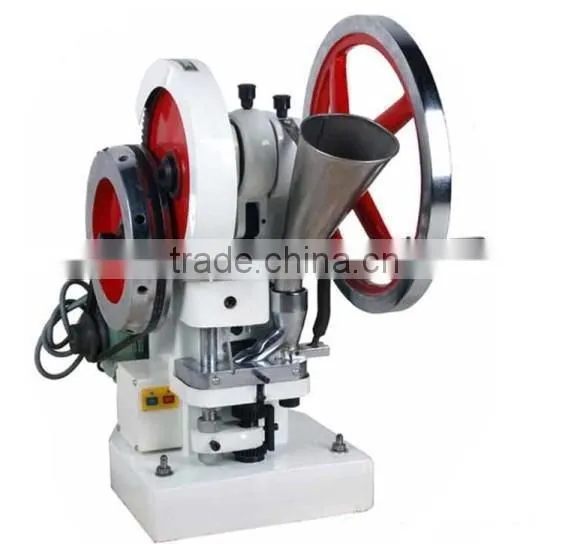

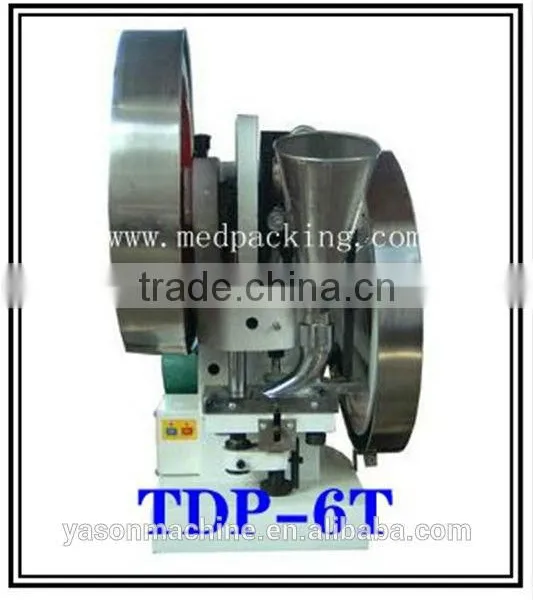

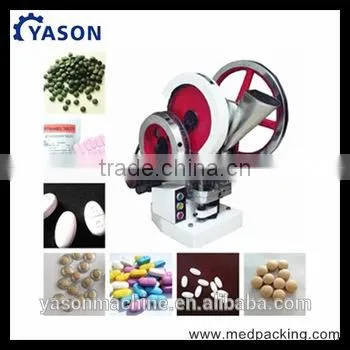

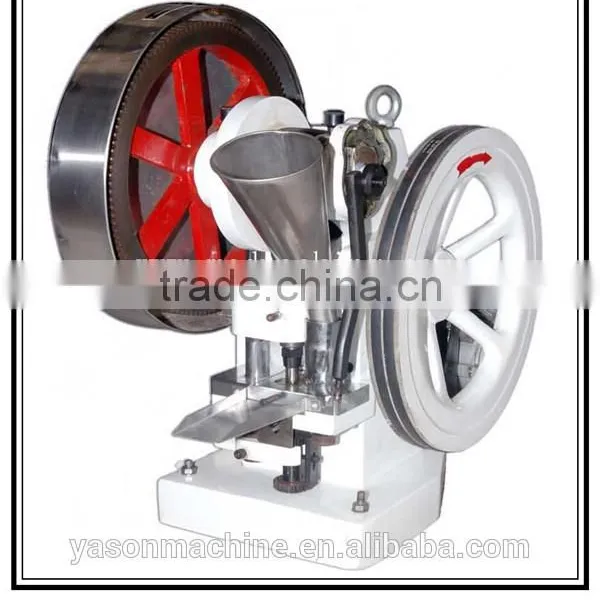

TDP 6 Single Punch Tablet Presser with 1 set Free Round Die
1, Specification
Place of Origin: Guangdong China (Mainland)
Type: single punch
Brand Name: OEM

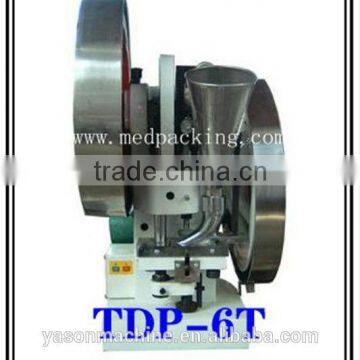

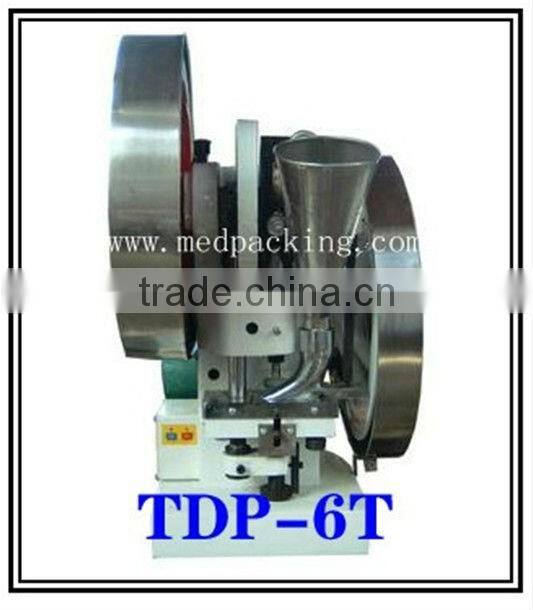

Model Number: TDP6
Type: tablet pressing machine
Application: tablet
Voltage: 110V or 220V or 240v or 380v or any voltage customized
Max.Main Pressure (kn): 60
Max.Pressure Diameter(mm): 25
Max.Filling Depth(mm): 18
Max.Tablet Thickness(mm): 7.5
Max. Production Capacity (p/h): 3000
Motor (KW): 1.1
Outside Size(mm): 700X380X695
Weight (kg): 165
2, Introduction
The machine is suitable for the industries of Chemical, Foodstuff,Electronic and etc.It is used of pressing medicinal tablets,catalysts,sugar tablets,Calcium tablets,Coffee tablets,Powder Metallurgical,Electronic elements and various tablets of pesticide and fertilizer.etc.in such small-batch production,laboratory and hospital fields.Meanwhile,that machine also can press various abnormity and normal tablet,and press the tablets in two sides with printing as well.
3, Main Technical Parameters
Material: Metal and Aluminum
Model: TDP-1.5 TDP-5 TDP-6
Max.Main Pressure (kn): 15 50 60
Max.Pressure Diameter(mm): 12 20 25
Max.Filling Depth(mm): 12 16 18
Max.Tablet Thickness(mm): 6 6 7.5
Max. Production capacity (p/h): 4500 4000 3000
Motor (KW): 0.55 0.75 1.1
Outside size(mm): 570×380×630 700X380X695 700X380X695
Weight (kg): 90 120 165
Our Services
Why Choose Us?
machines undergoes an extensive and strict testing and quality control procedure, ensuring each and every item purchased meet global quality standards.
Before Purchase
Need any information of the item before customers' purchase. On-hand professional technical staff are willing to solve any problems in 24 hours.And an instruction attached with machines' package before the shippment.
Factory Price
Most of machines are produced in our own factory ,thus we can offer you the best price and best technical service at the same time . is committed to providing high quality merchandise with good price.
Payment Method
These payments of T/T, Western Union, Paypal are accepeted. Any problem with payment during the course of payment, some instruction will be offered, only drop your questions by mail, Skype, MSN. Our staff will answer you within 24 hours.
Logistics
Cooperated with reliable internationally trusted logistic service provider such as DHL, EMS and UPS, ship to exceeding 100 countries around the world. A favorable choice of logistic company from our customer is accepted. The goods is frequently shipped out within 3 workdays, not including special important chinese festivals in china.
Tracking Number
We will inform customers of date of shippment, and tracking number will be confirmed, then write to inform our customers in 2-3 days after delivery goods.
Complainment
Any comments, suggestions are appreciated from our customers. Customers' comments will be along with our growing-up experience. will be very grateful to that.
