Manual Tablet Press Machine,Hand Tablet Press TDP-0
one year warranty and lifelong technical services
♦Introduction♦
-----------------------------------------------------------------------------------------------------------------------------------------------
This machine is used for tabletting different kinds of powder raw materials into diverse shape tablets.
It is applicable to trial manufacturing in lab or batch production in small-batch of tablets,catalysts,sugar tablets,Calcium tablets,Coffee tablets,Powder Metallurgical,
Electronic elements and various tablets of pesticide and fertilizer.etc..
It features a small desktop type press for motive and continual sheeting.It can also be hand-operated optional.
Meanwhile, that machine also can press various abnormity and normal tablet,and press the tablets in two sides with printing as well. Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjustable.
♦Main Technical Parameter♦
------------------------------------------------------------------------------------------------------------------------------------------------------
Max. pressure | 1.5kn |
Max. tablet diameter | 12mm |
Max. tablet thickness | 6mm |
Max. filling depth | 16mm |
Production capacity | 20-40pcs/min |
Weight | 30kg |
Overall dimensions | 300mm×190mm×480mm |
♦Structural Features♦
---------------------------------------------------------------------------------------------------------------------------------------------------
- The principal part of this device is a body of dragon gate, which is welded by carbon steel. The upper part is combined with the principal axis and the core shift as well as the filling cam, on the right end of which is equipped with the rocker arm and the hand shank. Transmit the principal axis manually to drive the core shift, filling cam, lifter as well as the feeder. The small lever drives the feeder to realize different lifting motions.
- Main working process: A. filling; B. STAMP (stamping forming); C. slice. These three steps are made one by one, each of which can be adjustable, applicable for forming of various tablets.
- This device is characterized by small volume, light weight, attractive appearance, compact structure, simple operation, wide application and easy carrying without need of electricity. It can be operated manually, replacing new moulds with different specifications can obtain tablets as required.
♦Maintainence Instructions♦
------------------------------------------------------------------------------------------------------------------------------------------------------
- With respect to lubrication of equipment apparatus, refuel (engine oil and grease) the beam hanger on various operative components.
- In case of once use completion or shutdown, it is required to clean materials with antirust oil to be coated.
- Place the moulds with antirust oil in the container with the cover away from injury and rusting.
♦Announcements♦
---------------------------------------------------------------------------------------------------------------------------------------------------
- It is prohibited to place hands underneath the upper and middle moulds to avoid personal injury.
- It is required to make materials into particles before tablet pressing based on the technique.
- It is required to fix the equipment on the work bench before use.

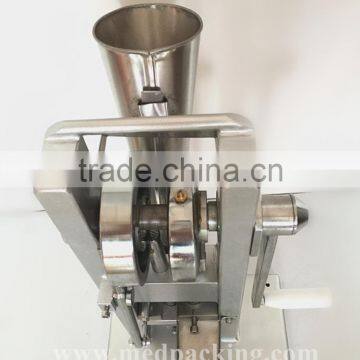

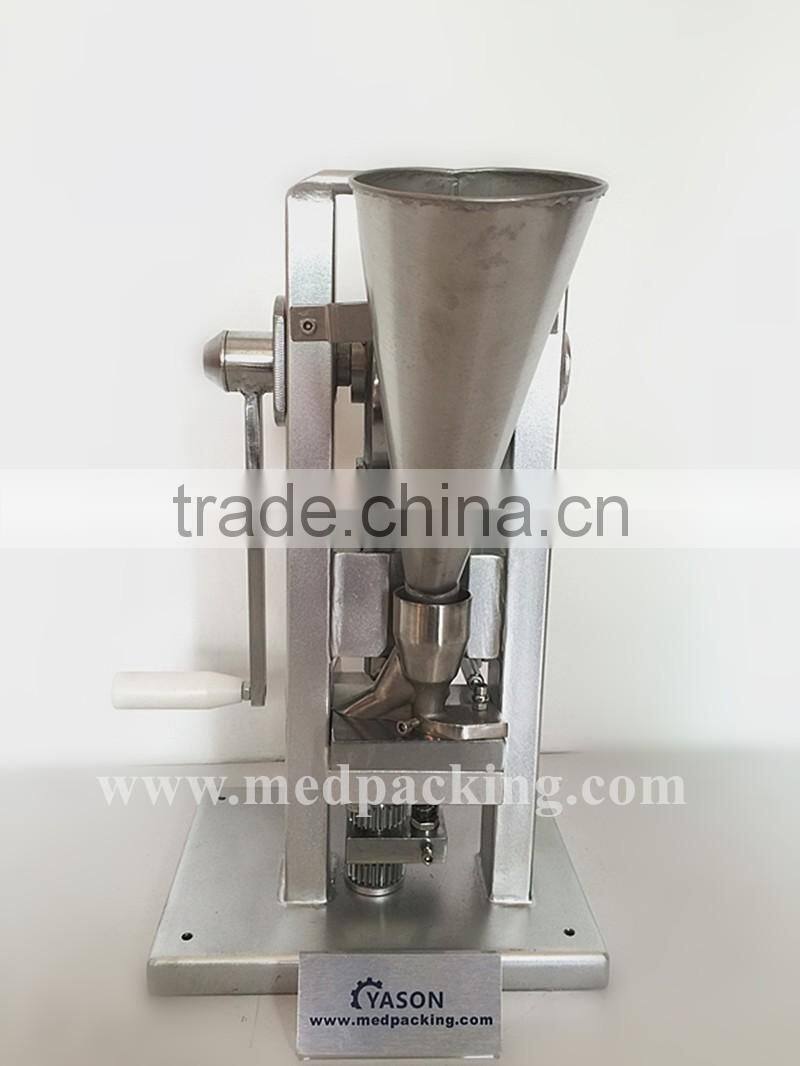

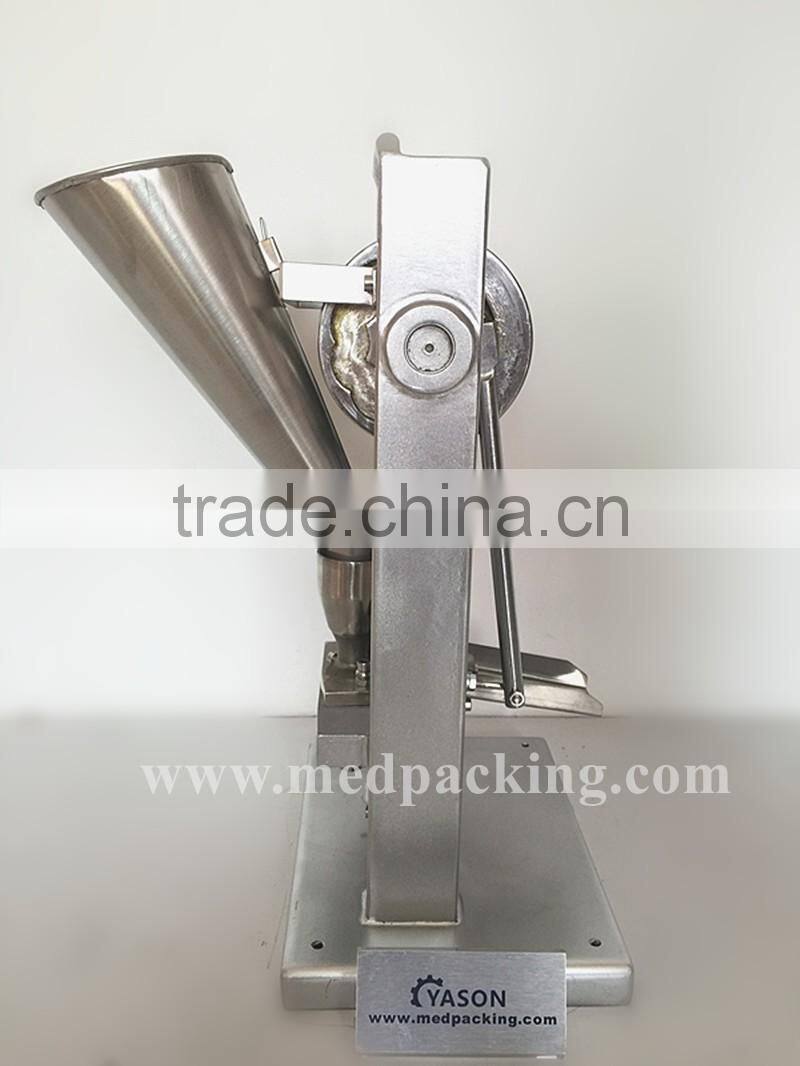

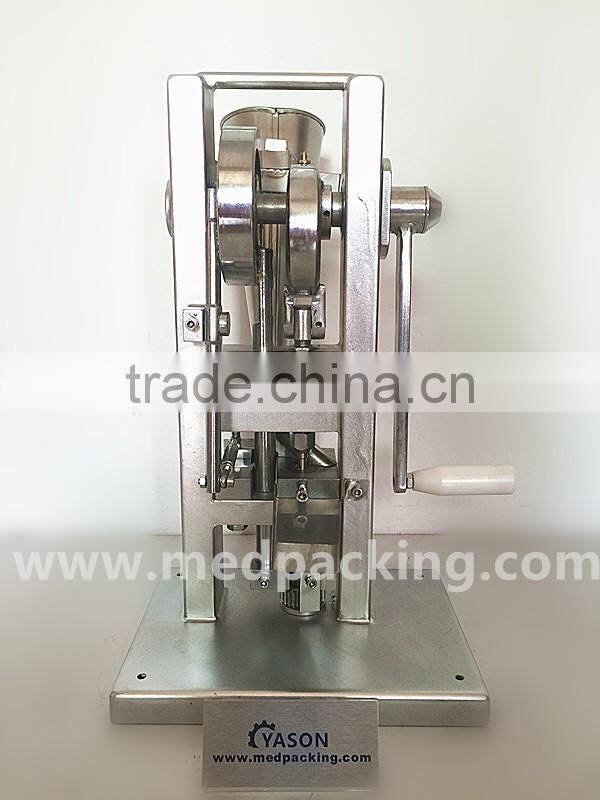

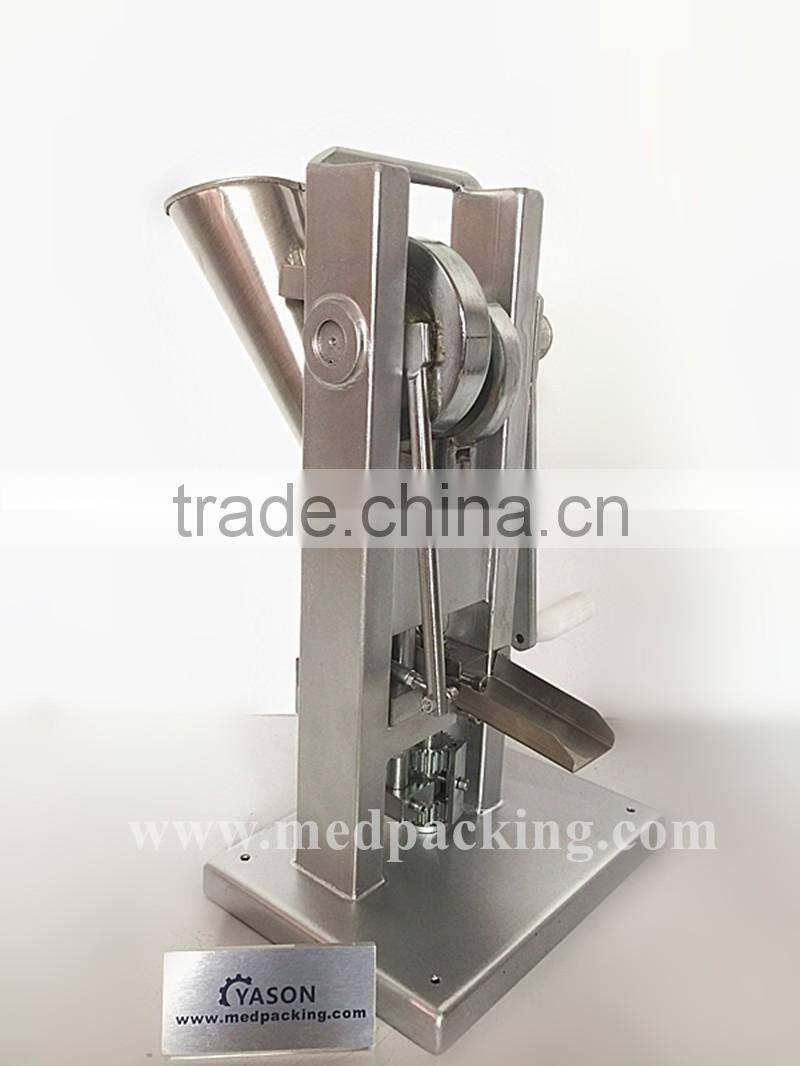

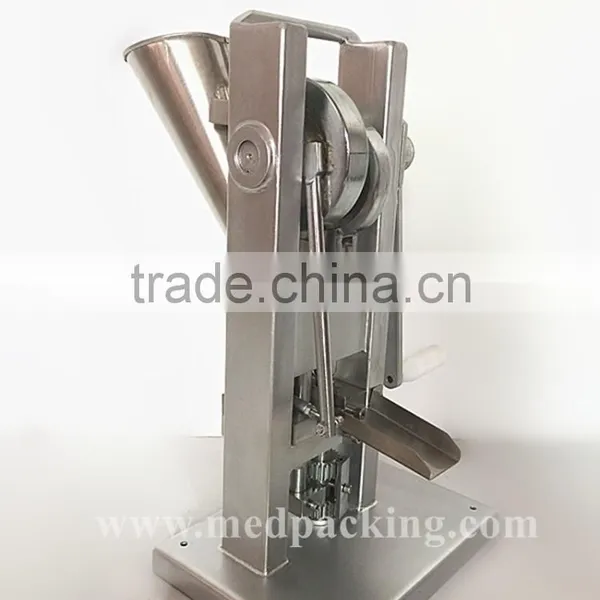

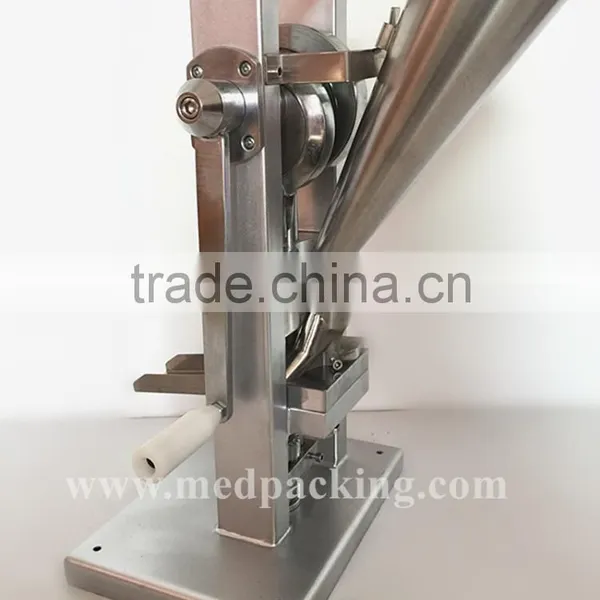

♦Pictures♦
----------------------------------------------------------------------------
♦ packaging and delivery ♦
----------------------------------------------------------------------------
♦ After-sales services ♦
------------------------------------------------------------------------------
Payment Methods
These payments of T/T, L/C, Western Union, Paypal are accepted. If you have any problem with the payment, please leave a message to us.
Logistics
DHL, EMS and UPS, Fedex are our choices. If you prefer other reliable shipping company. Please leave a message to us.
Tracking Number
Tracking number will be informed within 2-3 work days after delivery goods. If you have any problem with it, please leave a message to us.
Feedback
Any comments, suggestions are accepted. We will be very grateful to your positive footprints left in our company. If you have any problem with our products, please leave a message to us.
Refund
Any damage or shortage of our goods when you receive your items. Please take some photos for a witness. We will deal with it in 24 hours. Frequently, we will send a new part of items for alternative and heavy-damage, Before refund is accepted, please leave a message to us.
If you have any questions please feel to let me know.
I will always here to assist you!
