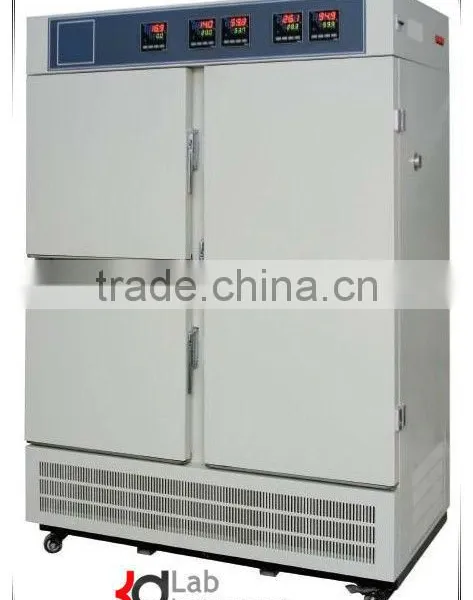

100L-200L (400CGS)GMP Stability Chambers

Name

Stability Chambers(three-in-one)

Model

Kingdak-400CGS

Chamber No.

A

B

C

Temperature Range

10~65°C

Accuracy

±1.0°C

±0.5°C

±0.5°C

Deviation

±2.0°C

±1.5°C

±1.5°C

Humidity Range

N/A

40~95%RH

40~95%RH

Accuracy

N/A

±3%RH

±3%RH

Deviation

N/A

±4%RH

±4%RH

Illumination intension

0~6000LUX

N/A

N/A

Deviation

±500LUX

N/A

N/A

Control manner

Temperature and humidity balance Control

Compressor

Original Imported industry compressor ( European Union)

Humidity Sensor

Original Imported humidity sensor ( European Union)

Controller

Original Imported Digital Display Controller( JAPAN)

Data Recorder

Optional

Test point

40°C 75%RH,25°C 60%RH

Temperature alarm

High and low boundary deviation alarm for temperature(Optional)

Humidity alarm

High and low boundary deviation alarm for humidity(Optional)

Dual protections

Independent overheat protection warning system

Operating temp

+5~35°C

Internal material

Mirror surface Stainless steel SUS304

External material

Steel powder coated

Water tank

External Water Tank

Power source

AC 220V±10% 50HZ

Safety device

Compressor and blower overheat protection system, Over temperature protection, overpressure and overload protection for compressor, Water scarcity protection

Max Power(kW)

4.0

Capacity (L)

100

100

200

Interior dimensions
(mm)W×D×H

480×420×500

480×420×500

480×420×1050

External dimensions
(mm)W×D×H

1280×870×1820

Trays (standard)

2

2

3

Optional

1,Data record: U disk (Made in China)
2,Data record: Recorder with paper(Made in JAPAN)
3,Alarm:Temperature & Humidity deviation alarm
4,3Q validation documents
5,Calibration certificate

Remark

Please confirm whether the external dimension of this model chamber can be smooth for elevator,corridor or gate, whether there is enough space for it in lab.
