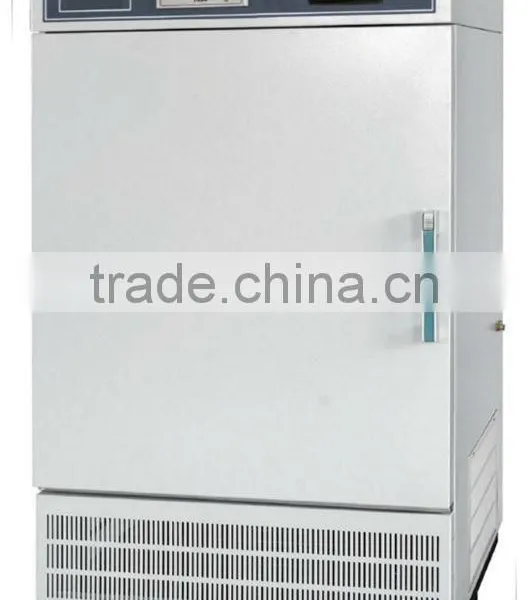

(150L 250L)FDA Stability Chambers
1,The latest airway system design achieves uniform of temperature and humidity from different parts inside the chamber;Interior material is mirror stainless steel SUS304, no pollution source, easy for clean.
2,Industrial compressor is European original imported completely sealed for high efficiency , low noise, assure machine of long time continuous running .
3,Temperature and humidity integrated sensor is European original imported for high precise, low floating annually. It can test humidity directly , no need of maintenance.
4,Original imported temperature and humidity controller for fast reaction, low deviation of system, high precise control.
5,Standard meets : ICH-2003 Q1(A) CP2010
| Name | Stability Chambers(FDA) | Stability Chambers (FDA) | ||
Model | Kingdak-120FS | Kingdak-250FS | Kingdak-500FS | Kingdak-1000FS |
Temperature Range | 0~65°C | 10~65°C | ||
Accuracy | ±0.5°C | ±0.5°C | ||
Deviation | ±1.5°C | ±1.5°C | ||
Humidity Range | 40~95%RH | 40~95%RH | ||
Accuracy | ±3%RH | ±3%RH | ||
Deviation | ±4%RH | ±4%RH | ||
Control manner | Temperature and humidity balance Control | |||
Compressor | Original Imported industry compressor ( DANFOSS,DENMARK) | |||
Humidity Sensor | Original Imported humidity sensor ( ROTRONIC,SWITZERLAND) | |||
Controller | Original Imported Touch Screen Controller(J-THERMO) | |||
Data Recorder | Optional | |||
Test point | 40°C 75%RH,25°C 60%RH | |||
Temperature alarm | High and low boundary deviation alarm for temperature(Optional) | |||
Humidity alarm | High and low boundary deviation alarm for humidity(Optional) | |||
Dual protections | Independent overheat protection warning system | |||
Operating temp. | +5~35°C | |||
Internal material | Mirror surface Stainless steel SUS304 | |||
External material | Steel powder coated | |||
Water tank | External Water Tank | |||
Power source | AC 220V±10% 50HZ | |||
Safety device | Compressor and blower overheat protection system, Over temperature protection, overpressure and overload protection for compressor, Water scarcity protection | |||
Max Power(kW) | 1.5 | 2.5 | 3.0 | 4.0 |
Capacity(L) | 150 | 250 | 500 | 1000 |
Interior dimensions | 600×405×620 | 680×500×730 | 800×700×900 | 900×920×1200 |
External dimensions | 760×830×1480 | 840×870×1550 | 1080×1180×1790 | 1300×1380×1830 |
Trays (standard) | 3 | 3 | 4 | 4 |

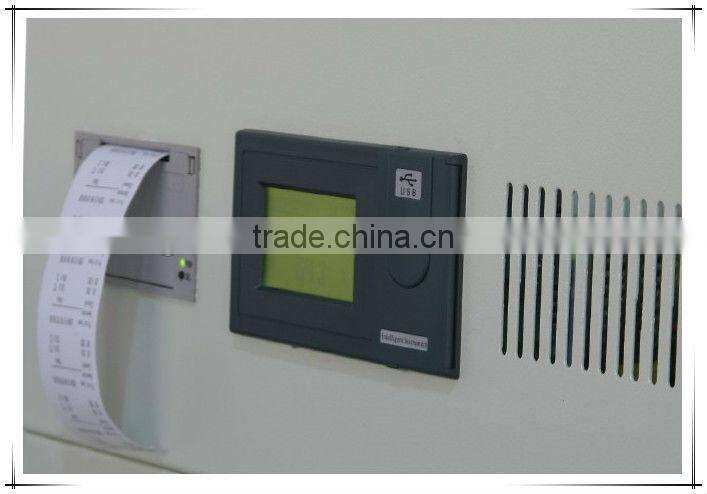

Optional | 1,Data record: Recorder with paper(with chart drive,OHKURA) | |||
Remark | Please confirm whether the external dimension of this model chamber can be smooth for elevator,corridor or gate, whether there is enough space for it in lab. | |||
