Specifications
1) CE & ISO 9001 certificates2) It can produce pure water & ultrapure water

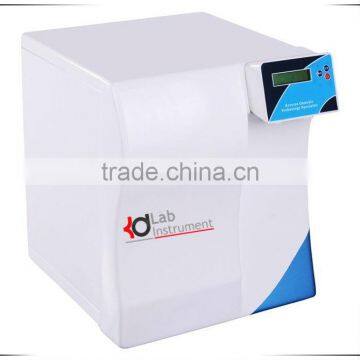

lab mini D Pure & Ultra Pure Water machine
Function description
1. Ultra-pure water resistance/conductivity value real-time online shows, water temperature online display
2. System circulate in regular automatic
3. External KERTONE 50L special original tank
4. The system uses the environmental protection and energy saving material production, to ensure user use safety
System parameters
1. Size (long x width x high) : 37 x 3.5 x 400mm
2. Net weight: > 15KG
3. The original water tank: external kertone 50L special original tank
4. The power supply voltage: 220V + 10%
5. Power frequency: 50HZ
6. Power: 50-100W
Technical indicators
1. Water conditions: reverse osmosis water, distilled water, deionized water, pure water
2. Ultra-pure water resistivity: 18.25 m. cm @ 25 °C
3. TOC:≤15 ppb (with UV lamp, TOC≤5ppb)
4. Particulate:(Particle size> 0.05 um) < 1 / ml
5. Heavy metal ions: < 0.01 PPB
6. Bacteria: < 1cfu/ml
7. Ultra-pure water speed: 2L/mil (tank water)
System configuration
Technical specification | DATA | MINI-D |
Pretreatment system | Prevent raw water box impurities | √ |
Pressurization system | Pure water pressurization | √ |
Purification unit | -- | √ |
Ultraviolet disinfection unit | 185/254nm UV lamp | √ |
Ultraviolet sterilization unit | Water tank sterilization | selective |
Ultrapure filter | -- | selective |
Terminal filter | 0.22um | √ |

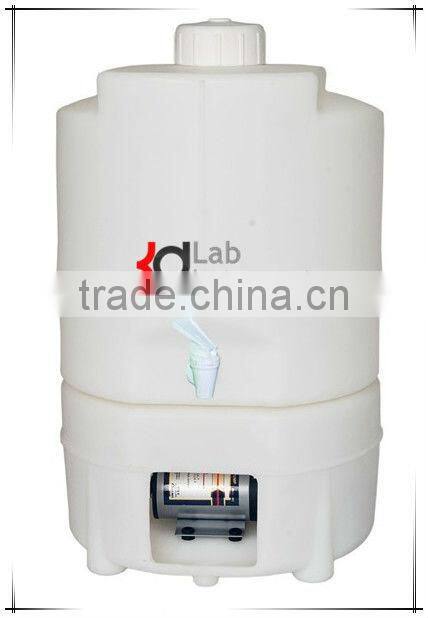

External kertone special original tank | 50L(with air purifier) | √ |
Wall-mouted installment unit | Install the system on the wall | selective |
Water tank connect unit | Connect the water tank and system | √ |
