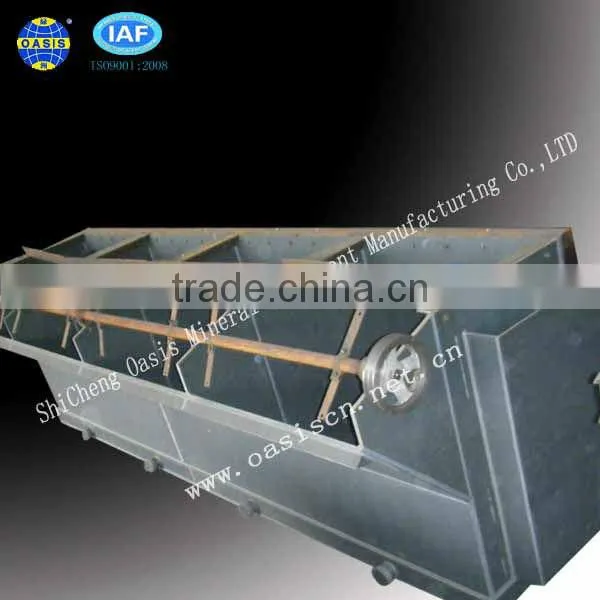

Help CenterFlotation Machine/ Mineral Processing Flotation Equipment/Flotation Separator/XJK Flotation Machine
Related Products
-
Small Size Crusher Equipment /Lab Crusher Equipment,Sealed Jaw Crushers/Laboratory Sealed Jaw Crushers/Lab Mineral PulverizerUS$ 1 - 9,000MOQ: 1 Set -
Small Size Crusher Equipment /Lab Crusher Equipment/Sealed Jaw Crushers/Laboratory Sealed Jaw Crushers/Lab Mineral PulverizerUS$ 1 - 9,000MOQ: 1 Set
-
Small Size Crusher Equipment /Lab Crusher Equipment/Sealed Jaw Crushers/Laboratory Sealed Jaw Crushers/Lab Mineral PulverizerUS$ 1 - 9,000MOQ: 1 Set
-
Small Size Screening Equipment/ Laboratory Screening Equipment/Top Bump Screen/Testing Sieve/Standard Sieve/Standard Sieve ShakeUS$ 1 - 9,000MOQ: 1 Set
-
Small Size Crusher Equipment /Lab Crusher Equipment/Sealed Jaw Crushers/Laboratory Sealed Jaw Crushers/Lab Mineral PulverizerUS$ 1 - 9,000MOQ: 1 Set
Specifications
1. Factory price flotation machine2. Manufacturer of flotation machine3. High quality flotation machine
New siructure of impeller is backwards inclined double impellers equipped with honeycomb duct and dummy bottom. Therefore ,the slurry in the tand will cycle upward and downward in a fixed flow manner, which is helpful to the suspension of those coarse particles .Airand slurry are naturally sucked without need for foam pump.
Model | Volume | Impeller Diameter | Impeller speed |
Capacity | Cell size | Power | Weight | |
Impeller | Scraper | |||||||
m3 | Mm | r/min | m3 /min | mm | Kw | kg | ||
XJK 1A | 0.13 | 200 | 600 | 0.05-0.08 | 500/500/550 | 0.75 | 0.5 | 190 |
XJK 2A | 0.23 | 250 | 500 | 0.12-0.28 | 600/600/650 | 1.5 | 0.5 | 390 |
XJK 3A | 0.35 | 300 | 483 | 0.18-0.4 | 700/700/700 | 2.2 | 1.1 | 426 |
XJK 4A | 0.62 | 350 | 400 | 0.3-0.9 | 820/900/850 | 3 | 1.1 | 752 |
XJK 5A | 1.1 | 500 | 330 | 0.6-1.6 | 1100/1100/1000 | 5.5 | 1.1 | 1208 |
XJK 6A | 2.8 | 600 | 280 | 1.5-3.5 | 1750/1600/1100 | 11 | 1.1 | 2108 |
SF 4A | 0.37 | 296 | 386 | 0.2-0.4 | 700/700/750 | 1.5 | 0.55 | 466 |
SF 5A | 1.2 | 450 | 312 | 0.6-1.2 | 1100/1100/1100 | 5.5 | 1.1 | 1360 |
SF 6A | 2.8 | 550 | 268 | 1.5-3.5 | 1700/1600/1150 | 11 | 1.5 | 2126 |
SF 7A | 4 | 650 | 220 | 2-4 | 1850/2050/1200 | 15 | 1.5 | 2579 |
SF 8A | 8 | 760 | 191 | 4-8 | 2200/2900/1400 | 30 | 1.5 | 4116 |
