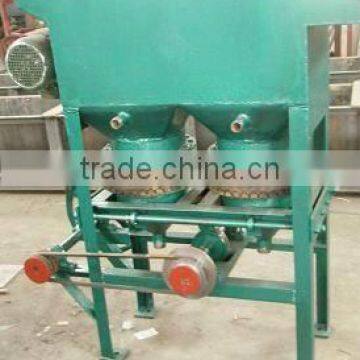

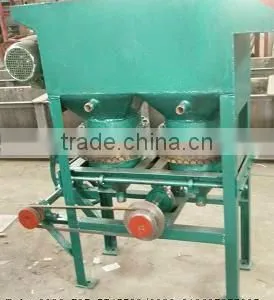

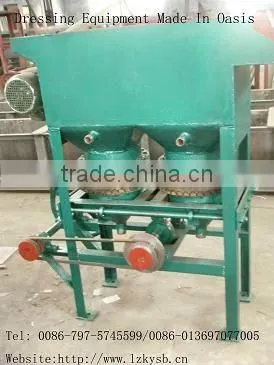

Lab Jigger
US$ 1,400 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
oasis
Model Number:
XCT0.57-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lab Drum Wet Low-intensity Magnetic SeparatorUS$ 7,000 - 8,000MOQ: 1 Set -
Centrifugal Processing MachineUS$ 13,500 - 15,000MOQ: 1 Set
-
Lab Disc Vacuum FilterUS$ 3,900 - 4,300MOQ: 1 Set
-
Lab High Voltage Electrostatic SeparatorUS$ 38,000 - 41,000MOQ: 1 Set
-
Lab Screen and Standard ScreenUS$ 1,560 - 3,800MOQ: 1 Set
Place of Origin
Jiangxi, China
Brand Name
oasis
Model Number
XCT0.57-1
Condition
New
After-sales Service Provided
Overseas service center available
Specifications
1. High concentration ratio and high recovery 2. Fabricated with highest quality material3. All products through the ISO

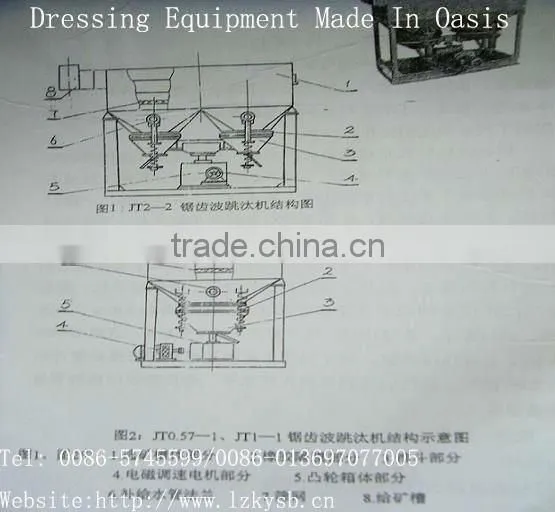

XCT diaphragm jig for gravity beneficiation, gravity dressing is based on the proportion of ore is different from re-settling velocity in the medium is also different, using the weight difference of mineral upon the completion of a mixture of layered mineral particles sorting work. This product is the only designated former Ministry of Geology and Mineral production, the implementation of industry standards.
The device is suitable for sorting ferrous and nonferrous metals, chemicals, construction and metallurgical aspects of experimental research.
Model |
Uite |
XCT100/150 |
XCT200/300 |
Length |
mm |
150 |
300 |
Width |
mm |
100 |
200 |
Stroke |
mm |
20 |
32 |
Times of stroke |
/min |
420 |
346 |
Jig chamber |
2 |
2 |
|
Feed size |
mm |
3 |
6 |
Area |
m2
|
0.03 |
0.06 |
power |
kw |
0.4 |
0.75 |
Water comsumption |
L/S |
0.117 |
0.117 |
Water comsumption |
L/S |
0.1 |
0.1 |
Caparating size |
Kg/h |
700 |
700 |
Overall dimensions |
mm |
752/520/1310 |
1110/520/1310 |
Weighe |
kg |
150 |
175 |
