Help CenterIron Ore Rod Magnetic Separator Machine /magnetic Drum Wet Iron Ore Magnetic Separator Machine/ Dry Magnetic Trommel Separator
Related Products
-
Large-scale Permanent-Magnetic Roller Separator/ Drum Magnetic Separator EquipmentIron Ore Rod Magnetic Separator MachineUS$ 1,000 - 50,000MOQ: 1 Set -
Magnetic Drum Wet Iron Ore Magnetic Separator Machine/ Dry Magnetic Trommel Separator/ Separator for Iron Ore SeparatingUS$ 1,000 - 9,000MOQ: 1 Set
-
Magnetic Separator Recycling Machine,Separating Iron Ore Machine,wet Dry Iron Sand Magnetic Separator MachineryUS$ 3,000 - 7,350MOQ: 1 Set
-
Dry Roller Magnetic Machine,Strong Drum Roller China Dry Ore Magnetic Separator Machine Prices for SaleUS$ 5,200 - 8,600MOQ: 1 Set
-
Wet CT Magnetic Drum Separator Equipment for Sale in ChinaUS$ 200 - 250,000MOQ: 1 Set
Magnetic separator used for remove fine particles strong magnetic minerals, widely used in mineral processing, coal preparation for separator iron,we can produce 0-12000GS
Drum Magnetic Separation MachineTechnical Specifications
Model | Drum Dia(mm) | Drum L(mm) | Speed(r/min) | Input sizeg(mm) | Capacity (t/h m³/h) | Power(kw) | Weight(kg) | |
LZCT0404 | 400 | 400 | 48 | 0.1-6 | 0.5-1 | 1.5-3 | 1.1 | 301 |
LZCT0409 | 400 | 900 | 48 | 0.1-6 | 2-5 | 6-12 | 1.1 | 468 |
LZCT0506 | 500 | 600 | 44 | 0.1-6 | 3-7 | 9-21 | 1.5 | 423 |
LZCT0512 | 500 | 1200 | 44 | 0.1-6 | 5-15 | 15-45 | 1.5 | 711 |
LZCT0609 | 600 | 900 | 39 | 0.1-6 | 8-15 | 24-45 | 2.2 | 678 |
LZCT0612 | 600 | 1200 | 39 | 0.1-6 | 10-20 | 30-60 | 2.2 | 846 |
LZ0709 | 750 | 900 | 35 | 0.1-6 | 10-25 | 30-75 | 2.2 | 736 |
LZCT0718 | 750 | 1800 | 35 | 0.1-6 | 20-45 | 60-135 | 3 | 1268 |
LZCT0918 | 900 | 1800 | 31 | 0.1-6 | 25-55 | 75-165 | 4 | 1456 |
LZCT1021 | 1050 | 2100 | 22 | 0.1-6 | 45-88 | 135-264 | 5.5 | 2006 |
LZCT1224 | 1200 | 2400 | 19 | 0.1-6 | 65-100 | 195-300 | 7.5 | 3968 |
Roller Separator for Processing Magnetite
| Model | unit | XCG-ll |
Roll size | mm | 120×(30+30) two-sided |
Intensity | MT | 1400(5000-14000GS)adjust |
Rotating | r/min | 55 |
space magnet | mm | 4,6,8(adjust) |
Capacity | kg/h | 5-25 |
Feeder size | mm | 0-5 |
Power | VA | 500 |
Overall dimensions | mm | 360×450×460 |
weight | kg | 75 |
Our Services
♦ Pre-sale services: Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♦ Sale services: Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
♦ After-sale services: Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Company Information
—We have passed ISO9001:2008 and CE and SGS certification
—Our products have obtained the title of "China High Quality Well-Known Products".
—Our products are sold to more than 28 provinces/cities in China and are exported to Russia, Africa, Indonesia ,the Middle East, Philippines, Mongolia, Sudan, Kazakhstan, Brazil, Chile , Nigeria ,Canada and Australia.
—We have won high reputations from all of our clients for our machines and services.
1.Why buy from us?
1)Our factory covering an area of over 36,000 square meters
2)Our company having more than 36 sets of heavy processing equipment and with an annual output of more than 2600 sets of mining machinery
3)Our products are sold to more than 28 provinces/cities in China
4)Our products have exported to Russia,Africa,Indonesia,the Middle East,the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, Chile, Canada , Nigeria, Australia and so on
5)Delivery fast -----Goods be sent out within 5 to 20 days based on order quantity
6)Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long-term business
2.What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.
1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone,What is the general particle size(mm) of the raw ore?
3). What is the handling capacity(tons per hour) you plan to work with?
4).What is the elements of the raw ore? How much percent % of each minerals?
3.Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.
4. How long is the warrenty of your equipments? Does your company supply the spare parts?
The warranty period of Oasis equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.
5. If i need the complete mineral processing line. is Oasis able to help us build it?

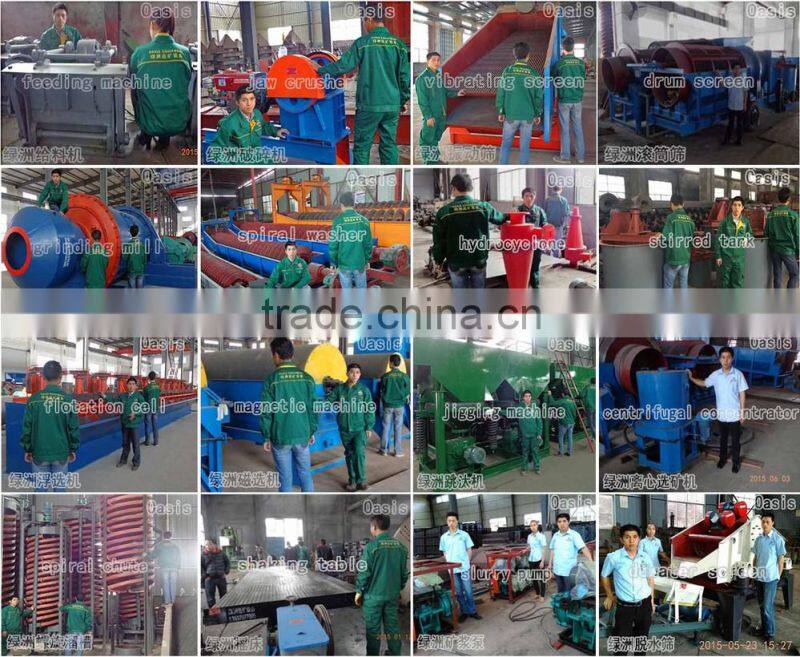

Other mining machine:
