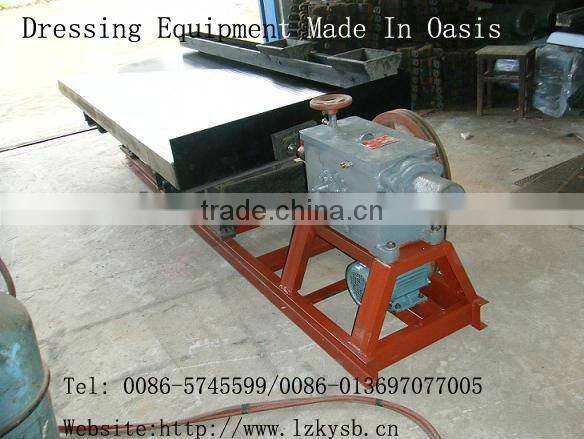

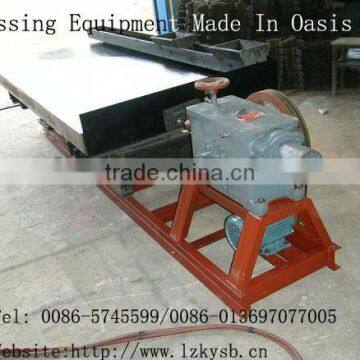

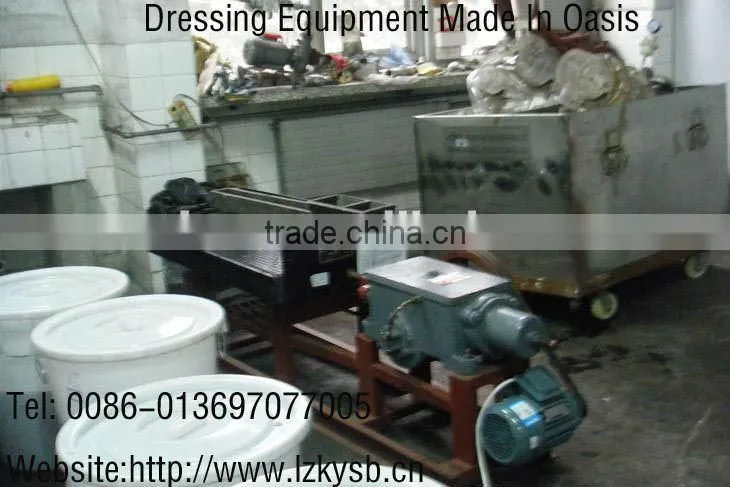

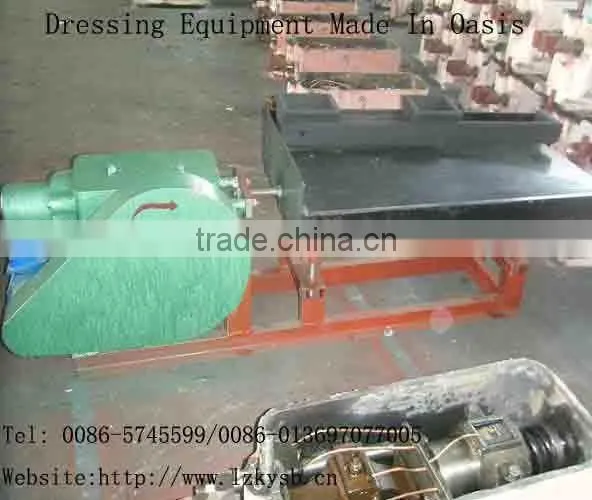

Laboratory LY Shaking Table
1.capacity:0.3-0.8t/h
2.weight:500kg
3.particle size:0.074-2mm
4.steel frame...
LY shaking Table is one of the commonly used equipment to conduct gravity concentration for feasibility and test of ores for labs. and small beneficiation plant. It is applicable for separations of fine-grained and micro-grained rare metal, ferrous and non-ferrous metal, precious metal, coal and other minerals. It can carry out ore concentration operation independently and also can operate in conjunction with jig, crew separator, centrifugal separator and other equipment The device is based on the proportion of selected minerals deviation and asymmetry in the reciprocating movement and tilt of the bed was horizontal flow in layered performance of sorting. Have a different proportion of minerals in the bed surface obvious concentrate high quality, easy operation and adjustment and so on.
Shaker surface structure of ore and mineral mud, steel and aluminum alloy material with a glass.
Model |
Unit | LY2100/1050 | LY1100/500 |
Bed Size | mm | 2100/1050/850 | 1100/500/430 |
Stroke | mm | 12-28 | 9-17 |
Times of stroke | time/min | 210-320 | 280-460 |
Slope | o | 0-8 | 0-10 |
Feed size | ore sand mm | 2 | 2 |
sludge ore mm | 0.074 | 0.074 | |
Feed density | % | 10-30 | 10-30 |
t/h | t/h | 0.2-1 | 0.1-0.5 |
power | kw | 1.1 | 0.55 |
Capacity size | ore sand t/h | 0.4-0.8 | 0.1-0.2 |
sludge ore t/h | 0.3-0.5 | 0.05-0.1 | |
Overall dimensions | mm | 3040/1050/1020 | 1530/500/700 |
Weight | kg | 420 | 150 |
