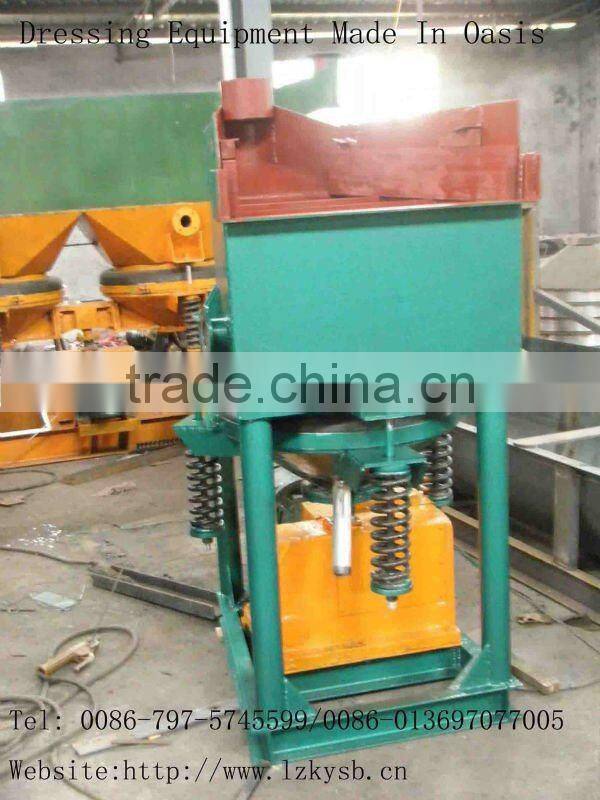

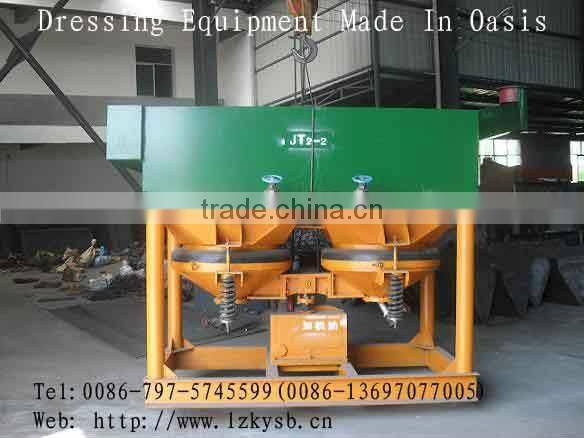

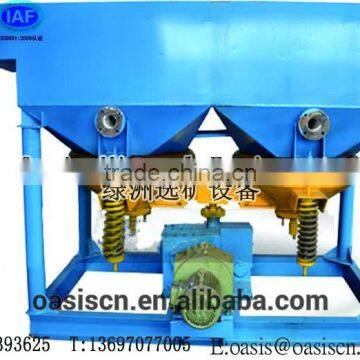

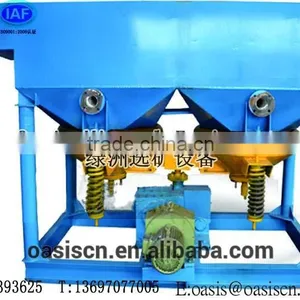

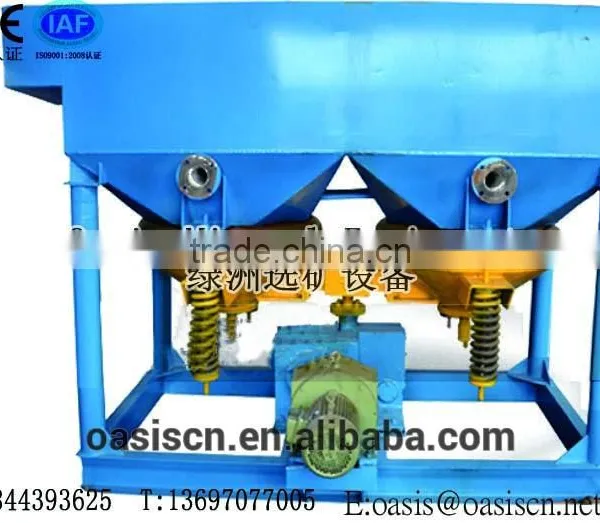

Help CenterLab Diaphragm Jig/heavy Mineral Jig/mineral Processing Jig
Related Products
-
Multifunction Lab Disc Vacuum FilterUS$ 2,000 - 3,000MOQ: 1 Set -
High Adaptability of Lab Disc Vacuum FilterUS$ 2,000 - 3,000MOQ: 1 Set
-
260 Types of Lab Disc Vacuum FilterUS$ 2,000 - 3,000MOQ: 1 Set
-
Image of Lab Disc Vacuum Filter From Oasis Mineral EquipmentUS$ 2,000 - 3,000MOQ: 1 Set
-
DL-5 C 240/120 Disc Vacuum Filter PackingUS$ 2,000 - 3,000MOQ: 1 Set
Specifications
1.easy maintenance2.even final particles
3.high crushing ratio
4.firm structure......
Laboratory Jigger
1.easy maintenance
2.even final particles
3.high crushing ratio
4.firm structure......
The jig for gravity beneficiation, gravity dressing is based on the proportion of ore is different from re-settling velocity in the medium is also different, using the weight difference of mineral upon the completion of a mixture of layered mineral particles sorting work.
The device is suitable for sorting ferrous and nonferrous metals, chemicals, construction and metallurgical aspects of experimental research.

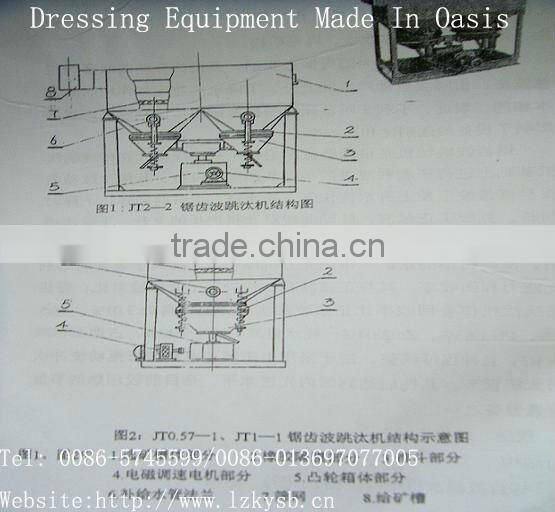

Model | Unit | XCT360/370 | JT0.57-1 |
Stroke | mm | 32 | 8.5-12 |
Times of stroke | time/min | 346 | 80-180 |
Jig chamber | piece | 2 | 1 |
Feed size | mm | 6 | 6 |
Area | m2
| 0.75 | 0.57 |
power | kw | 1.1 | 1.5 |
Water comsumption | L/S | 0.17 | 0.05 |
Capacity size | t/h | 700 | 0.05 |
Overall dimensions | mm | 1160/480/1310 | 1150/780/1530 |
Weight | kg | 175 | 460 |
