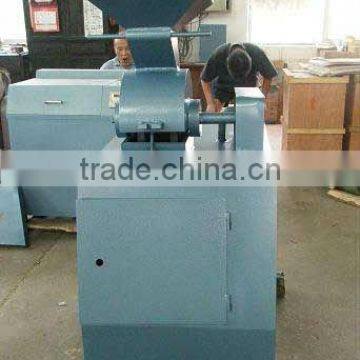

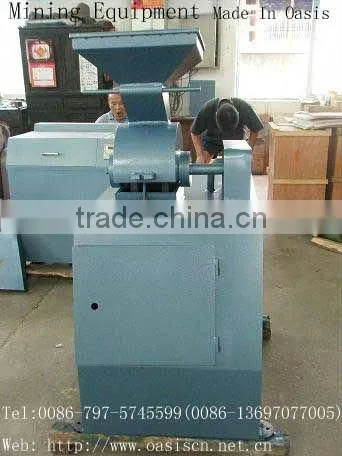

lab hammer crusher

Specifications

1. ISO9001-2000
2. Lab coal
3. For high hardness ore
4. Sample preparation

Typical Application:

Lab hammer crusher is used for crushing coal, coke or medium hard solid material for component analysis continuously or intermittently by quick impact, the crusher is equipped with self-cleaning device.



Especially Suitable For:

The unit is especially suitable for sample preparation work in the laboratory of industrials of coal, electricity, nonferrous metal, metallurgy, chemic, environment-friendly department, scientific research and so on.



Advantages:

1. PLC intelligent control and touch screen operation, it will finish the crusher automatically.

2. The full automatic sample cleaning device insures no material blocking when the moisture content of material is less than 25%.

3. Equipped with failure alarm system and inquiry system.

4. The main parts are made of special material; the service life is 3-5 times of the normal one.

5. Automatic dusting device insures no dust leak out which meets the requirement of environment protection.

6. Full-sealed design meets the requirements of work safety. And the door makes daily maintenance more convenient.

7. It can work normally on the flat ground without fixing any base.



Technical Parameter:

Environment friendly hammer crusher
Model no.	GM/PC-400×200AN	GM/PC-400×300AN
Feeding size(mm)	≤150	≤150
Discharging size (mm)	≤6 or ≤3(Adjustable)	≤6 or ≤13(Adjustable)
Capacity (kg/h)	1200	2000
Total moisture of material	≤25%	≤25%
Motor power(kw)	4	4
Working power (v)	380	380
Overall dimension (mm)	810×700×1250	810×7000×1250
Total weight (kg)	218	300
