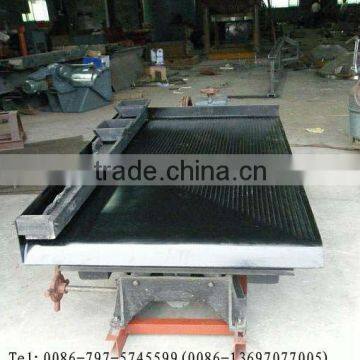

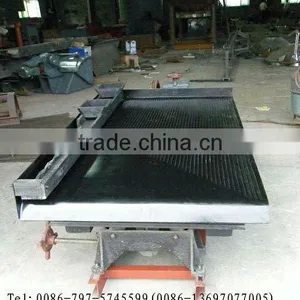

Help CenterTin Ore Concentration Shaking Table /chromite Ore Shaking Table Separator / Manganese Ore Shaking Table Concentrator
Related Products
-
Small Size Jaw Crushers/Disk Crusher/ Small Size Disk Crusher/ Laboratory Disk Crusher/Lab Disc Pulverizer/Disc MillUS$ 1,200 - 1,600MOQ: 1 Set -
Small Size Crusher Equipment /Lab Crusher Equipment/Sealed Jaw Crushers/Laboratory Sealed Jaw Crushers/Lab Mineral PulverizerUS$ 1,200 - 1,600MOQ: 1 Set
-
Sealed Jaw Crushers/Laboratory Sealed Jaw Crushers/Lab Mineral Pulverizer/Laboratory Sealed Double Roll CrushersUS$ 1,200 - 1,600MOQ: 1 Set
-
Small Size Crusher Equipment /Lab Crusher Equipment/Sealed Jaw Crushers/Laboratory Sealed Jaw Crushers/Lab Mineral PulverizerUS$ 1,200 - 1,600MOQ: 1 Set
-
Sealed Jaw Crushers/Laboratory Sealed Jaw Crushers/Lab Mineral Pulverizer/Laboratory Sealed Double Roll CrushersUS$ 1,500 - 1,800MOQ: 1 Set
Specifications
1.easy maintenance2.even final particles
3.high crushing ratio
4.firm structure...
ShiCheng Oasis Mineral Equipment Manufacturing Co., LTD(0086-797-5745599
Good quality, high recovery, different table available, layout solution
Construction
Head Motion The head motion is of rugged construction and requires minimum maintenance. Its internal mechanism is splash lubricated from an integral oil sump.
Decks The decks are built of 16 mm zircon-reinforced fiberglass with fabricated steel frames at the bottom and are easy to clean, requiring little maintenance. The specific gravity of fiberglass made into decks is one third of that of steel, while its strength reaches as high as 70% that of steel. This fiberglass desks also has the characteristic of water-resistance and corrosion-resistance and can hold the shape unchangeable at ±50
Feed and Water Box A wooden feed distributing box with hopper and a long water box are attached to the iron of the deck, giving a very even distribution of feed and water.
Base A choice of ordinary type, groove steel support or big channel steel support is available.
Technical Specification
The OASIS Shaking Table have three distinct deck designs available.
The course ore deck is designed for recovering particles sized from 0.5 mm to 2 mm; the fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm; the slime deck is designed for recovering super extremely fine particles in the range of 0.05 mm to 0.074 mm.
Name |
Unit |
Coarse ore Deck |
Fine sand Deck |
Slime Deck |
|
Deck Size |
Length |
mm |
4450 |
4450 |
4450 |
transmission end width |
mm |
1855 |
1855 |
1855 |
|
Concentrate end width |
mm |
1546 |
1546 |
1546 |
|
Maximum Feeding Size |
mm |
2 |
0.5 |
0.15 |
|
Feeding Amount |
T/H |
30-60 |
10-20 |
15-25 |
|
Feeding Density |
% |
25-30 |
20-25 |
15-25 |
|
Stroke |
mm |
16-22 |
11-16 |
8-16 |
|
Frequency |
f |
45-48 |
18-53 |
50-57 |
|
Water added |
t/d |
80-150 |
30-60 |
10-17 |
|
Transverse slope of Deck |
° |
2°30-4°30 |
1°30-3°30 |
1°-2° |
|
Longitudinal slope of Deck |
° |
1.4 |
0.92 |
------ |
|
Beneficiation Area |
m2 |
7.6 |
7.6 |
7.6 |
|
Cross-section Shape of Deck |
|
rectangular |
saw tooth |
triangle |
|
Motor Power |
KW |
1.1 |
1.1 |
1.1 |
|
Transmission Mechanism |
Eccentric linkage |
||||
