US$ 780 - 1,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Raymond Mill
Capacity(t/h):
0.1-1
Payment & Shipping
Payment Methods:
Port of Shipment:
XiaMen/GuangZhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Raymond Mill
Capacity(t/h) 0.1-1
Place of Origin Jiangxi, China
Brand Name OASIS
Model Number other
Certification ISO9001:2008

Lab Mill Ore EquipmentShiCheng Oasis Mineral Equipment Manufacturing Co., LTD(0086-797-5745599

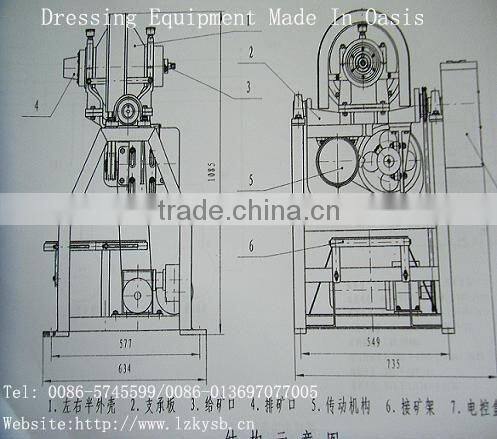

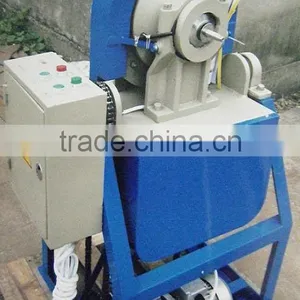

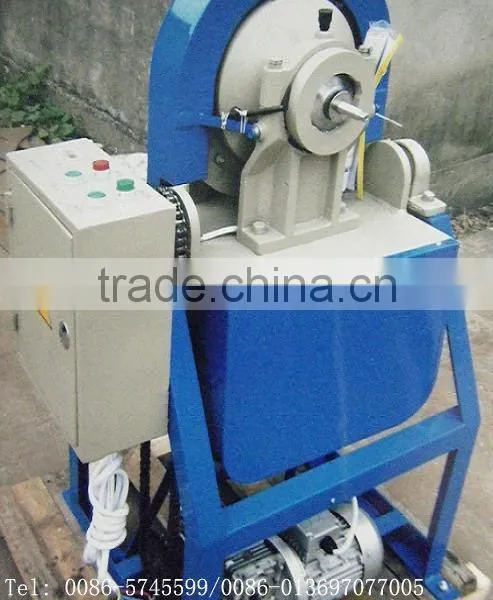

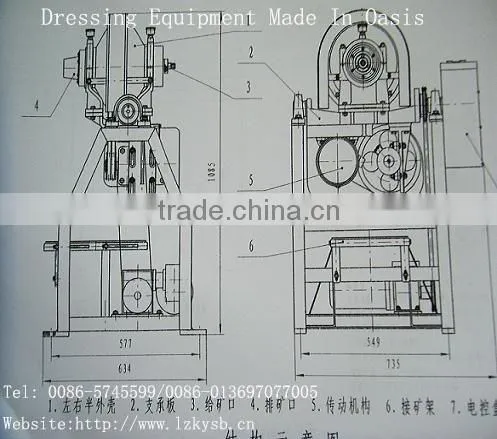

Technical Parameter of laboratory XMQ Cone ball Mill

XMQ Series Cone Ball Mill is a lab.grind equipmet for wet fine grinding of ore.It is applied in labs for processing and fine grinding of artifical placer materials and ores in metallurgical,building material,chemical,light,coal,water conservancy,electric power,agricultural and geological industries.The product is produced by the only enterprise designated by the former Ministry of Geology and Mineral Mineral Resources,in compliance with the Industrial standards

The experiment of grinding equipment, grinding time can be arbitrarily set, but also can be used in dry, wet grinding, using frequency conversion technology, speed range is wide, abrasive, mixing and even everything easy installation without foundation treatment, low noise, no dust pollution, to facilitate the work of cleaning, polishing sealing performance is good, ordinary ore optional experimental study and manual re-sanding of ore used in the rod mill more appropriate.
The grinding equipment, a large amount of feeding, discharging, cylinder power control, without manual, grinding time can be arbitrarily set



Model

Uite

XMQ150/50

XMQ240/90

XMQ350/160

Drum size

mm

150/50

240/90

350/160

Volume

L

1

6.25

21.58

Capacity

g

200

1000

4000

Feed size

mm

3

3

3

Rarticle size

mm

0.074

0.074

0.074

Drum speed

r/min

110-114

94-98

60-64

rower

kw

0.25

0.55

1.1

Overall dimensions

mm

915/530/1160

1050/640/1164

700/575/1190

Weighe

kg

91

170

300
