Small Lab Planetary Ball Mill Machine, Portable Ball Grinding Mills

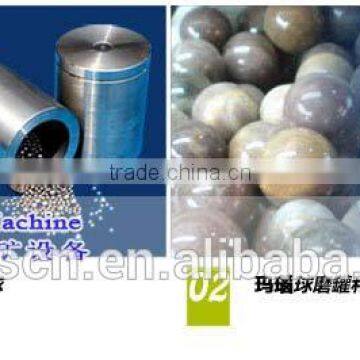

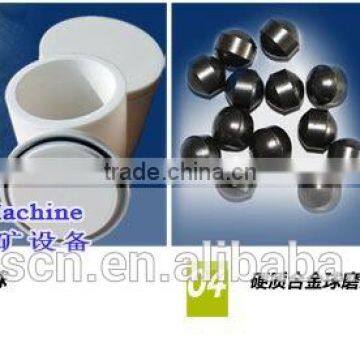

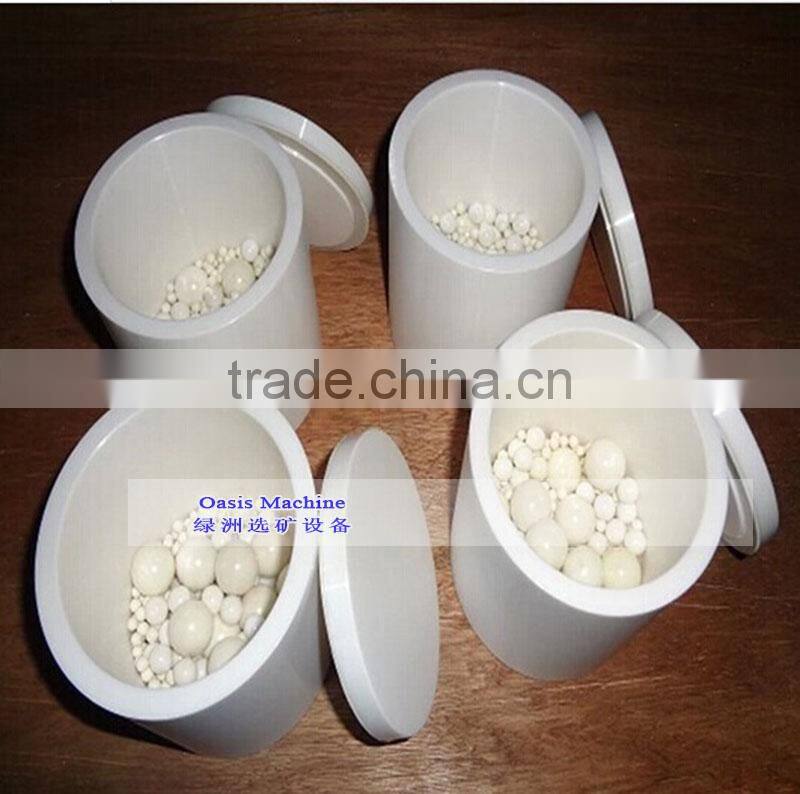

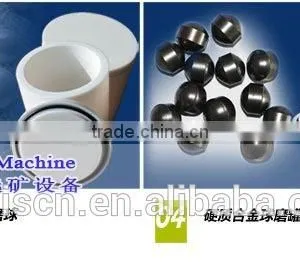

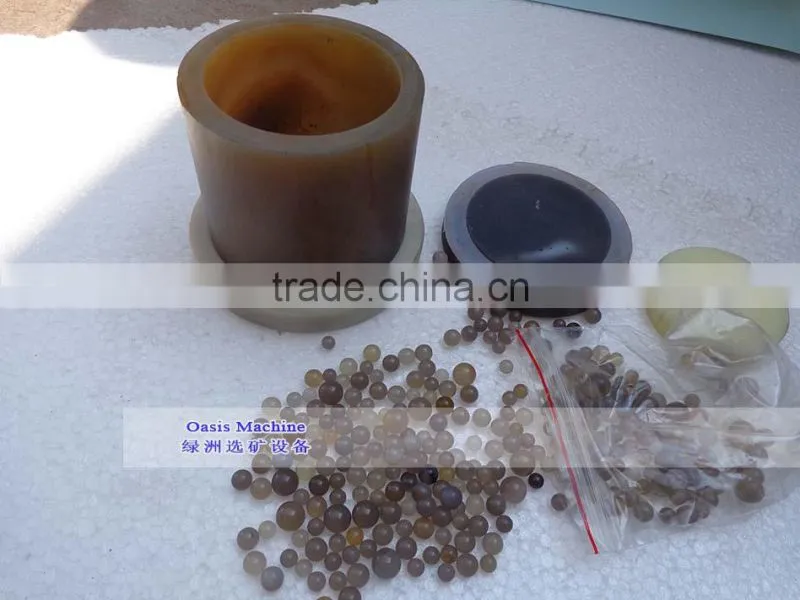

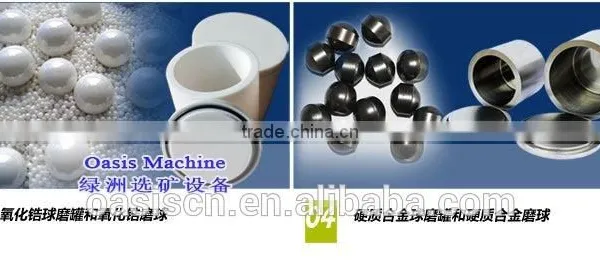

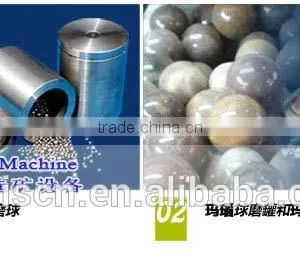

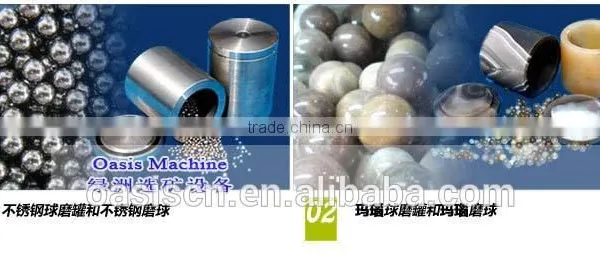

When ball mill works, the grinding media and the materials of the cylinder raise to a certain height.Due to the gravity, they fall down from the tube wall.The materials are crushed under the impact action of the grinding media,also by the friction and shearing action of the grinding media’s rolling and sliding.the feeder size is less 10mm,the output size can arrive 0.1μm(micron),you can setting Milling time Ball mill medium optional:agate,alumina, zirconia,silicon nitride,silicon carbide,stainless steel,high wear-resistant steel,manganese steel,nylon, polyurethane,hard alloy,glass and other special metal
Model |
Volume(L) |
Qty |
Revolution(rpm) |
Rotation(rpm) |
Motor(kw) |
Voltage(v) |
Dimension size(mm) |
Weight(kg) |
LZQM0.4L |
0.05-0.1 |
4 pcs |
40-450 |
60-900 |
0.55 |
220 |
420/580/500 |
50 |
LZQM1L |
0.05-0.25 |
4 pcs |
40-450 |
60-900 |
0.55 |
220 |
480/650/500 |
55 |
LZQM2L |
0.05-0.5 |
4 pcs |
35-335 |
70-670 |
0.75 |
220 |
770/470/570 |
83 |
LZQM4L |
0.25-1 |
4 pcs |
35-335 |
70-670 |
0.75 |
220 |
770/470/570 |
90 |
LZQM6L |
1-1.5 |
4 pcs |
35-335 |
70-670 |
0.75 |
220 |
770/470/570 |
95 |
LZQM8L |
1-2 |
4 pcs |
35-290 |
70-580 |
1.5 |
220 |
900/600/640 |
136 |
LZQM10L |
1-2.5 |
4 pcs |
35-290 |
70-580 |
1.5 |
220 |
900/600/460 |
145 |
LZQM12L |
1-3 |
4 pcs |
35-290 |
70-580 |
1.5 |
220 |
900/600/460 |
150 |
LZQM20L |
2-5 |
4 pcs |
25-215 |
50-430 |
4 |
380 |
1200/760/640 |
430 |
LZQM40L |
5-10 |
4 pcs |
20-195 |
40-390 |
5.5 |
380 |
1400/850/1030 |
665 |
LZQM60L |
10-15 |
4 pcs |
27-174 |
40-260 |
7.5 |
380 |
1600/950/1120 |
865 |
LZQM100L |
20-25 |
4 pcs |
27-160 |
40-240 |
11 |
380 |
1750/1100/1180 |
1080 |
