Home > Products > Lab ball mill > Planetary Ball Mill,Cheapest Small Size Ball Mil,Bench-top Lab Planetary Ball Mill 2L for Sale Wet

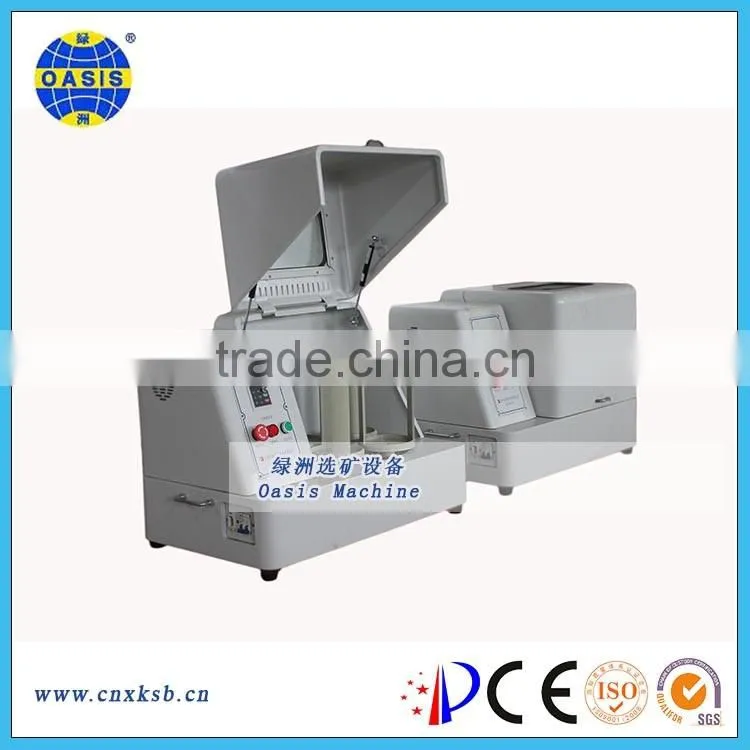

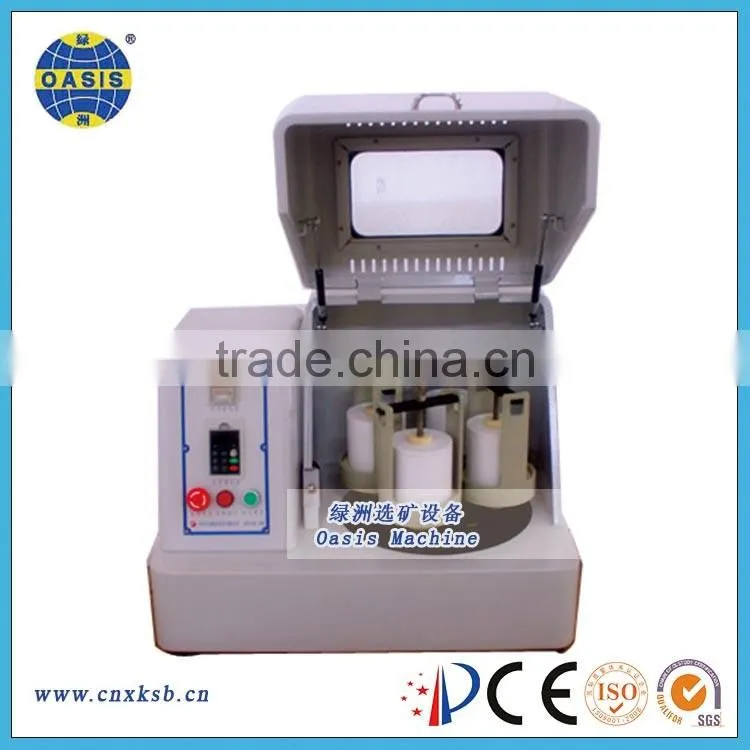

Planetary Ball Mill,Cheapest Small Size Ball Mil,Bench-top Lab Planetary Ball Mill 2L for Sale Wet
- 50 Set / Sets per Month
- xiamen
Product Details
Condition: | New | Type: | Ball Mill | Motor Type: | DC Motor |
Power(W): | refer to specification | Capacity(t/h): | refer to specification | Place of Origin: | Jiangxi, China |
Brand Name: | OASIS | Model Number: | Planetary Ball Mill | Dimension(L*W*H): | refer to specification |
Weight: | refer to specification | Certification: | CE,ISO,SGS | Warranty: | One Year Excluding Wearing Parts |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
When ball mill works, the grinding media and the materials of the cylinder raise to a certain height.Due to the gravity, they fall down from the tube wall.The materials are crushed under the impact action of the grinding media,also by the friction and shearing action of the grinding media’s rolling and sliding.the feeder size is less 10mm,the output size can arrive 0.1μm(micron),you can setting Milling time
Ball mill medium optional:agate,alumina, zirconia,silicon nitride,silicon carbide,stainless steel,high wear-resistant steel,manganese steel,nylon, polyurethane,hard alloy,glass and other special metal
Planetary Ball Mill Technical Specifications
Model | Volume(L) | Qty(pcs) | Revolution(rpm) | Rotation(rpm) | Motor(kw) | Voltage(v) | Dimension size(mm) | Weight(kg) |
LZQM0.4L | 0.05-0.1 | 4 pcs | 40-450 | 60-900 | 0.55 | 220 | 420/580/500 | 50 |
LZQM1L | 0.05-0.25 | 4 pcs | 40-450 | 60-900 | 0.55 | 220 | 480/650/500 | 55 |
LZQM2L | 0.05-0.5 | 4 pcs | 35-335 | 70-670 | 0.75 | 220 | 770/470/570 | 83 |
LZQM4L | 0.25-1 | 4 pcs | 35-335 | 70-670 | 0.75 | 220 | 770/470/570 | 90 |
LZQM6L | 1-1.5 | 4 pcs | 35-335 | 70-670 | 0.75 | 220 | 770/470/570 | 95 |
LZQM8L | 1-2 | 4 pcs | 35-290 | 70-580 | 1.5 | 220 | 900/600/640 | 136 |
LZQM10L | 1-2.5 | 4 pcs | 35-290 | 70-580 | 1.5 | 220 | 900/600/460 | 145 |
LZQM12L | 1-3 | 4 pcs | 35-290 | 70-580 | 1.5 | 220 | 900/600/460 | 150 |
LZQM20L | 2-5 | 4 pcs | 25-215 | 50-430 | 4 | 380 | 1200/760/640 | 430 |
LZQM40L | 5-10 | 4 pcs | 20-195 | 40-390 | 5.5 | 380 | 1400/850/1030 | 665 |
LZQM60L | 10-15 | 4 pcs | 27-174 | 40-260 | 7.5 | 380 | 1600/950/1120 | 865 |
LZQM100L | 20-25 | 4 pcs | 27-160 | 40-240 | 11 | 380 | 1750/1100/1180 | 1080 |
Our Services
♦ Pre-sale services: Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♦ Sale services: Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
♦ After-sale services: Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Company Information
—We have passed ISO9001:2008 and CE and SGS certification
—Our products have obtained the title of "China High Quality Well-Known Products".
—Our products are sold to more than 28 provinces/cities in China and are exported to Russia, Africa, Indonesia ,the Middle East, Philippines, Mongolia, Sudan, Kazakhstan, Brazil, Chile , Nigeria ,Canada and Australia.
—We have won high reputations from all of our clients for our machines and services.
1.Why buy from us?
1)Our factory covering an area of over 36,000 square meters
2)Our company having more than 36 sets of heavy processing equipment and with an annual output of more than 2600 sets of mining machinery
3)Our products are sold to more than 28 provinces/cities in China
4)Our products have exported to Russia,Africa,Indonesia,the Middle East,the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, Chile, Canada , Nigeria, Australia and so on
5)Delivery fast -----Goods be sent out within 5 to 20 days based on order quantity
6)Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long-term business
2.What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.
1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone,What is the general particle size(mm) of the raw ore?
3). What is the handling capacity(tons per hour) you plan to work with?
4).What is the elements of the raw ore? How much percent % of each minerals?
3.Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.
4. How long is the warrenty of your equipments? Does your company supply the spare parts?
The warranty period of Oasis equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.
5. If i need the complete mineral processing line. is Oasis able to help us build it?
