Home > Manufacturing & Processing Machinery > Mining Machinery > Mining Mill > Laboratory Grate Mill/Small Size Grate Mill

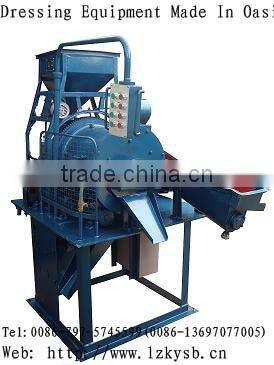

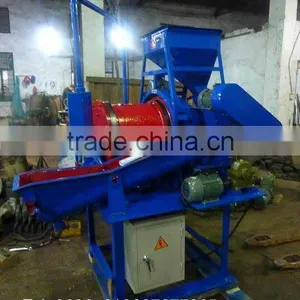

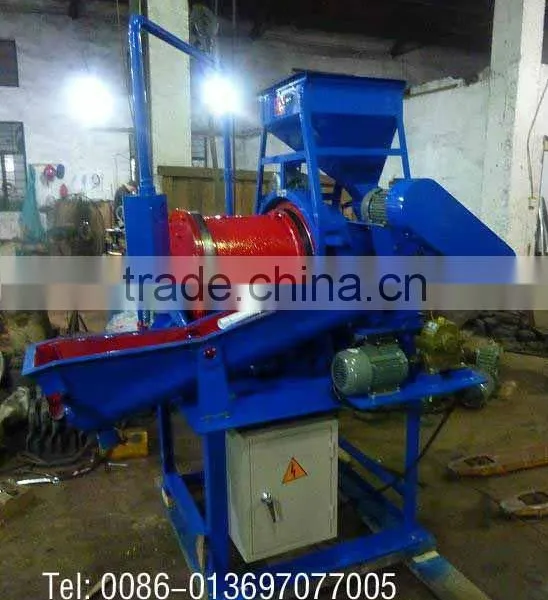

Laboratory Grate Mill/Small Size Grate Mill

Name: Laboratory Grate Mill/Small Size Grate Mill
Brand: OASIS
SKU: 141443596
Availability: InStock

Shicheng Oasis Mineral Equipment Manufacturing Co., Ltd.

Laboratory Grate Mill/Small Size Grate Mill thumbnail-1

Laboratory Grate Mill/Small Size Grate Mill photo-1

US$ 918 - 9,800 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Raymond Mill

Capacity(t/h):

0.1-1

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

XiaMen/GuangZhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Raymond Mill

Capacity(t/h) 0.1-1

Place of Origin Jiangxi, China

Brand Name OASIS

Model Number other

Certification ISO9001:2008

ShiCheng Oasis Mineral Equipment Manufacturing Co., LTD(0086-797-5745599

Grinding and classification unit contains a lattice-type ball joint, spiral classifier, tilting feeder, screw conveyor, can be continuous closed-circuit grinding work

According to different requirements of mineral nature, can choose three different grinding processes, a pre-grinding, inspection classification 2, pre-grading, back to sand in the mill, 3, started grinding

Its technical parameters are as follows:

Co-grinding and classification units
To the ore size				5-10	Mm
Product size				Can be controlled grinding to 95% -0.074	Mm
Capacity				45-90	Kg / h
Equipment total power				2.12	KW
Size				1630/1260/1730	Mm
Total weight				820	Kg
420/450 lattice-type ball mill
Shell Size				420/450	Mm
Cylinder volume				60	L
Cylinder speed				57	Rev / min
Weight of ball	20-25 types of steel ball			10	Kg
	25-30 types of steel ball			20	Kg
	3 30-35 types of steel ball			30	Kg
	35-40 types of steel ball			40	Kg
To the ore size				5-10	Mm
Product size				Can be controlled grinding to 95% -0.074	Mm
Capacity				45-90	Kg / h
Power				1.5	KW
150/1200 Spiral Classifier
Screw Size				150/1200	Mm
Spillway width				240	Mm
Angle adjustment range				10-30	Degree
Screw Speed				18,23,30	Rev / min
Sand back the amount of				500	Kg / h
Overflow traffic				260	Kg / h
Power				0.25	KW
35L Swing feeder
Ore storage capacity				35	L
Oscillation frequency				19	Rev / min
To mine the speed				6-200	Kg / h
Electric Machine		Power		0.12	KW
		Speed		1400	Rev / min
90/600 screw conveyor
Spiral Specifications			Diameter	90	Mm
			Length	600	Mm
Screw Speed				23	Rev / min
Power				0.25	KW
