Specifications
1 Concentrating gold shaking table2 New style,
3 New technology
4 applyed in Gold, Copper, Manganese, rare metals &noble

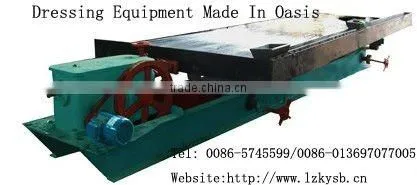

shaking table is one of the main equipments of gravity concentration. It is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore. Also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.022 millimeters.
The characteristics of shaking table are high enrichment ratio, high efficiency of beneficiation, easy operation and convenient stroke adjustment. Changing the horizontal slope and stroke length, it can still maintain bed running in balance. Spring is placed in the box, so its structure is compact. Also it can eventually get the concentrates and tailings
Features
High recovery ratio
High concentration ratio
Easy installation Simple operation
Deck constructed of fiber glass
Three different decks to choose
Long working life
Adjustable stroke length and speed
Technical specifications
Model Performance |
LS |
LY |
LY |
LY |
|
|
Screen Size(mm)
|
4500×1850×1560 |
3000×1620×1100 |
2100×1050×850 |
1100×500×430 |
|
Stroke length |
mm |
10-30 |
6-30 |
12-28 |
9-17 |
Frequency |
T/min |
240-420 |
210-320 |
250-450 |
280-460 |
Horizontal slope |
Degree |
0-5 |
0-10 |
0-8 |
0-10 |
|
Feeding Range (mm) |
Sand ore |
-2 |
-2 |
-2 |
-2 |
slime |
-0.074 |
-0.1 |
-0.074 |
-0.074 |
|
Feeding Density |
% |
10-30 |
- |
10-30 |
10-30 |
|
Capacity(t/h)
|
Sand ore |
0.5-1.8 |
0.7-1.5 |
0.4-0.8 |
0.1-0.2 |
slime |
0.5-0.8 |
0.4-1 |
0.3-0.5 |
0.05-0.1 |
|
|
Water consumption
|
t/h |
0.4-0.7 |
0.3-1.5 |
0.2-1 |
0.1-0.5 |
|
Motor
|
model |
Y70L-4 |
Y100L-4 |
Y90L-4 |
Y80L-4 |
|
Power kw |
1.1 |
1.1 |
1.1 |
0.55 |
|
|
Rotation speed r/min |
1400 |
1400 |
1400 |
1400 |
|
V-belt (mm) |
A-2000 |
A-1033 |
B-2007 |
A-1245 |
|
|
Size(mm) Long× wider × higher |
5600×1850×860 |
4075×1320×780 |
3040×1050×1020 |
1530×500×800 |
|
| |||||
