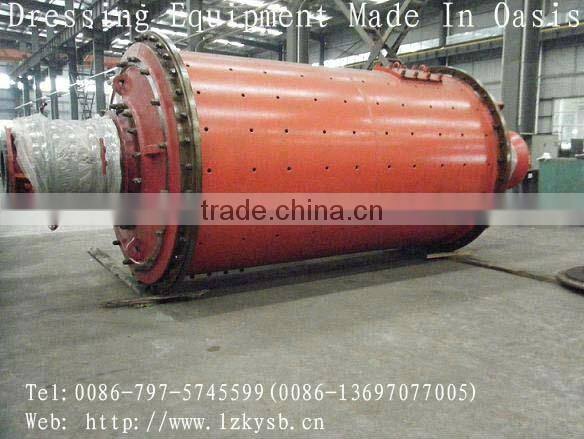

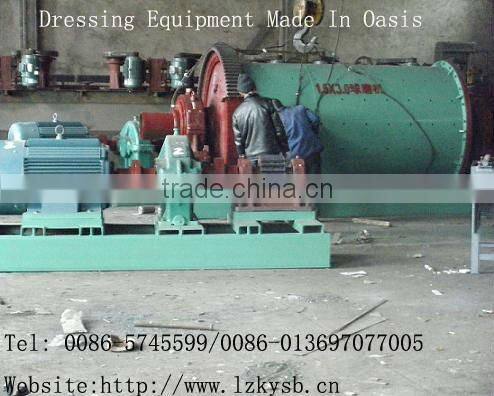

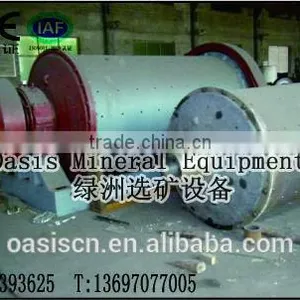

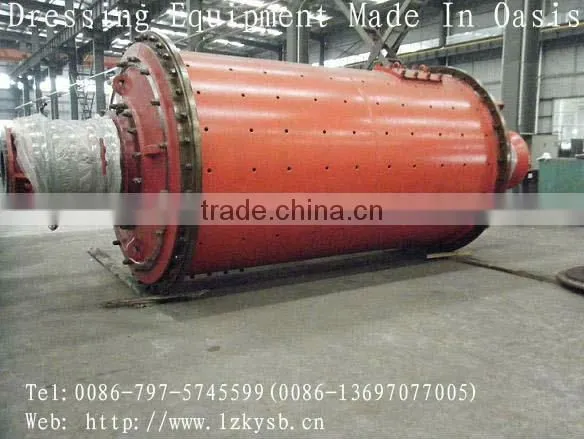

Energy-saving ball mill

Specifications

Ball Mill
1.Both dry and wet grinding types available
2. Longer linning service life
3. Low energy consuming...

MQZ Ball Mill



The device is suitable for mineral processing, chemical, coal, cement, refractory materials, grinding and other departments to do

The series MQZ-type ball mill is a technical innovation

The characters of the tube energy-saving ball mill

The discharging part is designed as a cone type ,which increase the capacity and enforces the material at the discharging end to be reclassified, and the balls are reclassified too, that is the nearer to the end, the smaller are the balls ,increasing repeated milling effect.

Model	Unit	MQZ0909	MQZ0918	MQZ1224	MQZ1228	MQZ1530	MQZ1836	MQZ2442
Diameter Shell	mm	900	900	1200	1200	1500	1800	2400
Length Shell	mm	900	1800	2400	2400	3000	3600	4200
Revolution Shell	r/min	37.1	37.1	31.7	31.7	30.9	26.8	23
Effective Volume	m3	0.45	0.9	2.2	2.5	5	12.6	16.2
Load of ball	t	0.9	1.5	3.96	4.24	8.6	23.5	31
Capacity	t/h	0.24-2.14	0.22-1.07	0.26-6.15	0.3-6.5	2.8-9	9-44	11-119
Power	kw	7.5	11	45	55	80	180	320
Weight	t	4.7	6.1	11.7	12.7	17.7	43.7	69
