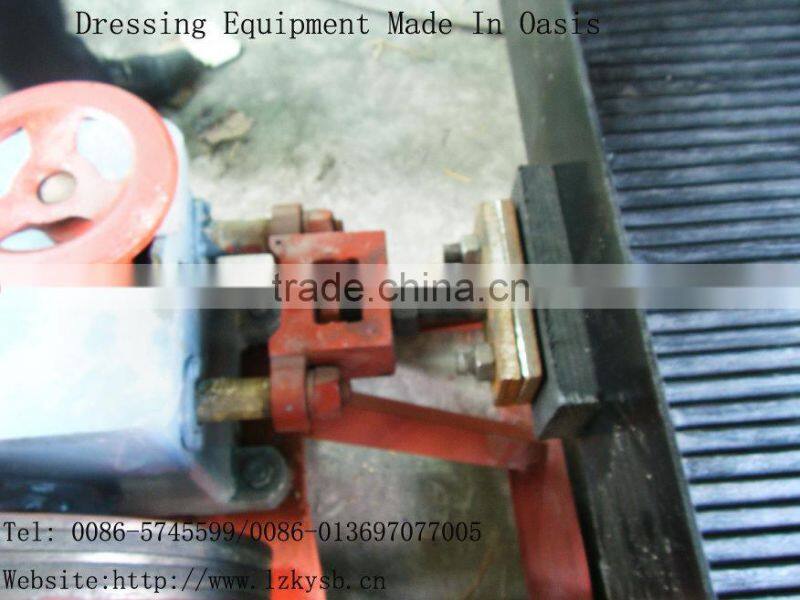

LY Shaking Table / LY Table Concentrator
- XIAMEN/GUANGZHOU
- T/T
You May Like
Product Details
| Condition | New | Type | Other, Gravity Upgrading | |
| Place of Origin | Jiangxi, China | Brand Name | OASIS | |
| Model Number | LS/LY/6S | Certification | ISO9001:2008 |
Product Description
ShiCheng Oasis Mineral Equipment Manufacturing Co., LTD(0086-797-5745599
Shaking table , ore shaking table is a mine selecting machine for fine materials working by gravity. It is widely used in selection of Tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal.
Shaking table , ore shaking table is one of the main mineral processing equipment; it is widely used in sorting tungsten, tin, tantalum and niobium and other rare metals and precious metal ores. It can also be used for sorting iron, manganese ore stone and coal. When dealing with tungsten, tin and other minerals, its effective recovery size is 2-0.02 mm.
The Features and Benefits of shaking table
Shaking Table features in good high-grade ore sorting rate, high efficient, easy operation and maintenance, easy stroke adjustment. When change the horizontal slope and stroke, the shaker can still maintain running balance, springs installed compact and stable inside, the final ore concentrate and the final .
Parameters:
Name | Unit | Grit concentrating table | Fine sand concentrating table | Sludge concentrating table | |
Dimensions | Length | MM | 4450 | 4450 | 4450 |
Driving part width | MM | 1855 | 1855 | 1855 | |
Concentrate part width | MM | 1546 | 1546 | 1546 | |
Max. feeding size | MM | 2 | 0.5 | 0.15 | |
Feeding amount | T/d | 30-60 | 10-20 | 15-25 | |
Feeding thickness | % | 25-30 | 20-25 | 15-25 | |
Journey | Mm | 16-22 | 11-16 | 8-16 | |
Frequency | F | 15-48 | 48-53 | 50-57 | |
Water quantity | T/d | 80-150 | 30-60 | 10-17 | |
Horizontal obliquity | Degree | 2.5-4.5 | 1.5-3.5 | 1-2 | |
Portrait obliquity | % | 1.4 | 0.92 | ----- | |
Table board corner | Degree | 32-42 | 40 | 42 | |
Concentrating square | ---- | 7.6 | 7.6 | 7.6 | |
Table board length ratio | ---- | 2.6 | 2.6 | 2.6 | |
Motor power | KW | 1.1 | 1.1 | 1.1 | |
