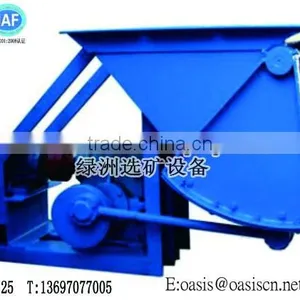

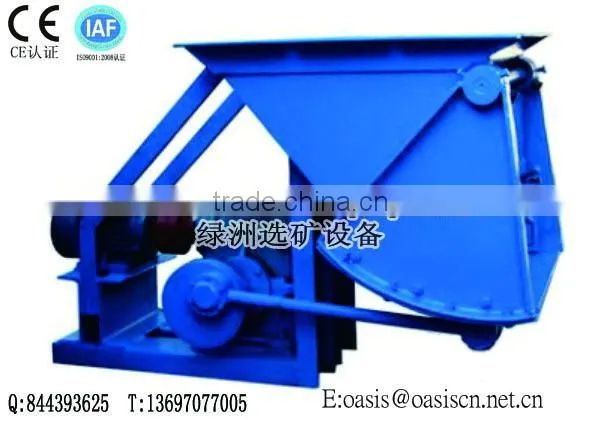

2011 vibrating feeder for mining

Specifications

1.Simple structure
2.low cost
3.easy to install and operate
4.virtually no maintenance

Our feeder series have two types: vibrating feeder and linear feeder.
Vibrating feeder series have two engines. Users can adjust vibrating frequency of feedr freely so as to completely control feeding speed of stone material and ensure smooth operation of production line. Linear feeder has features of stable vibration,reliable operation and long service life, can feed crushing machine continuously and has primary sieving on materials.
It is widely used in crushing and screening plants of mining,construction materials,silicate and chemical industry.

Vibrating Feeder Technical Data

Model	Max input size (mm)	Capacity (t/h)	Motor power  (kw)	Installaition Slope	Weight (kg)	Size of Funnel (mm)	Overall Dimension (L×W×H) (mm)
GZD-180×80	300	30-80	2×1.5	0-10	0.8	1800×800	2200×1100×800
GZD-200×120	300	80-500	2×2.2	0-10	0.9	2000×1200	2000×1200×855
GZD-300×90	300	40-100	2×2.2	0-10	1.5	3000×900	3050×1430×1550
ZSW-380×96	500	90-200	11	0°	3.98	3800×960	3882×2224×2121
ZSW-420×110	580	150-350	15	0°	5.0	4200×1100	4250×2500×1365
ZSW-490×110	580	180-380	15	0°	5.32	4900×1100	4957×2500×1365
ZSW-490×130	750	250-450	22	0°	5.9	4900×1300	4957×2580×2083
ZSW-600×130	750	450-800	50	0°	7.8	6000×1300	6082×2580×2083
ZSW-600×150	800	600-1000	30	0°	8.67	6000×1500	6082×2660×2400
