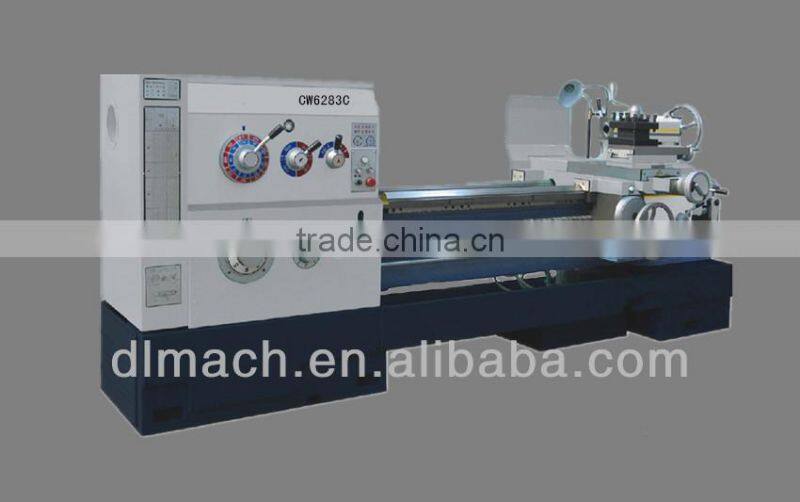

Hot Sale High Precision CW6283C Universal Horizontal Lathe
Introduction
This series horizontal lathe has good reputation in this line and populated by customers in domestic and abroad. It including: CW6263C, CW6273C,CW6283C, CW6293C, ect. Distance between centers are 750mm,1000mm,1500mm,2000mm,3000mm,4500mm,6000mm.
Technical Data:
| item | unit | CW6263C | CW6273C | CW6283C | CW6293C | |
| Swing over bed | mm | 630 | 730 | 830 | 930 | |
| Swing in gap | mm | 800 | 900 | 1000 | 1100 | |
| Swing over cross slide | mm | 350 | 450 | 550 | 650 | |
| Distance between centers | mm | 750,100,015,002,000,000,000,000,000 | ||||
| Length in gap from face plate | mm | 300 | ||||
| Spindle nose | Cll or D11 | |||||
| Spindle bore | mm | 105,130 | ||||
| Spindle speeds | rpm/steps | 10—800/18 | ||||
| Cross slidle travel | mm | 480 | ||||
| Top rest travel | mm | 225 | ||||
| Rapid traverse | mm/min | Y:3200, X:1900 | ||||
| Quill diameter | mm | 90 | ||||
| Quill travel | mm | 260 | ||||
| Quill taper | MT5 | |||||
| Bed width | mm | 550 | ||||
| Metric threads | mm/kinds | 1—240/53 | ||||
| Inch threads | tpi/kinds | 30—2/31 | ||||
| Module threads | mm/kinds | 0.25—60/46 | ||||
| Diametral pitch threads | Lpi/kinds | 60—0.5/47 | ||||
| Main motor power | kw | 11 | ||||
| Packing size | Length | mm | 3460,3390,3795,4330 | |||
| Width | mm | 1400 | ||||
| Heigth | mm | 2000 | ||||
| Gross weight | Kg | 4250 | 4450 | 4650 | 4900 | |
| 4500 | 4700 | 5100 | 5300 | |||
| 5000 | 5200 | 5600 | 5800 | |||
| 5500 | 5700 | 6100 | 6300 | |||
| 6200 | 6400 | 6600 | 6900 | |||
| 7300 | 7500 | 7600 | 7900 | |||
| 8300 | 8500 | 8600 | 8700 | |||
1 STANDARDACCESSORIES:
3—JAW CHUCK/Φ325&FLANGE,DEAD CENTERS,REDUCTION SLEEVE,MAINTENANCE KIT,FOUNDATTON BOLTS/NUTS,LEVEL BLOCKS,MACHINE TOOL MANUAL. [CENTERS DISTANCE IS MORE THAN 2000MM/(INCLUDE 2000MM)FOR(Φ200STEADY REST Φ20—140 FOLLOW YEST]
OPTIONAL ACCESSORIES:
4—JAW CHUCK&FLANGE,FACE PLATE,DRIVE PLATE,STEADY REST(LESS THAN 2000MM),FOLLOW REST(LESS THAN2000MM),Φ130 SPINDLE BORE,ELECTRIC TURRET,ELECTRIC QUILL,TAPER TURNING ATTACHMENT.

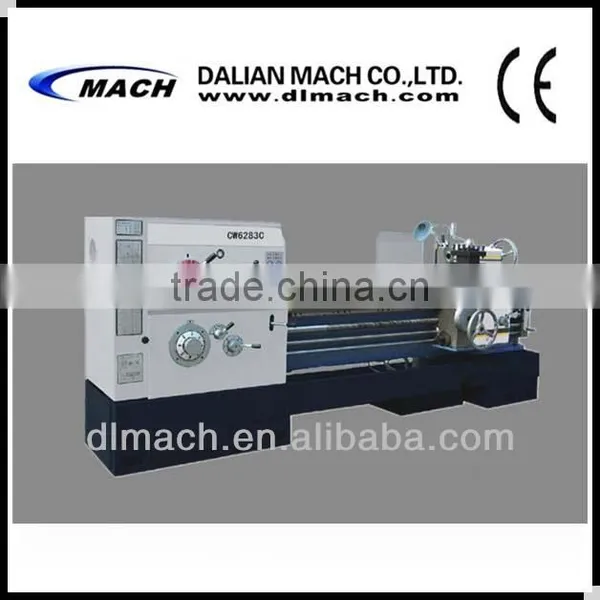

Product Photos:
About our company:
Our main products are 63C series horizontal lathe machines. Products not only are sold in the domestic markets, but also exported to more than 40 countries and regions such as the United States, Germany, Italy, South Africa, Indonesia, Pakistan, Vietnam, and Saudi Arabia. In 2002, the company passed the certification of ISO9001: 2000 Quality Managment System. In 2008, CW series obtained “CE” certification. , thanks to excellent performance, high quality, and superior after-sales services, has been well-acclaimed by customers at home and abroad.
...
