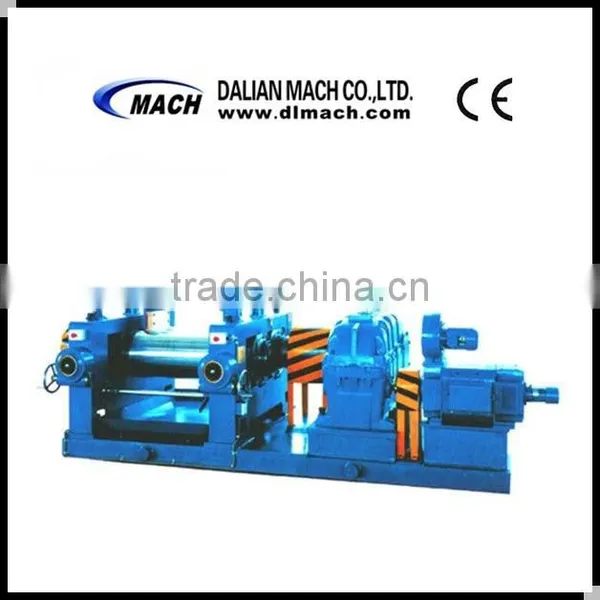

Two Roll Rubber Open Mixing Mill Model: XK400 & XK450
Feature
a. The roll is made of chilled cast iron of vanadium and titanium alloy, so the surface is hard and wearable ; the internal processing can make the temperature of the roll surface well-proportioned.
b. This machine has overload protection devices, and the major components cannot be damaged because of over loading.
c. This machine is equipped with emergency braking device. When an emergent accident happens , draw the pull rod, and then the machine will stop at once, it is safe and reliable .
d. The transmission system adopts eigher hard tooth flank dual axis reducer or NGW hard tooth flank planet reducer, which has compact strcture, low noise and high efficiency.
e. The base of the machine is a complete frame , so It's very convenient for installation.
Specification:
Item | XK- 400 | XK-450 | |
diameter of rolls | 400 | 450 | |
working length of rolls | 1000mm | 1200mm | |
working speed of front roll | 19.3 meter/min | 23.1 meter/min | |
friction ratio of rolls | 1:1.27 | 1:1.27 | |
max gap | 10mm | 10mm | |
nip regulating way | manual | manual | |
bath capacity | 25-30kgs | 30-50kgs | |
motor power | 45kw | 55kw | |
motor revolution | 740r/min | 980r/min | |
reducer | NGW hard tooth flank planet reducer | ||
reduction ratio | 38 | 47.2 | |
overall dimensions | 4490x1770x1750mm | 5570x1900x1750mm | |
weight | 9,000kgs | 11500kgs | |
|
|
|
|
We can supply other models: XK 250, XK 360, XK560,etc.
We can supply Two Roll Rubber Open Mill in Nylon Bushing, Brass Bushing, Rolling Bearing Type for your selection.
Our factory was founded in 1942 and It's one of biggest and specialized manufactuer of produing rubber mills, kneader, rubber internal mixers, rubber cracker,etc in China.
We mainly export rubber mills to Indonesia, Malaysia, Thailand, Srilanka, Vietnam, Brazil, Egypt and other countries.
About our company:
DALIAN MACH CO.,LTD specialize in manufacturing and exporting all kinds of machinery. Such as: Metal Processing Machine, Paper Processing Machine, Packaging Machine, Rubber Machine, Pharmaceutical Machine, Daily Product Making Machine, Forklift, etc. With more than twenty-year experience, Our professional team will provide best service for you.
We have a group of professional engineers in charge of technology, manufacturing, installing, testing. So we can guarantee that our machines will be runned on good performance based on high quality.
Our products have been exported to more than 60 countries. Such as: Canada, U.S.A, Italy, France, Guatemala, Brazil, Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, U.A.E, Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya, Ghana,etc.
We sincerely hope to establish long-term cooperative relationship with you and become a true partner who is always available when you need our service.
.
....
