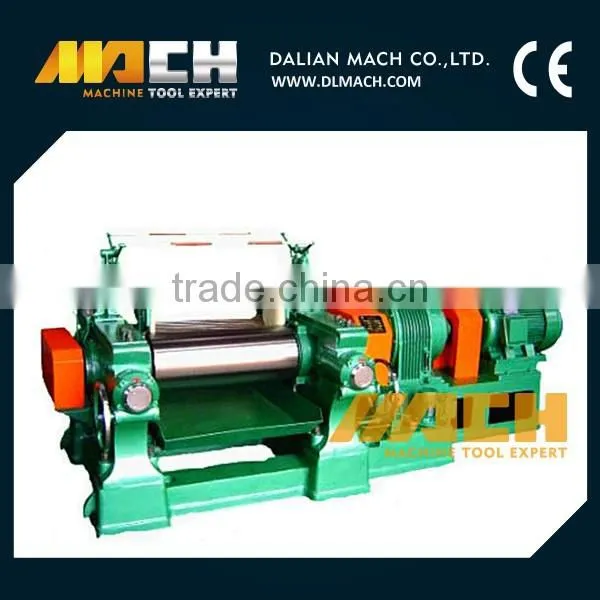

Waste Tyre Recycling Machine XKP-560G
1. STRUCTURAL FEATURES:
The working surface of roll is made of FORGED STEEL with HARD ALLOY. Only the back roll is fluted. The surface is rigid and anti-wear. The internal cavity is processed to ensure a well-proportioned temperature on the roll face.
The machine is equipped with an overload protection device to prevent the major components from being damaged due to overloading.
The machine is also equipped with an emergency device. When an emergent accident happens, just draw the pull-rod, and the machine will stop immediately. It is safe and reliable.
The transmission system may adopt either a NGW planetary hardened-gear speed reducer or an inverted-Y speed reducer, both of which are compactly structured with features of low noise, high efficiency and a long service life.
The base of the machine is a complete framework or a combined framework of cast piece, which is convenient for installation.
2. APPLICATION:
The machine is applicable for breaking scrap rubber and virgin rubber.
3. MAIN SPECIFICATION
Model | XKP-450G | XKP-560G | |
Working Diameter of Front Roll | 450mm | 510mm | |
Working Diameter of Back Roll | 450mm | 560mm | |
Working Length of F. & B. Rolls | 800mm | 800mm | |
1000 | 1000 | ||
Linear Speed of Front Roll | 23 meter/min | 22.3 meter/min | |
Linear Speed Ratio of F. & B. Rolls | 1:1.94 | 1:1.96 | |
Maximum Nip | 10mm | 15mm | |
Main Motor Model | Y280M-6 | Y280M-6 | |
Motor Power | 55 kw | 90 kw | |
Motor Rotating Speed | 980rpm | 980rpm | |
Speed Reducer | NGW Planetary Hardened-gear Speed Reducer | ||
Overall Dimensions | Length | 5000mm | 5500mm |
Width | 1900mm | 5500 2330mm | |
High | 1750mm | 1780mm | |
Weight | 10700kgs | 20000kgs | |
About our company:
DALIAN MACH CO.,LTD specialize in manufacturing and exporting all kinds of machinery. Such as: Metal Processing Machine, Paper Processing Machine, Packaging Machine, Rubber Machine, Pharmaceutical Machine, Daily Product Making Machine, Forklift, etc. With more than twenty-year experience, Our professional team will provide best service for you.
We have a group of professional engineers in charge of technology, manufacturing, installing, testing. So we can guarantee that our machines will be runned on good performance based on high quality.
Our products have been exported to more than 60 countries. Such as: Canada, U.S.A, Italy, France, Guatemala, Brazil, Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, U.A.E, Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya, Ghana,etc.
We sincerely hope to establish long-term cooperative relationship with you and become a true partner who is always available when you need our service.
....
