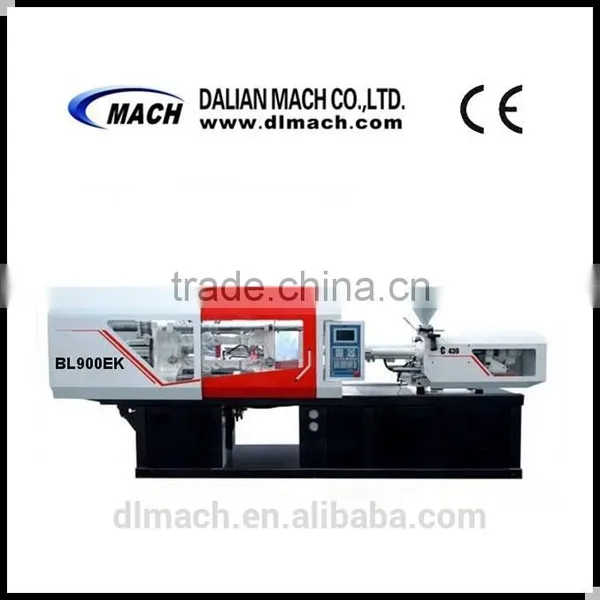

BL900EK Sevro Saving Energy Plastic Injection Molding Machine
Feature Specifications
Machine Type | BL900EK | |||||
| International specification | UNIT | 7200/9000 | |||
Injection Unit | Screw diameter |
| A | B | C | D |
mm | 90 | 100 | 110 | 120 | ||
Screw ratio |
| 23 | 21 | 19 | 17.5 | |
Theoretical injection capacity | cm3 | 3470 | 4285 | 5180 | 6165 | |
Shot weight(PS) | g | 3190 | 3940 | 4770 | 5675 | |
oz | 112.5 | 138.9 | 168.1 | 200.0 | ||
Injection rate | cm3/s | 608 | 750 | 908 | 1080 | |
Injection pressure | Mpa | 208 | 168 | 139 | 117 | |
Injection stroke | mm | 545 | ||||
Max. Screw speed | r/min | 135 | ||||
Clamping Unit | Clamping force | Ton | 918 | |||
kN | 9000 | |||||
Opening stroke | mm | 1150 | ||||
Space between tie bar | mm×mm | 1160×1060 | ||||
Min. mould height | mm | 480 | ||||
Max. mould height | mm | 1000 | ||||
Max. distance Platen | mm | 2150 | ||||
Ejector stroke | mm | 300 | ||||
Ejector force forward | kN | 227 | ||||
Ejector force back | kN | 151 | ||||
Number of ejector bar | PC | 21 | ||||
Electric Power | Sys. Pressure | MPa | 16 | |||
Pump Motor | kW | 34+51 | ||||
Heater power | kW | 47.2 | ||||
Number of temp. control zones |
| 5+1 | ||||
Others | Oil tank capacity | L | 1200 | |||
Machine dimensions(L×W×H) | m×m×m | 10.9×2.75×2.9 | ||||
Machine weight | Ton | 40 | ||||
