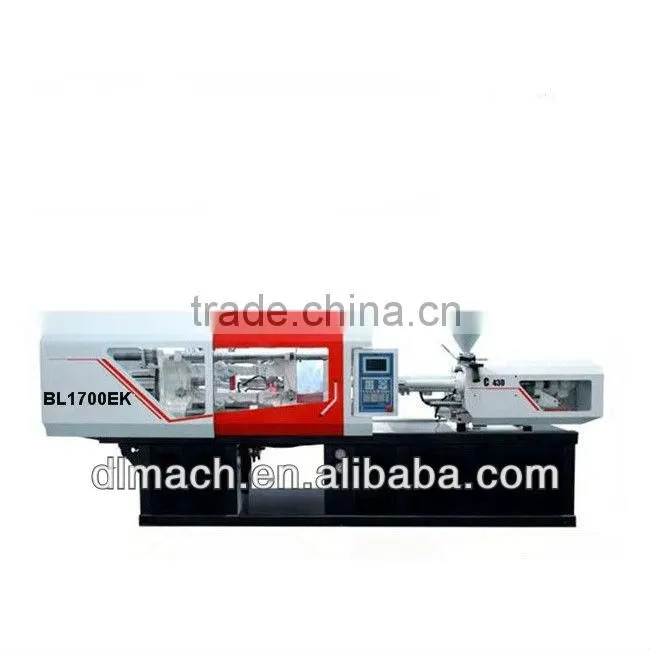

BL1700EK Sevro Saving Energy Plastic Injection Molding Machine
Feature Specifications
Machine Type | BL1700EK | |||||
| International specification | UNIT | 18500/17000 | |||
Injection Unit | Screw diameter |
| A | B | C | D |
mm | 130 | 140 | 150 | 160 | ||
Screw ratio |
| 23 | 21 | 20 | 18.5 | |
Theoretical injection capacity | cm3 | 9630 | 11165 | 12815 | 14580 | |
Shot weight(PS) | g | 8855 | 10270 | 11790 | 13415 | |
oz | 312.3 | 362.2 | 415.8 | 473.0 | ||
|
|
| ||||
Injection rate | CM3/s | 1093 | 1268 | 1455 | 1656 | |
Injection pressure | Mpa | 193 | 166 | 145 | 127 | |
Injection stroke | mm | 725 | ||||
Max. Screw speed | r/min | 79 | ||||
Clamping Unit | Clamping force | Ton | 1735 | |||
kN | 17000 | |||||
Opening stroke | mm | 1680 | ||||
Space between tie bar | mm×mm | 1620×1420 | ||||
Min. mould height | mm | 750 | ||||
Max. mould height | mm | 1550 | ||||
Max. distance Platen | mm | 3230 | ||||
Ejector stroke | mm | 400 | ||||
Ejector force forward | kN | 332 | ||||
Ejector force back | kN | 256 | ||||
Number of ejector bar | PC | 29 | ||||
Electric Power | Sys. Pressure | MPa | 16 | |||
Pump Motor | kW | 51+51+51 | ||||
Heater power | kW | 84.2 | ||||
Number of temp. control zones |
| 6+1 | ||||
Others | Oil tank capacity | L | 2250 | |||
Machine dimensions(L×W×H) | m×m×m | 14.2×3.6×4.3 | ||||
Machine weight | Ton | 105 | ||||
