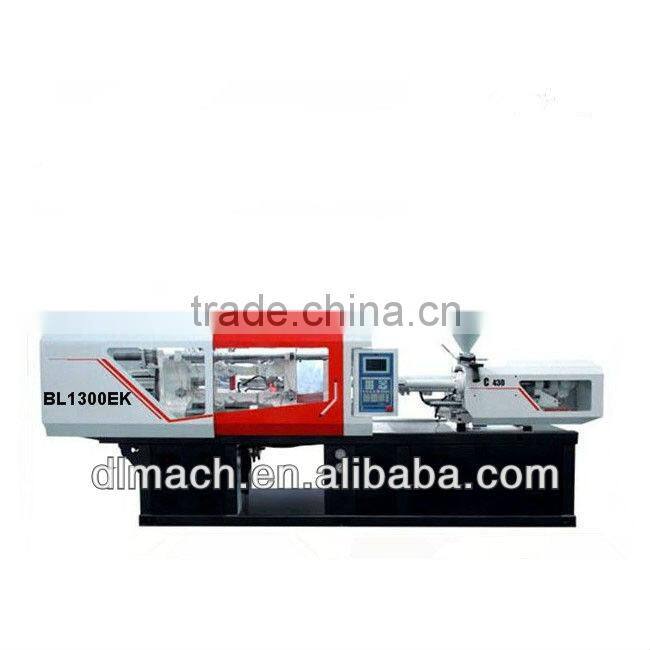

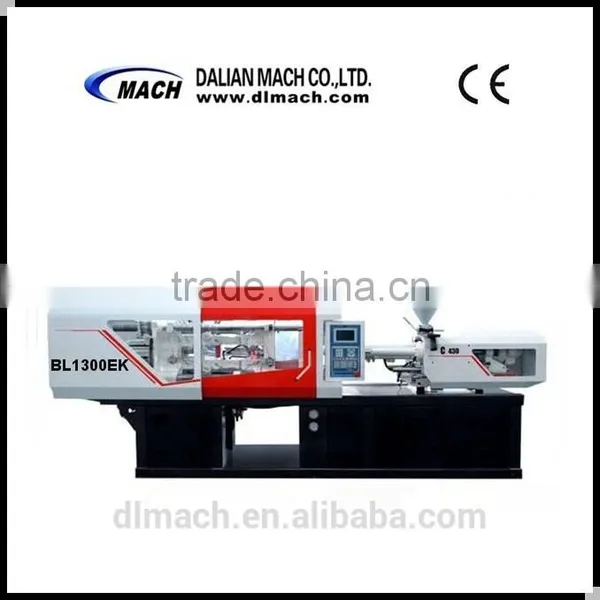

BL1300EK Sevro Saving Energy Plastic Injection Molding Machine
Feature Specifications:
Machine Type | BL1300EK | |||||
| International specification | UNIT | 12000/13000 | |||
Injection Unit | Screw diameter |
| A | B | C | D |
mm | 110 | 120 | 130 | 140 | ||
Screw ratio |
| 23 | 21 | 19.5 | 18 | |
Theoretical injection capacity | cm3 | 6085 | 7240 | 8500 | 9900 | |
Shot weight(PS) | g | 5600 | 6660 | 7820 | 9065 | |
oz | 197.4 | 234.9 | 275.7 | 319.7 | ||
Injection rate | g/s | 854 | 1016 | 1193 | 1384 | |
Injection pressure | Mpa | 197 | 166 | 141 | 122 | |
Injection stroke | mm | 640 | ||||
Max. Screw speed | r/min | 105 | ||||
Clamping Unit | Clamping force | Ton | 1327 | |||
kN | 13000 | |||||
Opening stroke | mm | 1450 | ||||
Space between tie bar | mm×mm | 1420×1220 | ||||
Min. mould height | mm | 580 | ||||
Max. mould height | mm | 1300 | ||||
Max. distance Platen | mm | 2750 | ||||
Ejector stroke | mm | 350 | ||||
Ejector force forward | kN | 227 | ||||
Ejector force back | kN | 151 | ||||
Number of ejector bar | PC | 29 | ||||
Electric Power | Sys. Pressure | MPa | 16 | |||
Pump Motor | kW | 34+34+34 | ||||
Heater power | kW | 60.8 | ||||
Number of temp. control zones |
| 6+1 | ||||
Others | Oil tank capacity | L | 1650 | |||
Machine dimensions(L×W×H) | m×m×m | 12.3×3.3×4.15 | ||||
Machine weight | Ton | 65 | ||||
About Our Company:
Dalian Mach Co., Ltd. specializes in exporting all kinds of machinery such as Metal Processing Machines, Paper Processing Machines, Packaging Machines, Rubber Machinery, Pharmaceutical Machines, Daily Product Making Machines and Forklifts. With more than twenty years' experience, our professional team will provide best service for you.
We have a group of professional engineers in charge of technology, manufacturing, installing and testing, so we can guarantee that our machines will put on good performance based on high quality.
Our products have been exported to more than 60 countries such as Canada, the U.S.A., Italy, France, Guatemala, Brazil, Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, the U.A.E., Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya and Ghana.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
...
