Model: 1575B PLC Fully Automatic Embossed & Perforating Small Toilet Paper Making Machine
Brief Introduction:
This toilet paper making machine consists of the following TWO parts:
- Fully Automatic Rewinding & Embossing bumf Machine
- Simple Type Log Stacker
The automatic toilet paper making machine converts the jumbo roll into small toilet rollers. The whole line work smoothly and run stable, saving the labor cost. It’s best choice for the producing toilet rollers.
Features:
- This toilet paper making machine can manufacture toilet rolls with core and without core according to your specific requirement.
- There is coreless unit in our machine. Our bumph making machine can manufacture toilet rolls without core according to your specific requirement. In this way, It’s no necessary to purchase Automatic Toilet Core Making Machine and It can reduce investment amount.
With Log Stacker, This line can manufacture toilet rolls continuously and non-stop. It will increase production efficiency.
Main Parameter :
Model | 1575B |
Jumbo Roll Max. Width | 1750mm |
Jumbo Roll Diameter | φ1100mm |
Jumbo Roll Inner Diameter | 76.2mm ( 3 inches ) Other size can be specified |
Perforation Distance | 4 Blades ( 115mm,230mm ) Other size can be specified |
Finished Product Diameter | φ80-φ140mm |
Finishes Product Core Diameter | φ38-φ48mm |
Production Speed | 0~180m/min |
Program Controller | PLC (Delta) |
Unwind Stands | 2 stands ( Need to be specified) |
Pneumatic System | 0.5-0.8MPa ( Provide by end-user) |
Main Power | 18kw |
Dimension | 7800x3000x1720mm (L x W x H) |
Weight | 3.5~4.5T |
Jumbo Roll Layers | 1~3 ply, 14~30gsm toilet rolls |
Edge-Line Embossing | Steel to steel (Pneumatic control) (can be specified) |

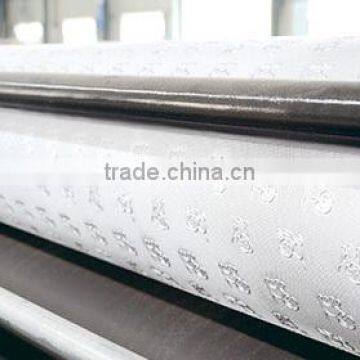

Embossment | Big diameter rollers, Steel to Rubber, Double Embossement (can be specified ) |
Voltage & Frequency | 380V, 50Hz, 3 Phase. |

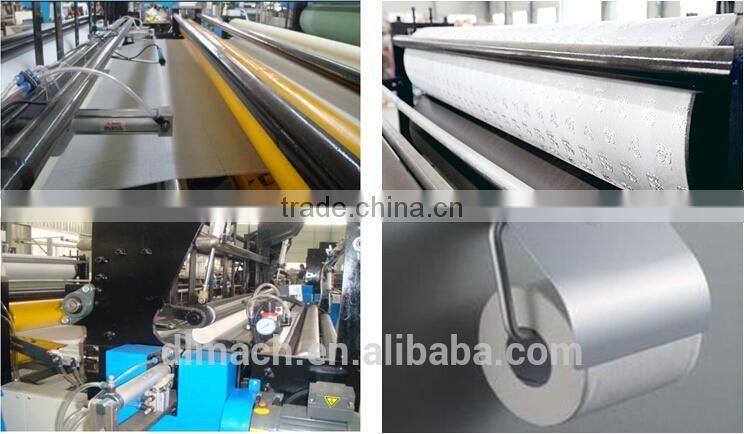

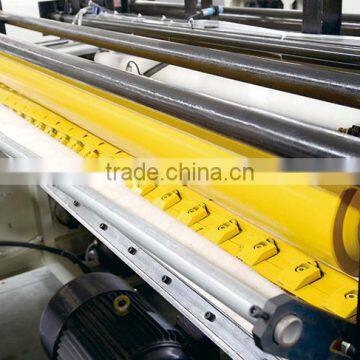

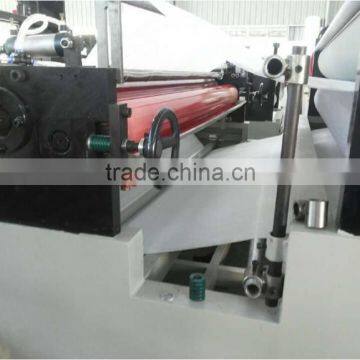

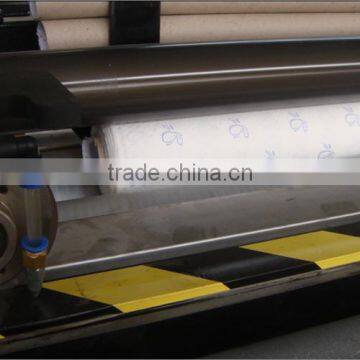

Picture of machine
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the products. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows.
- The machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
- When the machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
- During this period of one year warranty , if the machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
- During this period of warranty, if there is something wrong with the machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
- After the warranty, we charge only cost price for maintaining the machines within three years.
- Other after-sale terms can be agreed by buyer and seller in addition.
Q:Why choose our toilet paper making machine?
2 . 25 years export experience
3 . CE,ISO Certificates
4 . 24 HOURS ONLINE SERVICE (MSN,SKYPE, Trademanager)
6 . 12 months quality warranty
7 . Oversea engineers available for problem resolving
The ever increasing number of clients are the reflection of our abilities. This is also a proof that our clients get the right point for fulfilling all there needs. We are known for the quality of our work and dedication.
