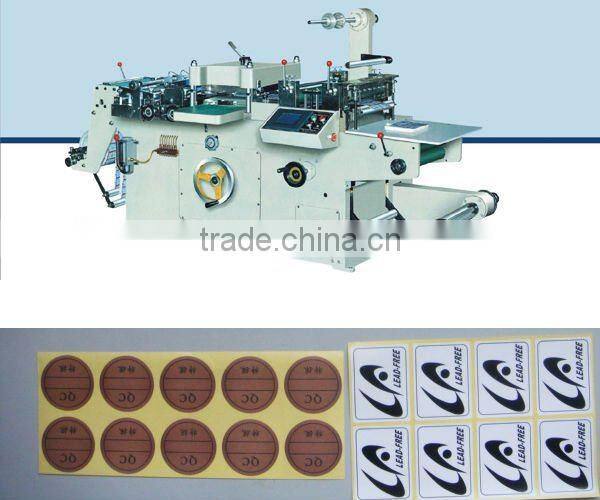

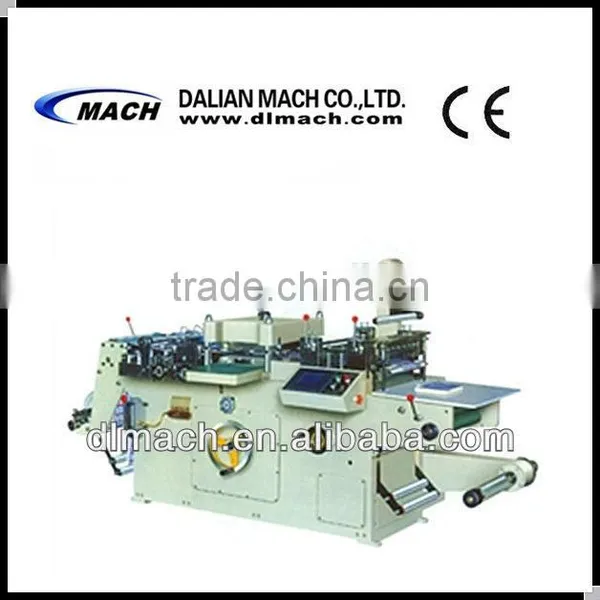

Die Cutting Machine For Self Adhesive (Sticker)
Technical Data:
Die cutting speed |
20-120strokes/min |
Max unwinding diameter |
450mm |
Max web width |
320mm |
Max die cutting width |
300mm |
Max die cutting length |
290mm |
Positioning presion |
±0.15mm |
Total power |
2.5Kw |
Power supply voltage |
220V±10% |
Weight |
1500kg |
Overall dimension |
2600×950×1400mm |
Characteristics:
This machine is applicable to die cut through platen with high precision, while the computer controls the slices and conveyor. The sides trademarks and longitudinal route are tracked through three photo electric eyes to position, while the die cutting , discarded delivery or anto trademarklabling can be finished in the processing of one web. The machine is applicable to die cut paper self adhesive trademark. Dacron film trademark and laser anti-false trademark. It is an ideal complete set of soft printing machine, continuous tread printing machine, relief printing machine and die compress machine for anti-false trademarks.
About our company:
Our company specialize in exporting toilet paper making machine, wet tissue machine, paper cup machine,etc for more than 20 years and export them to many countries. Such as: South Africa, Ghana, Kenya, Nigeria, Indonesia, Vietnam, UAE, Saudi Arabia,etc.
...
