Product Details
| Condition | New | Product Type | Paper Cup Machine | |
| Processing Type | Other, Paper cup making machine | Place of Origin | Zhejiang, China | |
| Brand Name | MACH | Model Number | EBZ-12 | |
| Voltage | 380V | Dimension(L*W*H) | 2600X1200X1700mm | |
| Weight | 1500kg | Certification | CE | |
| Warranty | One Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

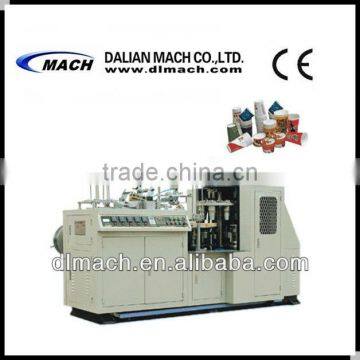

Paper Cup Forming Machine
Features:
1. Adopt micro-computer control system.
2. Automatic paper-feeding, sealing, oiling, bottom-punching,heating, curling, rimming and discharging.
3. Multi-running stations, PLC control, Stepless-speed adjustment, Photocell control with non- contact switch.
4. It's easy to make paper cups in different sizes by changing moulds.
5. Paper cup bottom sealed by hot air station.
5. Cup side sealing by Heater/ Ultrasonic.
6. Heater sealing for single side PE coated paper cups for hot drink only.
7. Ultrasonic sealing for both single side and double side PE coated paper cups.
8. It can make paper cups and other cone-shaping containers which can be used for tea, coffee, milk , ice-cream etc.
Techincal Data:
Production | 40-50 (PCS/min) |
Paper material | 180-280g (Single or double PE coated paper) |
Specification of paper cup | 4-12 (OZ) |
Total power | 220V 50Hz 4.8Kw 380V 50Hz 4.8Kw |
Weight | 1500kg |
Overall dimensions | 2600×1200×1700mm(L×W×H) |
Certificate:
CE certificate and ISO9001 certificate
About our company:
Our company specialize in exporting toilet paper making machine, wet tissue machine, paper cup machine,etc for more than 20 years and export them to many countries. Such as: South Africa, Ghana, Kenya, Nigeria, Indonesia, Vietnam, UAE, Saudi Arabia,etc.
....
