Home > Products > Paper Product Making Machinery > 1760A Toilet Paper Manufacturing Machine
1760A Toilet Paper Manufacturing Machine
- 35 Unit / Units per Month
- Dalian Port China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Product Type | Toilet Tissue | |
| Processing Type | Paper Slitting and Rewinding Machine | Place of Origin | Fujian, China | |
| Brand Name | MACH | Model Number | 1760A | |
| Voltage | 380V | Power(W) | 6.5KW | |
| Dimension(L*W*H) | 3800x2700x1400mm | Weight | 1600kgs | |
| Certification | CE | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1760A Toilet Paper Manufacturing Machine
Function and character :
1) This toilet paper manufacturing machine controlled with electric counter to ensure the weight of product. i.e. If one toilet roll have 200 sections, Length of each section is 115mm, You can input these data into counter. The machine will be stopped automatically controlled by controller.

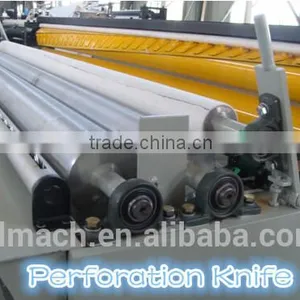

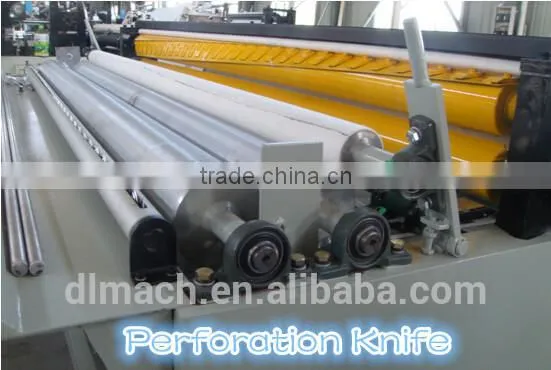

2) The composed parts of toilet paper manufacturing machine bracket and perforated knift roller are high in rigidity, with good antiseismic and stable operation.
3) It consists of two seperate units:Continuously Rolling, Embossing & Perforating unit & auxiliary cutting unit.
4) This toilet paper manufacturing machine have functions of re-winding, embossing, perforating & cutting.
5) This toilet paper manufacturing machine can be equipped with Automatic Pneumatic lift for jumbo roll according to buyer's requirement.
6) The perforation section can be adjusted and controlled from 100mm - 180mm.
Main Specification:
Diameter of finished toilet paper roll | 80-120mm |
Inner Core Diameter | 33-43mm |
Capacity | 100-120meter/min ( 21,000 rolls per 8 hours) |
Perforating Space | 100-200mm (Adjustable) |
Embossing Rolls | Steel Roll / Rubber Roll |
Size of Jumbo Toilet Paper Roll | Width: 1900mm, Max. Diameter: 1200mm; 13-22gsm; 1 ply or 2 ply |
Power | 6.5kw (380V, 50Hz) |
Pneumatic system | 3HP air compressor. Mini pressure: 5kg/cm2 |
Overall Dimension of machine | 3.80 x 2.70 x 1.40 (M) |
Weight | 1600 Kgs |
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the products. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows.
- The toilet paper manufacturing machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
- When the toilet paper manufacturing machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
- During this period of one year warranty , if the machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
- During this period of warranty, if there is something wrong with the machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
- After the warranty, we charge only cost price for maintaining the machines within three years.
- Other after-sale terms can be agreed by buyer and seller in addition.
We manufacture and export Automatic Toilet Paper Production Line, Automatic Napkin Paper making machine, Automatic facial tissue machine,etc for more than 20 years. Our Automatic Toilet Paper Production Line are very popular with our foreign clients by its good quality and competitive price.
CE Certification
Q:Why choose our toilet paper manufacturing machine?
2 . 25 years export experience
3 . CE,ISO Certificates
4 . 24 HOURS ONLINE SERVICE (MSN,SKYPE, Trademanager)
6 . 12 months quality warranty
7 . Oversea engineers available for problem resolving
