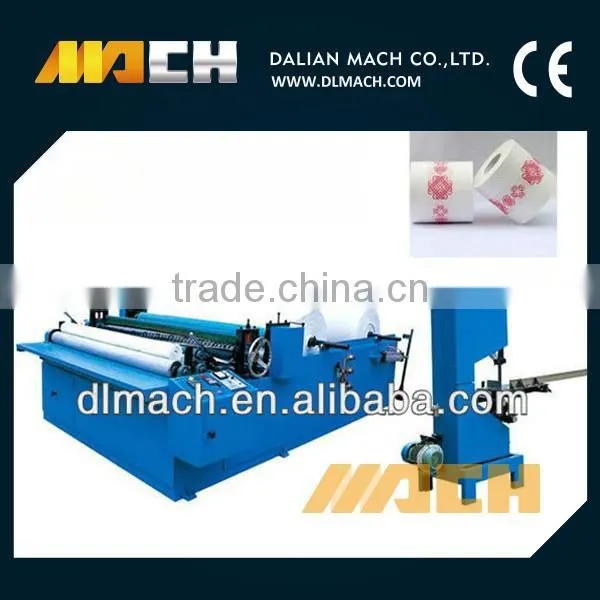

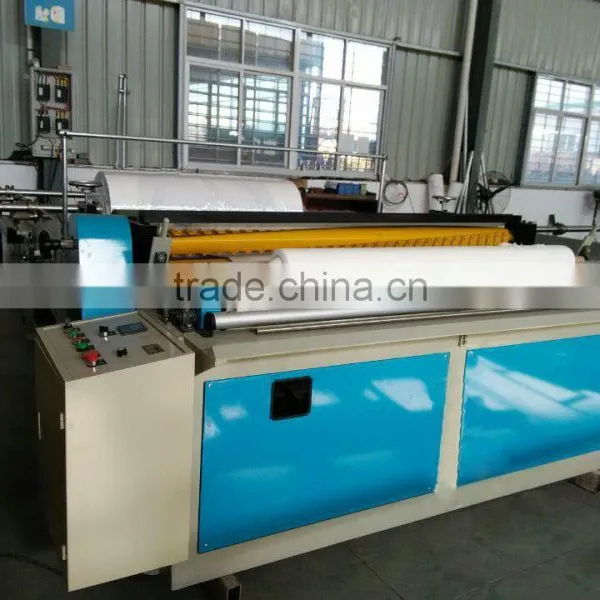

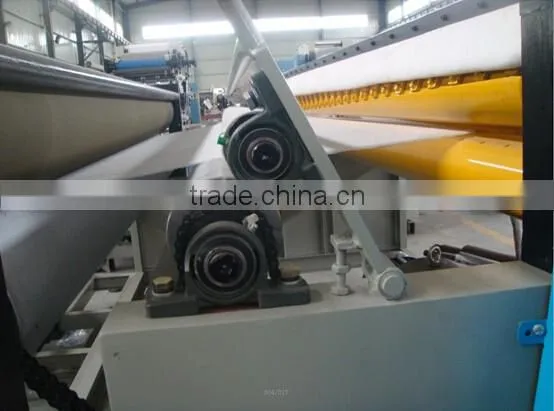

1092A Automatic Toilet Tisue Roll Making Machine
Function and character :

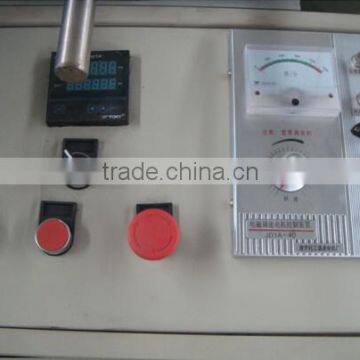

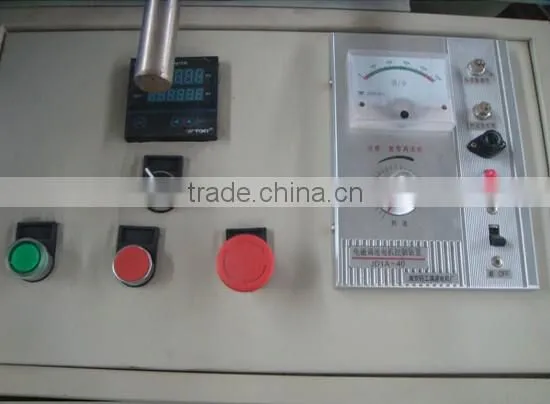

1) Controlled with electric counter to ensure the weight of product. i.e. If one toilet roll have 200 sections, Length of each section is 115mm, You can input these data into counter. The machine will be stopped automatically controlled by controller.
2) The composed parts of machine bracket and perforated knift roller are high in rigidity, with good antiseismic and stable operation.

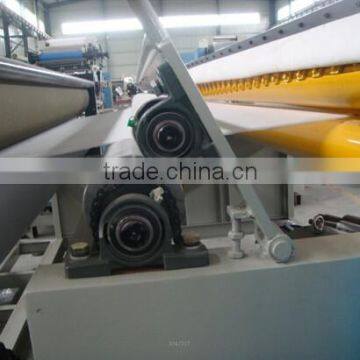

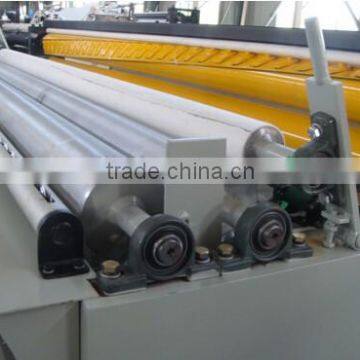

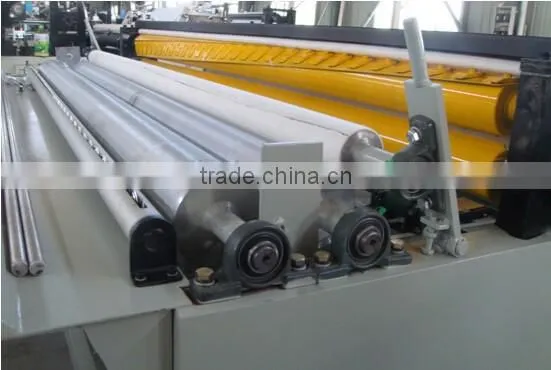

3) It consists of two seperate units:Continuously Rolling, Embossing & Perforating unit & auxiliary cutting unit.
4) This machine have functions of re-winding, embossing, perforating & cutting.
5) It can be equipped with Automatic Pneumatic lift for jumbo roll according to buyer's requirement.
6) The perforation section can be adjusted and controlled from 100mm - 180mm.
Main Specification:
Diameter of finished toilet paper roll |
80-120mm |
Inner Core Diameter |
33-43mm |
Capacity |
100-120meter/min ( 15,000 rolls per 8 hours) |
Perforating Space |
100-200mm (Adjustable) |
Embossing Rolls |
Steel Roll / Rubber Roll |
Size of Jumbo Toilet Paper Roll |
Width: 1350mm, Max. Diameter: 1200mm; 13-22gsm; 1 ply or 2 ply |
Power |
6.5kw (380V, 50Hz) |
Pneumatic system |
3HP air compressor. Mini pressure: 5kg/cm2 |
Overall Dimension of machine |
3.80 x 2.70 x 1.40 (M) |
Weight |
1600 Kgs |
Payment Terms:
30% downpayment by T/T in advance & 70% by T/T before shipment.
Packing:
In Wooden Case.
Delivery Time:
35 days after receiving your 30% downpayment by T/T.
Product Warranty:
We will supply standard spare parts and accessories with machine when shipment.(Such as:additional 4 pcs blades,etc).
Within one year after receiving our machines, Under the right operation of our machine, If there are any damaged parts or accessories,
We will replace them by air-mail or Express Mail immediately FREE OF CHARGE.
Exporting History:
We got CE certificate for this tissue roll machine and export it to South Africa, Kenya, Ghana, Egypt, Nigeria, Guatemala, Brazil, Indonesia, India, Thailand and other countries.
We manufacture and export Tissue Roll Machine for more than 25 years. We can also supply Automatic Folding Napkin Tissue Machine, Mini Type Pocket Face Tissue Machine, Automatic Box-Drawing Face Tissue Machine, Wet Tissue Folding & Packing Machine,etc. We export them to United Kingdom, Singapore,Thailand,Indonesia, India, U.A.E, South Africa, Uganda and other countries.
Q:Why choose our tissue roll machine?
2 . 25 years export experience
3 . CE,ISO Certificates
4 . 24 HOURS ONLINE SERVICE (MSN,SKYPE, Trademanager)
6 . 12 months quality warranty
7 . Oversea engineers available for problem resolving
