CKE6130i FAGOR CNC Lathe
USD $14,680 - $15,200
/ Unit
1 Unit(Min.Order)
- 50 Unit / Units per Month
- Main Port China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Horizontal | |
| CNC or Not | CNC | Automatic Grade | Automatic | |
| Max. Swing Diameter | 300mm | Place of Origin | Liaoning, China | |
| Brand Name | MACH | Model Number | CKE6130i | |
| Voltage | 380V | Power(W) | 4KW | |
| Weight | 1000KGS | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

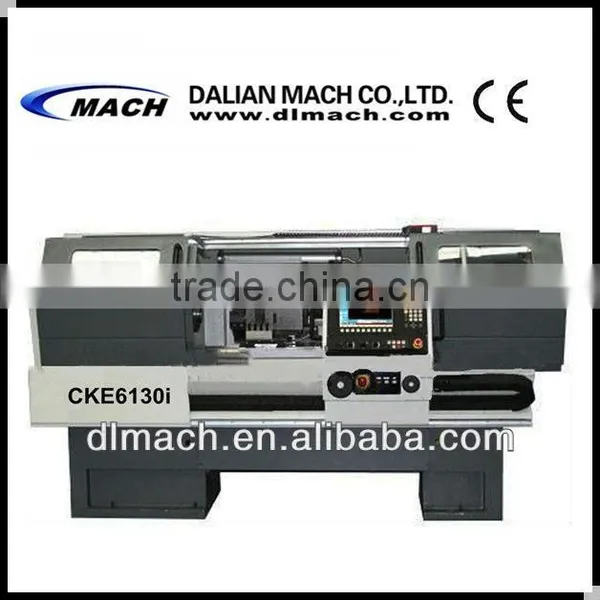

CKE6130i FAGOR CNC Lathe
Specification:
| Item | mm | CKE6130i | CKE6136Z | CKE6136i | CKE6140Z | CKE6140i | CKE6150Z | CKE6163Z | CKE6180Z |
| Max. swing over bed | mm | 300 | 360 | 360 | 400 | 400 | 500 | 630 | 800 |
| Width of bed | mm | 205 | 300 | 300 | 300 | 300 | 400 | 550 | 550 |
| Max. length of work piece | mm | 600 | 750/1000 | 750/1000 | 750/1000 | 750/1000 | 750/1000/1500/2000 | 1000/1500/2000/3000 | 1000/1500/2000/3000 |
| Max. swing over slide | mm | 145 | 180 | 180 | 200 | 200 | 280 | 320 | 490 |
| X travel | mm | 190 | 205 | 205 | 225 | 225 | 280 | 320 | 420 |
| Z travel | mm | 550 | 620/870 | 620/870 | 620/870 | 620/870 | 680/930/1430/1930 | 785/1235/1835/2735 | 785/1235/1835/2735 |
| Spindle nose | mm | A2-5 | A2-6/D6 | A2-5 | A2-6/D6 | A2-5 | D8 | C11 | C11 |
| Chuck size | mm | 165 | 200 | 165 | 200 | 165 | 250 | 320 | 400 |
| Taper of spindle bore | mm | M5 | M6 | M5 | M6 | M5 | 1:20 | 1:20 | 1:20 |
| Spindle bore | mm | 40 | 52 | 40 | 52 | 40 | 82 | 100 | 100 |
| Spindle speed Frequency conversion motor | r/min | 40-4000 | 20-650 750-2500 | 200-3500 | 20-650 75-2500 | 200-3500 | 7-135 30-550 110-2200 | 40-178 71-310 124-556 222-1000 | 40-178 71-310 124-556 222-1000 |
| Steps of spindle speed | step less | 2-step actuator | stepless | 2-step actuator | stepless | 3-step actuator | 4-step actuator | 4-step actuator | |
| Frequency conversion motor power | kw | 4 | 5.5 | 5.5 | 5.5 | 5.5 | 7.5 | 11 | 11 |
| Rapid traverse X/Z | m/min | 4/5 | 4/5 | 4/5 | 4/5 | 4/5 | 6/10 | 4/8 | 4/8 |
| Repeatability of tool post | mm | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 |
| Diameter of tailstock quill | mm | 42 | 63 | 63 | 63 | 63 | 75 | 100 | 100 |
| Travel of tailstock quill | mm | 110 | 130 | 130 | 130 | 130 | 150 | 240 | 240 |
| Taper of tailstock quill | M3 | M4 | M4 | M4 | M4 | M4 | M6 | M6 | |
| Net weight | kg | 1000 | 1800/1950 | 1800/1951 | 1800/1952 | 1800/1953 | 2550/2600/2700/2800 | 4700/4800/5300/5600 | 5200/5300/5800/6100 |
About our company:
Founded in 1948, Our factory entered the top 8 machine tool builders in the world. turly a leader in the machine tool industry worldwide. Our CNC lathe sell to more than 100 countries and regions worldwide.
...
