CKE6156i DMTG FAGOR CNC Lathe
USD $35,150 - $46,450
/ Unit
1 Unit(Min.Order)
- 20 Unit / Units per Month
- Dalian Port China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 560mm | Place of Origin: | Liaoning, China |
Brand Name: | MACH | Model Number: | CKE6156i | Voltage: | 380V |
Power(W): | 11KW | Weight: | 6100KGS | Certification: | CE |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
CKE6156i DMTG FAGOR CNC Lathe
Specification:

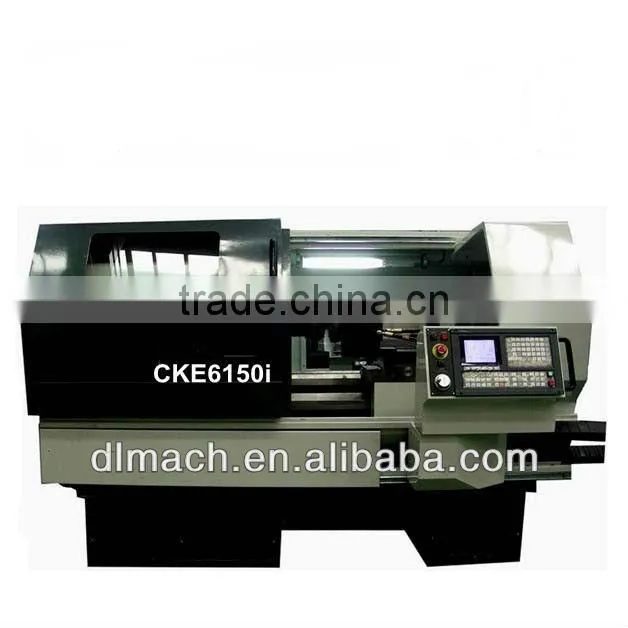

Item | mm | CKE6140i | CKE6150Z | CKE6156i | CKE6163Z | CKE6166Z | CKE6180Z |
Max. swing over bed | mm | 400 | 500 | 560 | 630 | 660 | 800 |
Width of bed | mm | 300 | 400 | 400 | 550 | 400 | 550 |
Max. length of work piece | mm | 750/1000 | 750/1000/1500/2000 | 750/1000/1500/2000 | 1000/1500/2000/3000 | 750/1000/1500/2000 | 1000/1500/2000/3000 |
Max. swing over slide | mm | 200 | 280 | 330 | 320 | 430 | 490 |
X travel | mm | 225 | 280 | 305 | 320 | 305 | 420 |
Z travel | mm | 620/870 | 680/930/1430/1930 | 680/930/1430/1930 | 785/1235/1835/2735 | 680/930/1430/1930 | 785/1235/1835/2735 |
Spindle nose | mm | A2-5 | D8 | D8 | C11 | D8 | C11 |
Chuck size | mm | 165 | 250 | 250 | 320 | 315 | 400 |
Taper of spindle bore | mm | M5 | 1:20 | 1:20 | 1:20 | 1:20 | 1:20 |
Spindle bore | mm | 40 | 82 | 82 | 100 | 82 | 100 |
Spindle speed Frequency conversion motor | r/min | 200-3500 | 7-135 | 7-135 | 40-178 | 7-135 | 40-178 |
30-550 | 30-550 | 71-310 | 30-550 | 71-310 | |||
110-2200 | 110-2200 | 124-556 | 110-2200 | 124-556 | |||
222-1000 | 222-1000 | ||||||
Steps of spindle speed | stepless | 3-step actuator | 3-step actuator | 4-step actuator | 3-step actuator | 4-step actuator | |
Frequency conversion motor power | kw | 5.5 | 7.5 | 7.5 | 11 | 7.5 | 11 |
Rapid traverse X/Z | m/min | 4/5 | 6/10 | 6/10 | 4/8 | 6/10 | 4/8 |
Repeatability of tool post | mm | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 | 0.008 |
Diameter of tailstock quill | mm | 63 | 75 | 75 | 100 | 75 | 100 |
Travel of tailstock quill | mm | 130 | 150 | 150 | 240 | 150 | 240 |
Taper of tailstock quill | M4 | M4 | M5 | M6 | M5 | M6 | |
Net weight | kg | 1800/1953 | 2500/2600/2700/2800 | 2600/2650/2750/2850 | 4700/4800/5300/5600 | 2700/2750/2850/2950 | 5200/5300/5800/6100 |
About our company:
Founded in 1948. Our factory already entered the TOP 8 machine tool builders in the world. truly a leader in the machine tool industry worldwide. Our machines sell to more than 100 countries and regions worldwide
...
