Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > CKE6163Z Dalian DMTG Economic Horizontal Lathe CNC

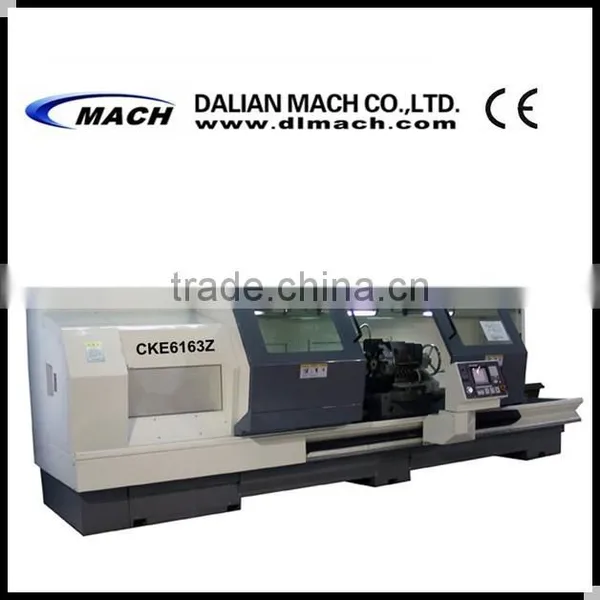

CKE6163Z Dalian DMTG Economic Horizontal Lathe CNC
US$ 34,000 - 54,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian Port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CKE6163Z Automatic Horizontal CNC Machine ToolUS$ 34,000 - 53,500MOQ: 1 Unit -
CKE6156Z Hot Sale High Precision New CNC Turning LatheUS$ 20,000 - 30,000MOQ: 1 Unit
-
CKE6156i DMTG FAGOR CNC LatheUS$ 35,150 - 46,450MOQ: 1 Unit
-
CKE6140i CNC Lathe MachineUS$ 1 - 20,000MOQ: 1 Unit
-
CKE6140i Automatic Horizontal CNC Lathe MachineUS$ 1 - 20,000MOQ: 1 Unit
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
630mm
Place of Origin
Liaoning, China
Brand Name
MACH
Model Number
CKE6163Z
Voltage
380V or 220V
Power(W)
5.5KW
Dimension(L*W*H)
3455x2000x1800
Weight
1950KGS
Certification
CE certificate
After-sales Service Provided
Engineers available to service machinery overseas
CKE6163Z Dalian DMTG Economic Horizontal Lathe CNC
Product Description
Specification of Horizontal Lathe CNC
| Item | mm | CKE6140i | CKE6150Z | CKE6163Z | CKE6180Z |
| Max. swing over bed | mm | 400 | 500 | 630 | 800 |
| Width of bed | mm | 300 | 400 | 550 | 550 |
| Max. length of work piece | mm | 750/1000 | 750/1000/1500/2000 | 1000/1500/2000/3000 | 1000/1500/2000/3000 |
| Max. swing over slide | mm | 200 | 280 | 320 | 490 |
| X travel | mm | 225 | 280 | 320 | 420 |
| Z travel | mm | 620/870 | 680/930/1430/1930 | 785/1235/1835/2735 | 785/1235/1835/2735 |
| Spindle nose | mm | A2-5 | D8 | C11 | C11 |
| Chuck size | mm | 165 | 250 | 320 | 400 |
| Taper of spindle bore | mm | M5 | 1:20 | 1:20 | 1:20 |
| Spindle bore | mm | 40 | 82 | 100 | 100 |
| Spindle speed Frequency conversion motor | r/min | 200-3500 |
7-135 30-550 110-2200 |
40-178 71-310 124-556 222-1000 |
40-178 71-310 124-556 222-1000 |
| Steps of spindle speed | stepless | 3-step actuator | 4-step actuator | 4-step actuator | |
| Frequency conversion motor power | kw | 5.5 | 7.5 | 11 | 11 |
| Rapid traverse X/Z | m/min | 4/5 | 6/10 | 4/8 | 4/8 |
| Repeatability of tool post | mm | 0.008 | 0.008 | 0.008 | 0.008 |
| Diameter of tailstock quill | mm | 63 | 75 | 100 | 100 |
| Travel of tailstock quill | mm | 130 | 150 | 240 | 240 |
| Taper of tailstock quill | M4 | M4 | M6 | M6 | |
| Net weight | kg | 1800/1953 | 2500/2600/2700/2800 | 4700/4800/5300/5600 | 5200/5300/5800/6100 |
| Item | mm | CKE6130i | CKE6136Z | CKE6136i | CKE6140Z |
| Max. swing over bed | mm | 300 | 360 | 360 | 400 |
| Width of bed | mm | 205 | 300 | 300 | 300 |
| Max. length of work piece | mm | 600 | 750/1000 | 750/1000 | 750/1000 |
| Max. swing over slide | mm | 145 | 180 | 180 | 200 |
| X travel | mm | 190 | 205 | 205 | 225 |
| Z travel | mm | 550 | 620/870 | 620/870 | 620/870 |
| Spindle nose | mm | A2-5 | A2-6/D6 | A2-5 | A2-6/D6 |
| Chuck size | mm | 165 | 200 | 165 | 200 |
| Taper of spindle bore | mm | M5 | M6 | M5 | M6 |
| Spindle bore | mm | 40 | 52 | 40 | 52 |
| Spindle speed Frequency conversion motor | r/min | 40-4000 | 20-650 750-2500 | 200-3500 |
20-650 75-2500 |
| Steps of spindle speed | step less | 2-step actuator | stepless | 2-step actuator | |
| Frequency conversion motor power | kw | 4 | 5.5 | 5.5 | 5.5 |
| Rapid traverse X/Z | m/min | 4/5 | 4/5 | 4/5 | 4/5 |
| Repeatability of tool post | mm | 0.008 | 0.008 | 0.008 | 0.008 |
| Diameter of tailstock quill | mm | 42 | 63 | 63 | 63 |
| Travel of tailstock quill | mm | 110 | 130 | 130 | 130 |
| Taper of tailstock quill | M3 | M4 | M4 | M4 | |
| Net weight | kg | 1000 | 1800/1950 | 1800/1951 | 1800/1952 |
Our Services
Certificate of Horizontal Lathe CNC
CE certificate & ISO9001 Certificate
Quality Guarantee of Horizontal Lathe CNC
We will supply enough spare parts and accessories with our horizontal lathe cnc when shipment. Within one year after receiving our horizontal lathe cnc, If there are any damaged parts or accessoreis, We will supply them to you by air-mail free of charge.
Company Information
About Our Company
Founded in 1948. Our factory already entered the TOP 8 machine tool builders in the world. truly a leader in the machine tool industry worldwide. Our machines sell to more than 100 countries and regions worldwide.
...
