Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > CKE6140Z CNC Machine Tool

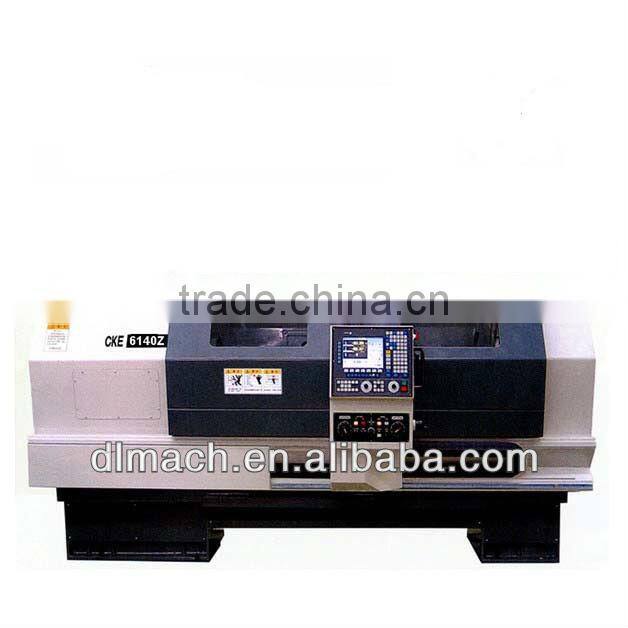

CKE6140Z CNC Machine Tool

Name: CKE6140Z CNC Machine Tool
Brand: MACH
SKU: 141435242
Availability: InStock

US$ 16,000 - 21,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Dalian Mach Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian Port China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 400mm

Place of Origin Liaoning, China

Brand Name MACH

Model Number CKE6140Z

Voltage 380V

Power(W) 5.5KW

Weight 1952kgs

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

CKE6140Z CNC Machine Tool

Specifications:

Item	mm	CKE6130i	CKE6136Z	CKE6136i	CKE6140Z
Max. swing over bed	mm	300	360	360	400
Width of bed	mm	205	300	300	300
Max. length of work piece	mm	600	750/1000	750/1000	750/1000
Max. swing over slide	mm	145	180	180	200
X travel	mm	190	205	205	225
Z travel	mm	550	620/870	620/870	620/870
Spindle nose	mm	A2-5	A2-6/D6	A2-5	A2-6/D6
Chuck size	mm	165	200	165	200
Taper of spindle bore	mm	M5	M6	M5	M6
Spindle bore	mm	40	52	40	52
Spindle speed Frequency conversion motor	r/min	40-4000	20-650 750-2500	200-3500	20-650 75-2500
Steps of spindle speed		step less	2-step actuator	stepless	2-step actuator
Frequency conversion motor power	kw	4	5.5	5.5	5.5
Rapid traverse X/Z	m/min	4/5	4/5	4/5	4/5
Repeatability of tool post	mm	0.008	0.008	0.008	0.008
Diameter of tailstock quill	mm	42	63	63	63
Travel of tailstock quill	mm	110	130	130	130
Taper of tailstock quill		M3	M4	M4	M4
Net weight	kg	1000	1800/1950	1800/1951	1800/1952

Item	mm	CKE6140i	CKE6150Z	CKE6163Z	CKE6180Z
Max. swing over bed	mm	400	500	630	800
Width of bed	mm	300	400	550	550
Max. length of work piece	mm	750/1000	750/1000/1500/2000	1000/1500/2000/3000	1000/1500/2000/3000
Max. swing over slide	mm	200	280	320	490
X travel	mm	225	280	320	420
Z travel	mm	620/870	680/930/1430/1930	785/1235/1835/2735	785/1235/1835/2735
Spindle nose	mm	A2-5	D8	C11	C11
Chuck size	mm	165	250	320	400
Taper of spindle bore	mm	M5	1:20	1:20	1:20
Spindle bore	mm	40	82	100	100
Spindle speed Frequency conversion motor	r/min	200-3500	7-135 30-550 110-2200	40-178 71-310 124-556 222-1000	40-178 71-310 124-556 222-1000
Steps of spindle speed		stepless	3-step actuator	4-step actuator	4-step actuator
Frequency conversion motor power	kw	5.5	7.5	11	11
Rapid traverse X/Z	m/min	4/5	6/10	4/8	4/8
Repeatability of tool post	mm	0.008	0.008	0.008	0.008
Diameter of tailstock quill	mm	63	75	100	100
Travel of tailstock quill	mm	130	150	240	240
Taper of tailstock quill		M4	M4	M6	M6
Net weight	kg	1800/1953	2500/2600/2700/2800	4700/4800/5300/5600	5200/5300/5800/6100

1. Chuck guard

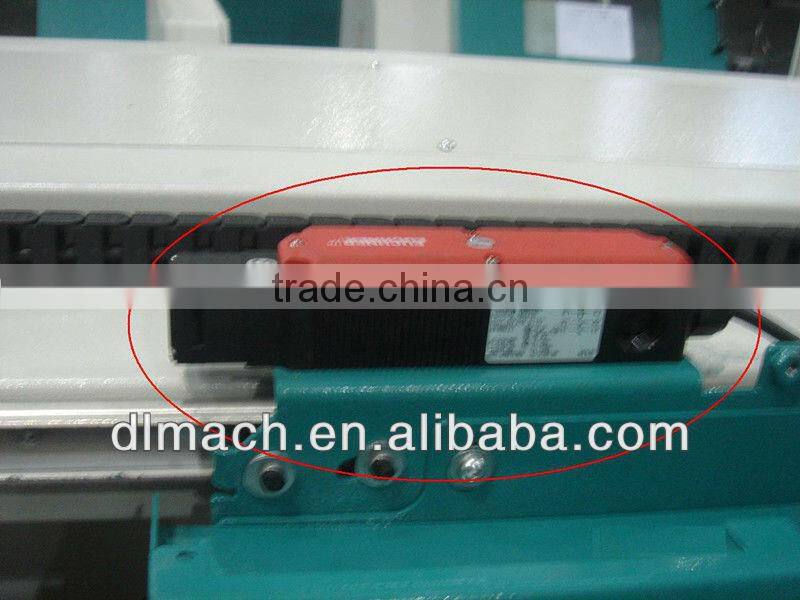

2. Door interlock1

3. Door interlock2

4. Steady rest

About our company:

Founded in 1948, Our factory entered the top 8 machine tool builders in the world. turly a leader in the machine tool industry worldwide. Our CNC lathe sell to more than 100 countries and regions worldwide.

...
