Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > KX3S-SIEG CNC Mill

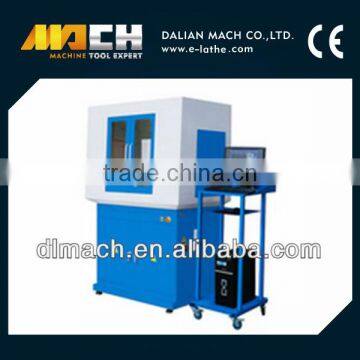

KX3S-SIEG CNC Mill

Name: KX3S-SIEG CNC Mill
Brand: MACH
SKU: 141435158
Availability: InStock

Dalian Mach Co., Ltd.

US$ 1 - 10,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

MACH

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian Port China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shanghai, China

Brand Name MACH

Model Number KX3S-SIEG

Type Vertical

CNC or Not CNC

Voltage 380V

Power(W) 1000W

Dimension(L*W*H) 1280x895x1845 mm

Weight 510/570 kg

Certification CE

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

KX3S-SIEG CNC Mill

Key Features of KX3S-SIEG CNC Mill:

Drilling capacity--25 mm
Worktable size--550x160 mm
PC based CNC sytem,high reliability
Automatic lubrication system,protect the rail life
High quality 3 axis step motor,high torque brushless motor

Specifications of KX3S-SIEG CNC Mill:

Drilling capacity	25mm
Worktable size	550*160mm
Worktable T-slot size	12mm
No. of T-slot size	3
Max. load bearing of worktable	35kg
Table travel X axis	280mm
Table travel Y axis	120mm
Table travel Z axis	270mm
Motor of X axis	4 N. m
Motor of Y axis	4 N. m
Motor of Z axis	6 N. m
Te max speed of moving (X,Y,Z)	2000mm/min
The speed of feeding (X,Y,Z)	500mm/min
Throat	232mm
Position accuracy	0.015mm
Repeatability position accuracy	0.01mm
Spindle taper	MT3/R8/ISO 30
Speed of spindle	100-5000 r/min
Main motor power	1000W
Machine size	12808951845mm
Packing size	142010602035mm
Weight (NW/GW)	510/570kg

Pictures of KX3S-SIEG CNC Mill:

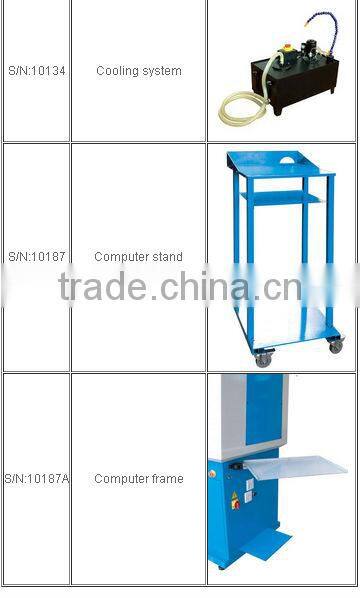

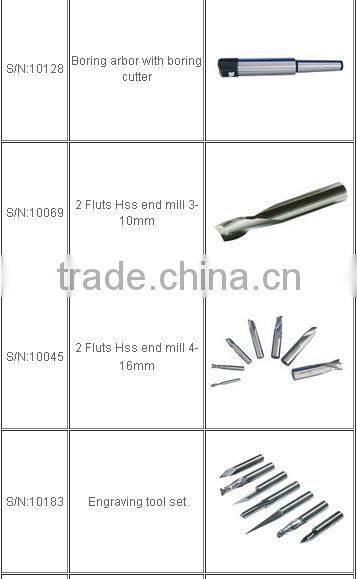

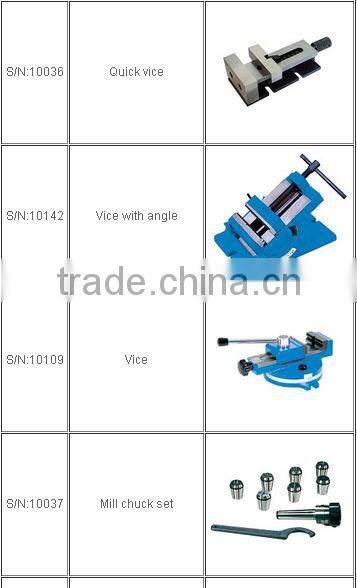

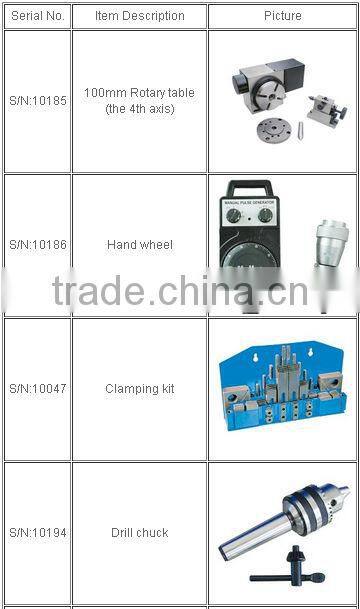

Optional Accessories

Optional Systems of KX3S-SIEG CNC Mill:

Detailed drawing of KX3S-SIEG CNC Mill:

About our company:

We are one of biggest manufacturer of producing CNC Milling Machine, Vertical machining Center, Universal Milling Machine, CNC Lathe,etc in China. We entered the top 8 machine tool builders in the world. Our CNC Milling Machine sell to more than 100 countries and regions worldwide.

...
