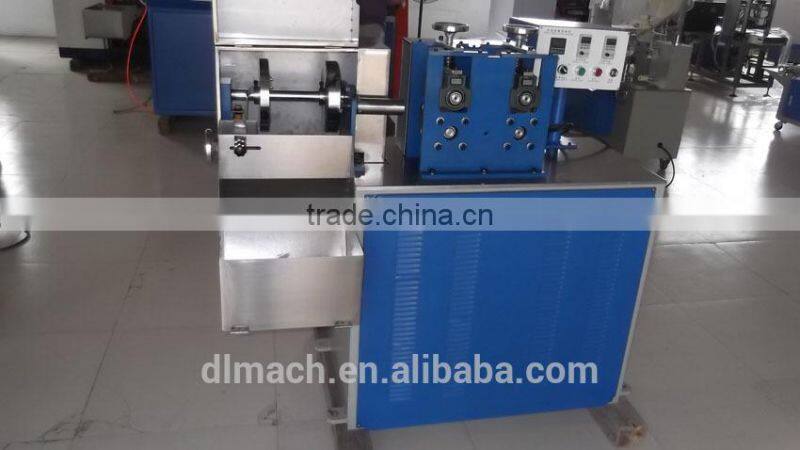

3 Colors Plastic Drink Straw Machine
Brief Introduction:

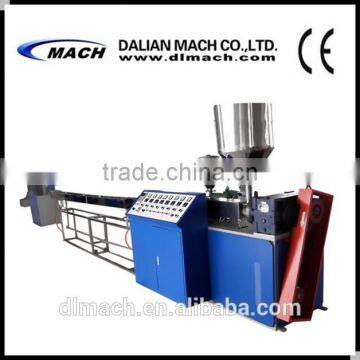

Plastic Drink Straw Machine Model:CY01 is a tubing extrusion line.
It is composed of extruder and die,Vacuum calibration and cooling unit, hauloff and rotary cutter or coiler, all the machine's controls base with the control elements ergonomically adapted to permit easy operation. The system is also suitable for extruding straws, refiltubes and most small diameter tubing and a wide range of industrial applications.
Main Specification:
Typical Capacity:
Drinking Straws 30,000 -- 40,000pcs/h
Cotton swab sticks 60,000pcs/h
Pen Refills 40,000pcs/h
Min. Diameter: 3.0mm
Max.Diameter: 12.00mm
Min. Length: 90mm
Max.Length: 300mm
Total Power: 25 KW
Working Power: 10 KW
Material: PP
Ends: 90°/90°, 90°/45°, 90°/60°, 45°/45°, 60°/60°
Colors: Single,Two or Three, SPIRAL STRIPES,STRAIGHT STRIPES.
Operator: One operator is sufficent to run the line
Area Requirement: Length: around 8 meter. Width: around 2 meter.
Raw Material: Polypropylene (P.P )
Grade: Extrusion & Drawing
Shape: Pellet
Melt Index: 2.5
Drawing Intensity: 380/ 350
Kneading Modulus: 17000
Rockwell Hardness: 100
Vica Soften Temperature: 160 C
Rotary Cutter:
Fitted with either single or double rotary cutter, suitable for light duty applications driven by variable speed gearbox. Inclides cutting and quick bushes with necessary guarding. Inverter control
Hall-off and Rotary Cutter:
Hall-off be combined with Rotary cutter.
Pictures:
We can supply plastic drinking straw making machine in one color, two colors, three colors.
Packaging :
About Our Company:
Dalian Mach Co., Ltd. have a group of professional engineers in charge of technology, manufacturing, installing and testing, so we can guarantee that our plastic drink straw machine will put on good performance based on high quality.
Our plastic drink straw machines have been exported to more than 60 countries such as Canada, the U.S.A., Italy, France, Guatemala, Brazil, Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, the U.A.E., Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya and Ghana.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service
...
