Product Description
Characteristics:

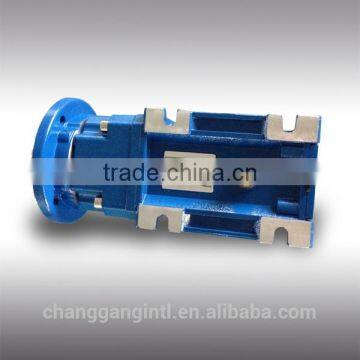

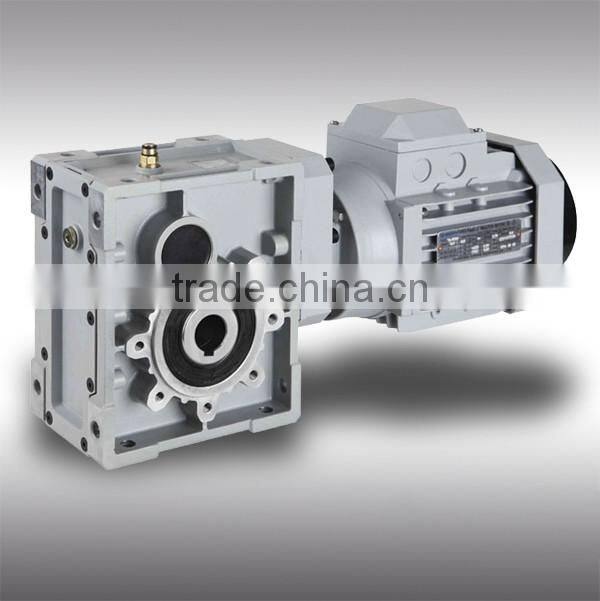

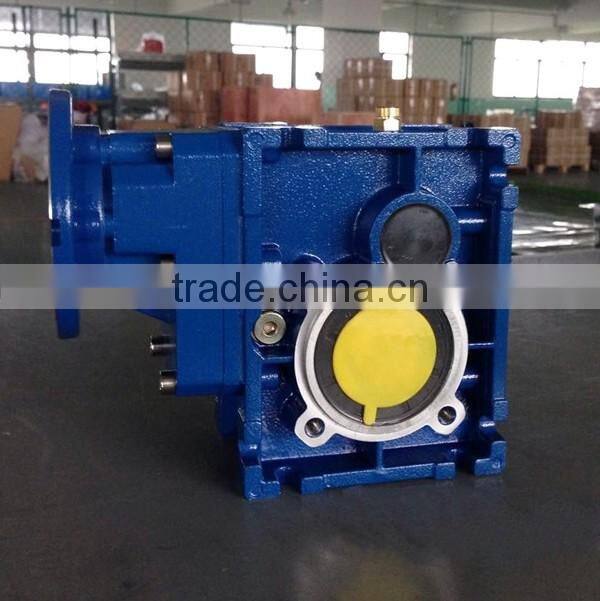

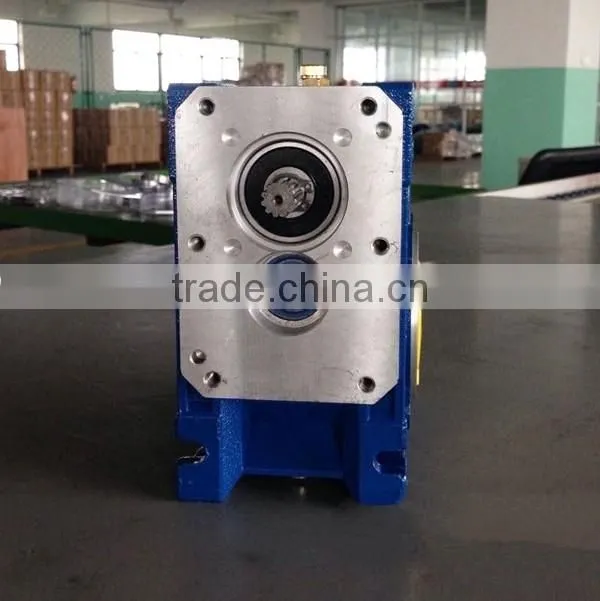

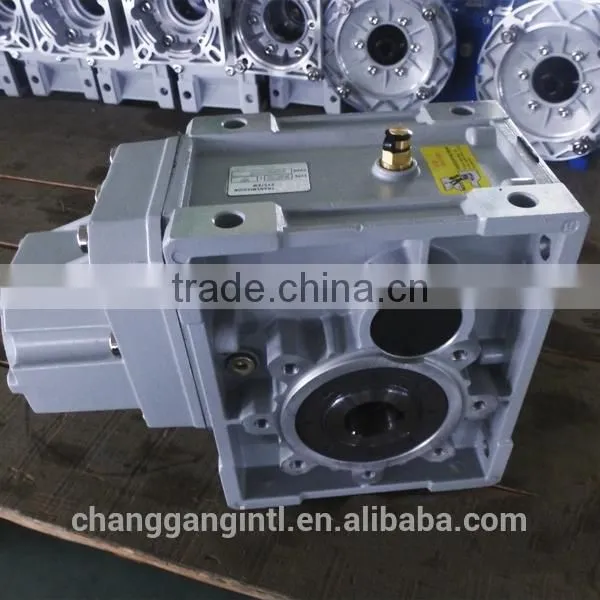

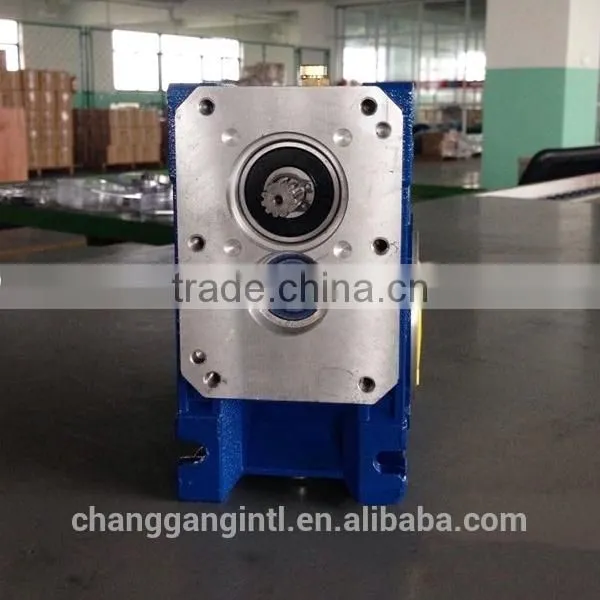

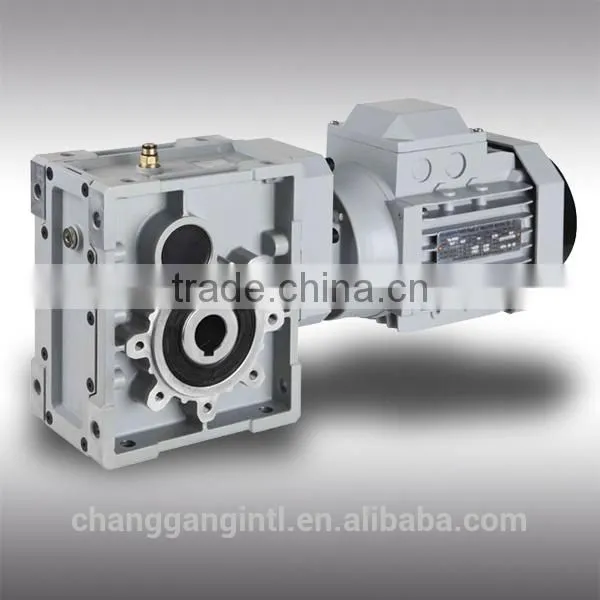

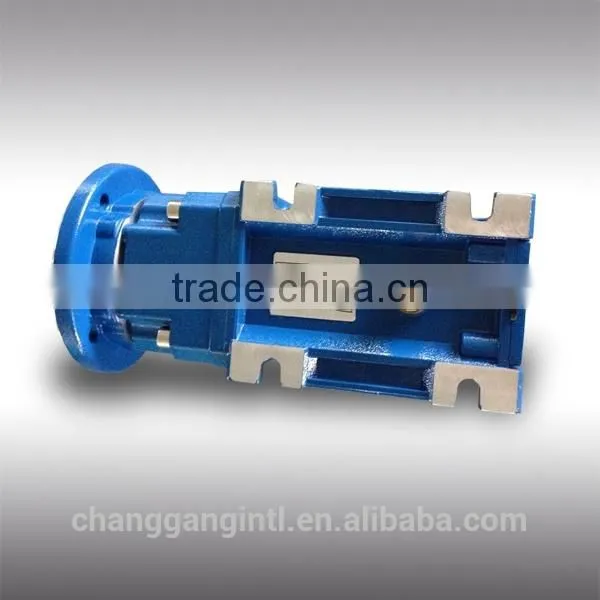

Product Name: CKM Series Hypoid Gear Reducer
Product Description : CKM series helical-hypoid gear units is a new-generation of product developed by our company .With a combination of advanced technology both from domestic and aboard .
TYPE |
CKM50, CKM63, CKM75, CKM90 |
Transmission Stage |
2 stages |
3 stages | |
Ratio |
7.5,10,12.5,15,20,25,30,40,50,60 |
50,60,75,100,125,150,200,250,300 | |
Output torque |
Up to 500NM |
Motor power |
0.12~4KW,with flange:B5 or B14 |
Housing material |
Aluminum alloy |
Output shaft |
material: 40Cr |
Hardness level: 242-286HB | |
Helical gear |
Material:20CrMnTi |
Hardness level: 58-62HRC | |
Precision level:6 grade | |
Transmission efficiency |
B:92%-94% |
C:90%-92% | |
Oil seal brand |
SKF |
Bearing |
C&U |
Lubricant |
Mineral oil or sythetic oil |
Difference from RV | ||
project |
CKM |
RV |
Transmission |
Hypoid gear,Cylindrical gear |
Worm wheel,worm shaft |
Transmission efficiency |
High(about:90%-92%) |
Low(about:50%-85%) |
Bearing capacity |
1-1.5 |
1 |
temperature-rise |
30°C |
60°C |
Running temperature |
50-60°C |
70-80°C |
The sealing reliability |
High |
Low |
Life |
Long |
Short |
Self-locking |
Non |
Some ratio |
Extension shaft |
Non |
S |
