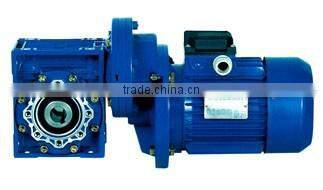

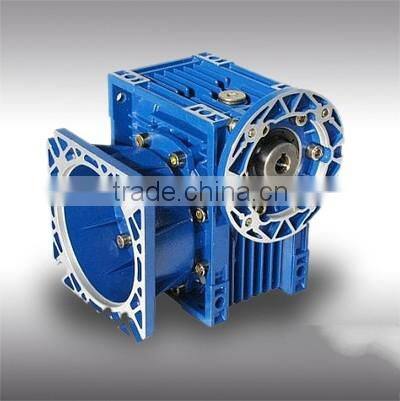

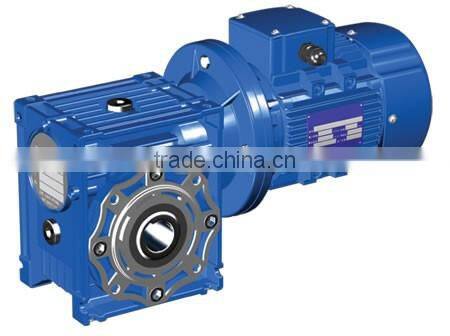

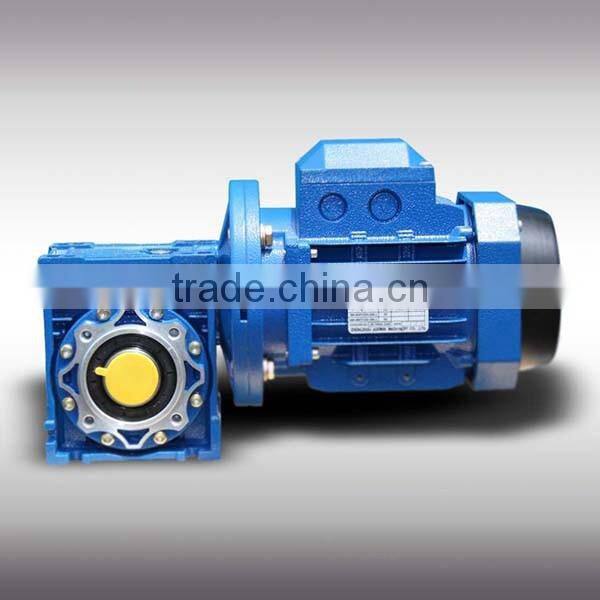

Home > Industrial Equipment & Components > Power Transmission Parts > Gearbox > Popular And Competitive RV Series Worm Gear Gearbox
US$ 15 - 15
MOQ: 20 Sets
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Changgang
Model Number:
NMRV025 -150
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RV Series Worm Gear rv Reducer,rv Gear,worm Wheel GearboxUS$ 15 - 15MOQ: 20 Sets -
CKM05BKM Helical Hypoid Spiral Bevel Gearbox With Flange InputUS$ 25 - 25MOQ: 20 Sets
-
CKM05B Helical Hypoid Spiral Bevel Gearbox With Flange Input 48BUS$ 25 - 25MOQ: 20 Sets
-
KM050 063 075 090 Helical Hypoid Gearbox Helical Hypoid Worm GearboxUS$ 25 - 25MOQ: 20 Sets
-
NMRV RV 030-130 Series Worm and Gear Wheel Speed ReducerUS$ 15 - 15MOQ: 20 Sets
Place of Origin
Henan, China
Brand Name
Changgang
Model Number
NMRV025 -150
Gearing Arrangement
Worm
Output Torque
800~100000N.m
Rated Power
0.06-15KW
Input Speed
1400rpm
Output Speed
14-280rpm
Product Description
RV series worm-gear speed reducer is a new-generation of products developed by our company with combination of advanced by technology both at home and abroad.
Characteristics:
(1)Large output torque
(2) Safe, reliable, economical and durable
(3) Stable transmission, quiet operation
(4) High heat-radiating efficiency, high carrying ability

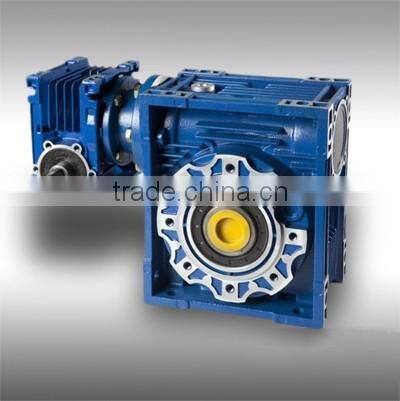

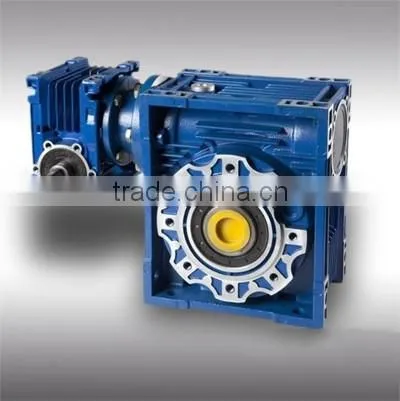

(5) Combination of two single-step worm gear speed reducers, meeting the requirements of super speed ratio
(6) Mechanical gearboxes are widely used in the sectors,like foodstuff, ceramics, and chemical manufacturing, as well as packing, printing, dyeing and plastics
Technical data:
(1) Motor input power:0.06kw-15kw
(2) Output torque:4-2320N.M
(3) Speed ratio of worm gear peed reducer: 5/10/15/20/25/30/40/50/60/80/100

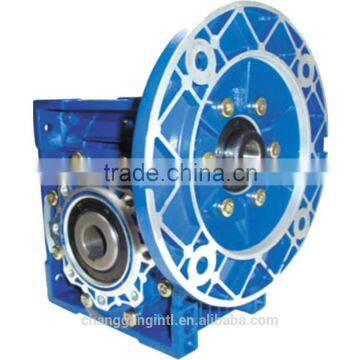

(4) With IEC motor input flange: 56B14/71B14/80B5/90B5…
Materials:
(1) NMRV025-NMRV090: Aluminium alloy housing
(2) NMRV110-150: Cast iron housing
(3) Bearing: NSK bearing & Homemade bearing
(4) Lubricant: Synthetic & Mineral
(5) The material of the worm mandrel is HT250, and the worm ring gear is ZQSn10-1.
(6) With high quality homemade bearings, assembled NAK oil seals & filled with high quality lubricant.
Operation&mantenance
(1)When worm speed reducer starts to work up to200-400 hours, its lubricant should be replaced.
(2)The gearbox need to replace the oil after 4000 hours.
(3)Worm reduction gearbox is fully filled with lubricant oil after finshed assembly.
(4)Lubricanting oil should be kept enough in the casing and checked at a fixed time.
Color:
(1) Blue / Light blue
(2) Silvery White
Quality control
(1) Quality guarantee: 1 year
(2) Certificate of quality: ISO9001:2000
(3) Every product must be tested before sending
Characteristics:
(1)Large output torque
(2) Safe, reliable, economical and durable
(3) Stable transmission, quiet operation
(4) High heat-radiating efficiency, high carrying ability
(5) Combination of two single-step worm gear speed reducers, meeting the requirements of super speed ratio
(6) Mechanical gearboxes are widely used in the sectors,like foodstuff, ceramics, and chemical manufacturing, as well as packing, printing, dyeing and plastics
Technical data:
(1) Motor input power:0.06kw-15kw
(2) Output torque:4-2320N.M
(3) Speed ratio of worm gear peed reducer: 5/10/15/20/25/30/40/50/60/80/100
(4) With IEC motor input flange: 56B14/71B14/80B5/90B5…
Materials:
(1) NMRV025-NMRV090: Aluminium alloy housing
(2) NMRV110-150: Cast iron housing
(3) Bearing: NSK bearing & Homemade bearing
(4) Lubricant: Synthetic & Mineral
(5) The material of the worm mandrel is HT250, and the worm ring gear is ZQSn10-1.
(6) With high quality homemade bearings, assembled NAK oil seals & filled with high quality lubricant.
Operation&mantenance
(1)When worm speed reducer starts to work up to200-400 hours, its lubricant should be replaced.
(2)The gearbox need to replace the oil after 4000 hours.
(3)Worm reduction gearbox is fully filled with lubricant oil after finshed assembly.
(4)Lubricanting oil should be kept enough in the casing and checked at a fixed time.
Color:
(1) Blue / Light blue
(2) Silvery White
Quality control
(1) Quality guarantee: 1 year
(2) Certificate of quality: ISO9001:2000
(3) Every product must be tested before sending
