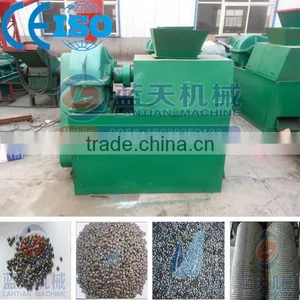

Graphite powder pellet making machine
Brief introduction of graphite powder pellet making machine
The "Lantian" brand pellet making machine is a new type of powder material granulation equipment.
It adopts high quality anti-corrosion and wear-resistant materials elaborate manufactured, has perfect
appearance, simple operation, low energy consumption, long service life, high pelleting rate, etc. Is now the advanced granulation equipment, and the most popular granulation machine.
Characteristics of pellet making machine:
1. No drying technology, room temperature granulation, once molding, less investment, quick effect,
good economic benefit.
2. Micro power, reliable operation, no "three waste" emissions, stable operation, convenient maintain,the process layout rational.
3. Raw materials application is wide, can be used in compound fertilizer material, medicine, chemical
industry, fodder, coal, metallurgy, etc, all kinds of raw material granulation, and can produce various
kinds and density compound fertilizer (including organic fertilizer, inorganic fertilizer, biological fertilizer,magnetic fertilizers, etc).
4. Especially for rare earth, producyion, ammonium sulfate compound fertilizer granulation, filled the
domestic blank, in the domestic leading level, is the national environmental protection promotion projects.
The operation principle:
This series pellet making machine operation principle is: the motor drive the belt and pulley through reducer passing the power to the driving shaft, and the driving shaft through the open gear synchronization with the driven shaft, extrusion granulation.
Technical parameters of pellet making machine
| Model | LT-220 | LT-290 | LT-400 | LT-500 |
| Capacity (t/h) | 0.5-1 | 1-2 | 2-3 | 4-5 |
| Granulating rate (%) | ≥90 | ≥90 | ≥90 | ≥90 |
| Power (kw) | 5.5-7.5 | 7.5-13 | 15-18.5 | 18-45 |
| Material moisture content (%) | 2-5 | |||
| Pellet specifications (mm) | Φ2-30 | |||
| Granulating temp | room temperature | |||
| Pellet strength (n) | 6-20 (crush resistant) | |||
| Pellet shape | ball shape, pillow shape, bar shape, etc, various | |||
The handling of pellet making machine normal issues:
| Issues | Reasons | Methods of handling |
| Ball socket circumferential displacement | A: complete set of bolt looseness B: roller and shaft loose | A: adjust the stock and tighten the belt B: replace the roller or shaft |
| Can not molding ball or just molding pie shape | A: underfeeding B: excessive clearance C: clearance middle is big and two ends small | A: meet the feeding B: adjust gap between rollers C: grind off two ends, smaller the gap |
| Not discharging ball | A: high moisture content B: ball pressure intensity is not enough C: the new mould of rough surface | A: using dry material B: Reducing gap of two rollers C: abrasive grinding |
Samples and mould
Customer's production line
The whole production line is available in our factory, include cursher, mixer, binder, dryer. We also have different type coal/charcoal briquette machine, powder pellet making machine, sawdust biomass briquette machine and so on.
If you need, welcome to contact me.
My name: Vicky Zhang
Skype:bojlantian
Mob:0086-15038259123
I am waiting you!!!
< We promise: >
1. Manufacturing high quality products:
From material purchasing to the finished products: we strictly according to the National Quality Inspection Standards, not only the shisha tablet machines, but also the ancillary equipments for the whole production line.
2. Be good faith producers:
Our quality is consistant, what we are doing just what we have been saying, what you need to do is to
rest assured use our machines and equipments.
3. Warm and thoughtful service:
♥. Pre-sale service: design and manufacture machines for you as your requirements, provide you with project, process design, and purchase programm.
♥. On-sale service: accompany you to check the performance, and finish the shipment.
♥. After-sale service: engineers are available to install the equipments, commissioning and training operators on site.
