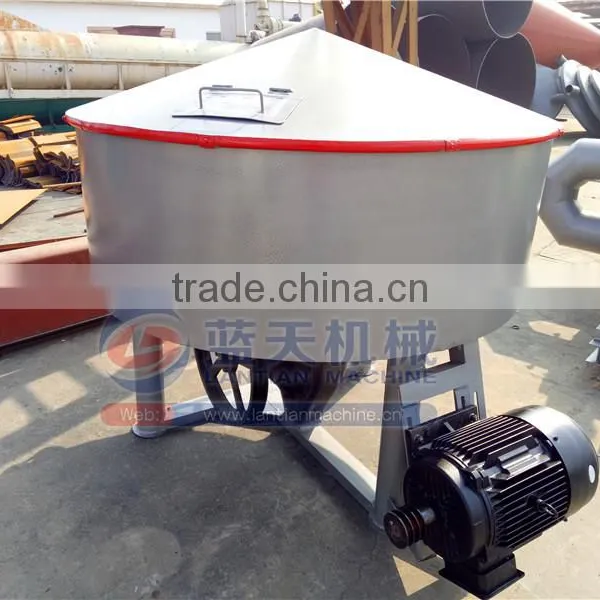

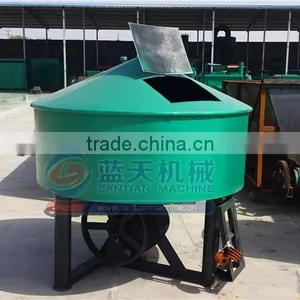

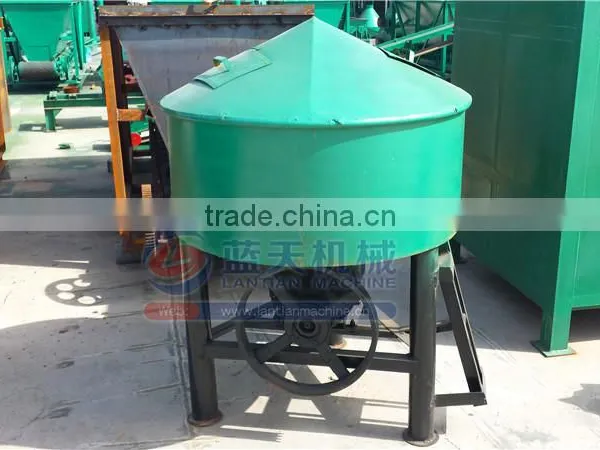

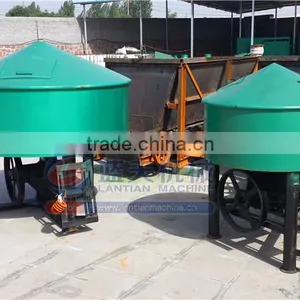

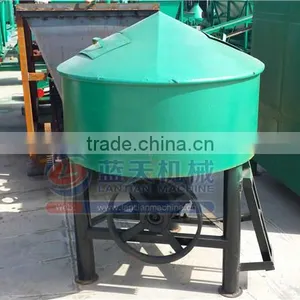

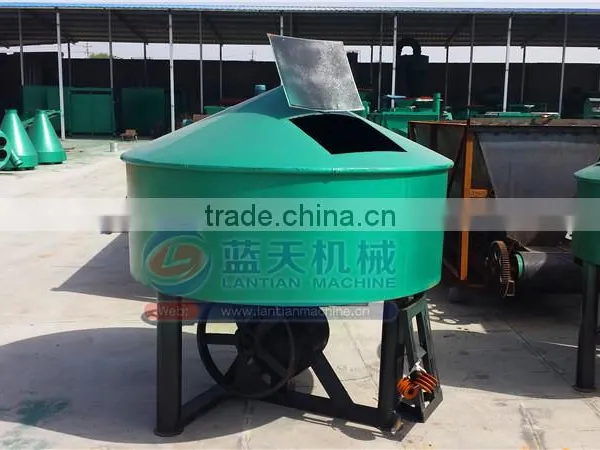

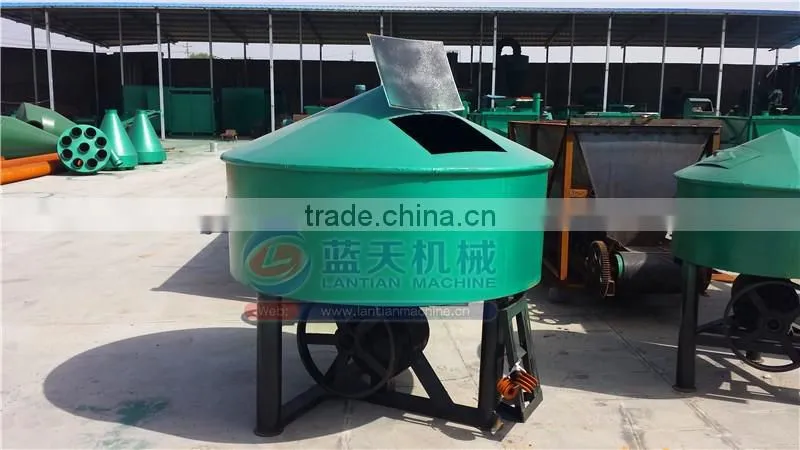

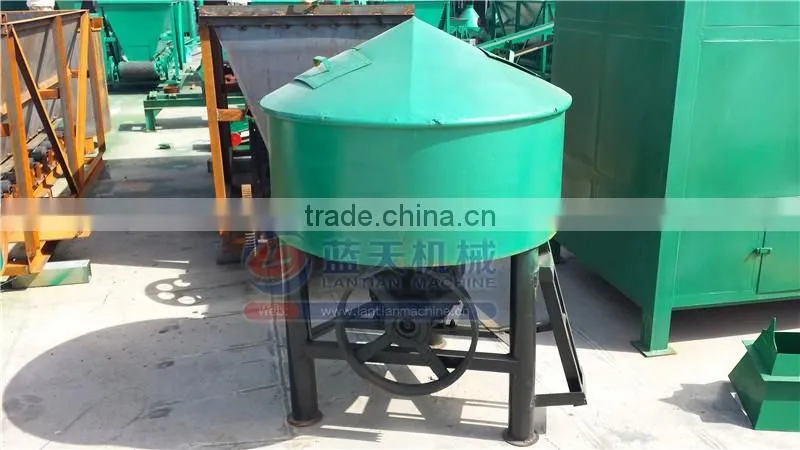

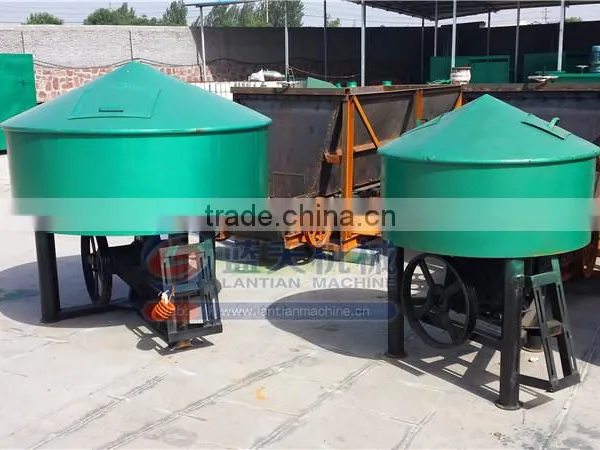

High efficient suitable for coal/charcoal/mineral powder wheel roller mixer
Advantages of wheel roller mixer:
1.High production efficiency:Using wheel rolling, the raw material has repeatedly rolling and mixing, making
the raw material mixed more fully, improving the bond degree of raw material.
2.Low cost:Low power, high output, low power consumption, high cost performance.
3.Automatic setting:Using gas control switch,can be directly control by computer.without specialized manual
operation.
4.Simple operation:Not need professional technology.
Working principle of wheel roller mixer:

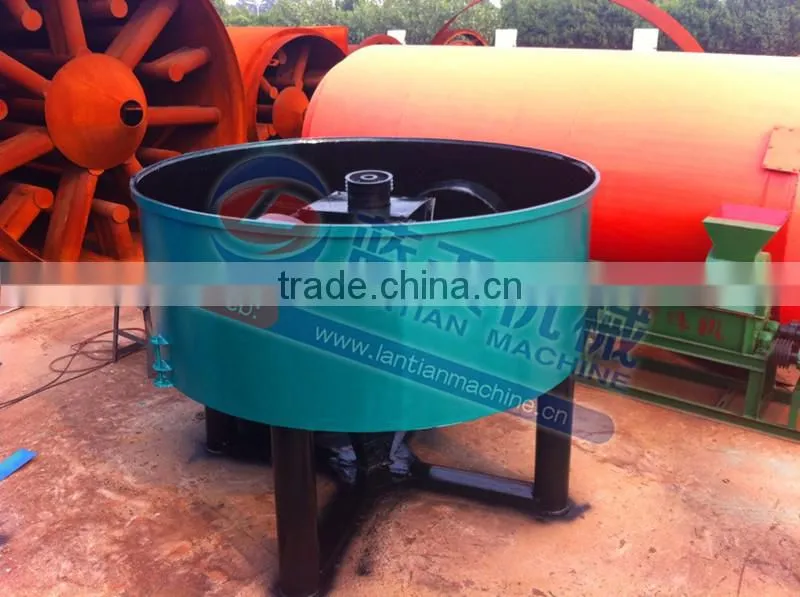

Wheel mixer is mainly composed of the grinding wheel,grinding disk,mixing room,scraper, transmission device,
deceleration device, discharging device,frame and so on.The height of wheel can be automatically adjusted,
When have a large or hard material, the rolling wheel can automatically rise,over the hard material, due to its
own gravity and automatically fall.The grinding wheel and rotating shaft is connected through the crank .Motor
drive speed reducer, driven by the roller, scraper, transmission device composed of rolling device rotation.In
the process of rotation, rely on the weight of the wheel the material is mixed,At the same time, the rotation of the
wheel is affected by the friction force.After the material is stirred evenly, open the discharging device, Material
is discharged from the scraper to the discharge port.
Technical parameters of wheel roller mixer:
Raw materials/time |
0.5(m³) |
Mixing time |
(3-8)min/time |
Width of wheel |
240(mm) |
Diameter of wheel |
620(mm) |
Spindle speed |
26r/min |
Power |
11Kw |
Size of machine |
1800×100(mm) |
Weight |
1900kg |
Our service for our customers:
♥. Pre-sale service: design and manufacture machines for you as your special requirements,provide you with project, process design, and purchase programm.
♥. On-sale service: accompany with you to look around our factory, explain the manufacture
process of our machines, and check the working performance of our machines.
♥. After-sale service: engineers are available to install and debugging equipments of the whole
production line, besides, commissioning and training operators on site.

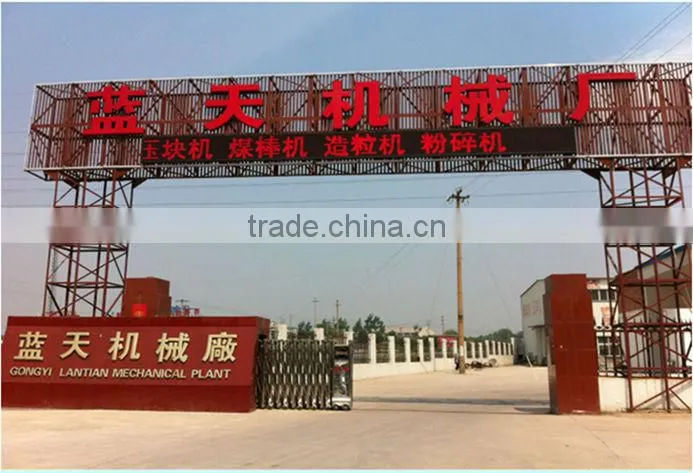

We are a 30 years factory located in "mechanical city" Gongyi city, Henan province, China. 30 dedicated development, we have become to a factory including design, manufacture, sale and after-sales service. Good product quality and finest after-sales service are our intention and goal.
Our main products are different kinds briquette machines, coal briquette machine, charcoal briquette machine, shisha charcoal briquette machine, biomass briquette machine, and other auxiliary machine crusher, dryer, feeder, conveyor machine, mixer, etc.
