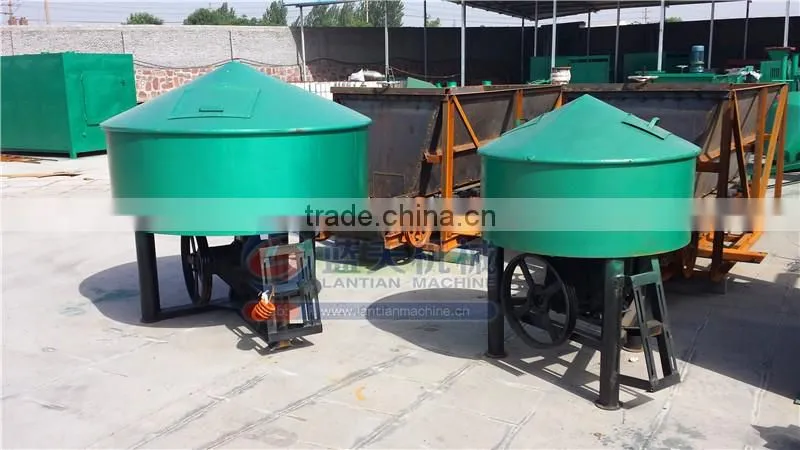

Industrial high efficient liquid dry small powder mixer
Suitable for the mixing of powder and granular material, such as charcoal ,coal ,cement, clay, resistance
of fly ash, slag, tailings, sand etc.widely used in charcoal/coal briquette machine ,The no-burned brick,
steam pressure brick, refractories, ceramics, building materials and other industries.
Advantages of dry powder mixer:
1.High production efficiency:Using wheel rolling, the raw material has repeatedly rolling and mixing, making
the raw material mixed more fully, improving the bond degree of raw material.
2.Low cost:Low power, high output, low power consumption, high cost performance.
3.Automatic setting:Using gas control switch,can be directly control by computer.without specialized manual operation.
4.Simple operation:Not need professional technology.
Working principle of dry powder mixer:
Wheel mixer is mainly composed of the grinding wheel,grinding disk,mixing room,scraper, transmission device, deceleration device, discharging device,frame and so on.The height of wheel can be automatically adjusted,When have a large or hard material, the rolling wheel can automatically rise,over the hard material, due to its own gravity and automatically fall.The grinding wheel and rotating shaft is connected through the crank .Motor drive speed reducer, driven by the roller, scraper, transmission device composed of rolling device rotation.In the process of rotation, rely on the weight of the wheel the material is mixed,At the same time, the rotation of the wheel is affected by the friction force.After the material is stirred evenly, open the discharging device, Material is discharged from the scraper to the discharge port.
Technical parameters of dry powder mixer:
Raw materials/time | 0.5(m³) |
Mixing time | (3-8)min/time |
Width of wheel | 240(mm) |
Diameter of wheel | 620(mm) |
Spindle speed | 26r/min |
Power | 11Kw |
Size of machine | 1800×100(mm) |
Weight | 1900kg |
Our service :
1. Pre-sales service:
1). sales person, project manager, technology engineer, accountant staff.
2). professional responding team: would be very fast and exactly to send you offer.
3). choose suitable machines and make producing plan according to the raw materials, final shapes and output capacity.
4). offer reasonable price to meet your budget.
5). invite customers to our factory, let you know how the machine work, and compare the quality with other suppliers.
6). producing super and solid quality of machines.
7). arrange shipping and fast delivery.
8). standard export package or as your requirements.
2. After-sales service:
1). assistance to build factory.
2). repairing and maintain if any problems occur in the warranty.
3). help for installation or clerk training, if necessary, dispatch technicians to your country to install the machines.
