LTQ series coal dust pellet machine
Introduction of coal dust pellet machine
coal dust pellet machine is used to process different powder below 3 mm into briquettes such as pillow shape,
oval shape,egg shape,ball shape,column shape and so on.These powder can be widely including coal powder,coal dust,charcoal powder,iron powder,coke powder,aluminum,gypsum,sludge,kaolin and other powders.
The main consist parts
Structure consists of three parts: the feeding part, transmission part and molding part.
(1).Feeding part achieve dosing feeding to ensure access to the material evenly between the rolls.
(2).Transmission part, main drive system are: motor -- triangle belts--reducer--open gear--roller.
(3).Forming part, mainly refer to host part of machine and the core part is the roller.
Working principle
Through reducer simultaneously transmitted the power to two pressure rollers and made them rotated
in opposite directions.In two pressure rollers rotation,materials naturally enter into the ball molds on
pressure roller and materials pressure vary from small to large with the rotation of the pressure roller.
When the material is rotated to two rollers line contact points,materials pressure has reached a peak.
Under enormous pressure,the powder materials are suppressed into finished ball.

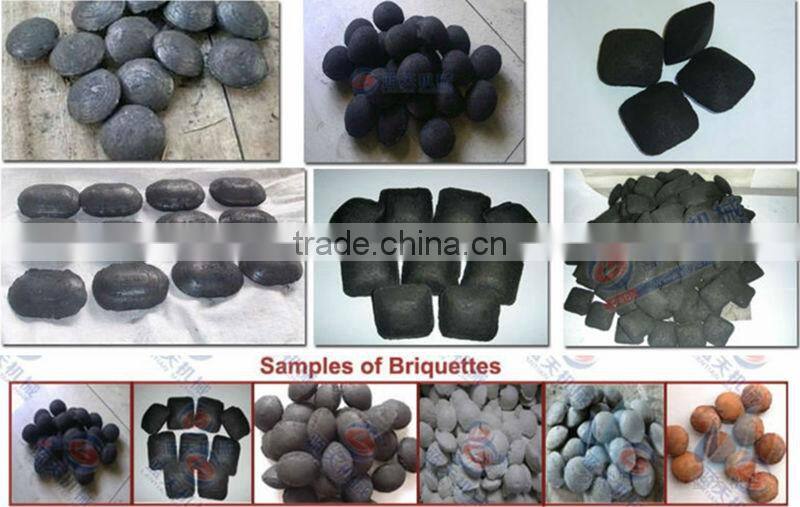

The finished products
1.Shape: The finished products pressed by coal dust pellet machine are diversified,pillow shape,oval shape,
egg shape,ball shape, column shape and so on.
2.Hardness: The finished product are very hard, they are not shattered even though down from 3 meters
height.
3.Transport: It is very easy and convenient to transport either short transport or long transport.
coal dust pellet machine not only can accept coal dust
The complete production line of coal dust pellet machine
crusher---binder mixer---wheel grind---feeder---coal dust pellet machine---dryer
Parameter of coal pellet machine
| model | motor power(kw) | capacity (t/h) | speed radio | diameter(mm) | weight(t) |
| 290 | 5.5 | 2-4 | 1:12.26 | 290 | 0.75 |
| 360 | 7.5 | 3-6 | 1:23.34 | 360 | 1.67 |
| 400 | 13 | 4-10 | 1:23.34 | 400 | 2.7 |
| 500 | 22 | 5-12 | 1:31.5 | 500 | 4.1 |
| 650 | 30 | 10-20 | 1:31.5 | 650 | 5.7 |
| 750 | 55 | 15-30 | 1:31.5 | 750 | 8.9 |
| 800 | 75 | 25-30 | 1:31.5 | 800 | 11 |
Our Services
Full service of Gongyi Lantian Mechanical Plant
Pre-sales service: We can assist you analyze your particular requirements and offer you a single machine, a
multi-stage production, or a complete production line.
After-sales service: We can offer you related technical support and guide you to install the products,or send
our engineer to your factory for the installation. Also we provide one year warranty for all of our products.
shipping terms
We can accept EXW FOB and CIF terms. Also our freight forwarding has high effieiency and quick shipping
speed.If stock machine,we can send out your products within 5 days.If you need special molds or customized
producion line, the delivery time according to you machine quantity, but we will send out as soon as possible.
Payment and Delivery terms
(1).Payment:TT,LC,Western union or other payments
(2).Packing: Naked or can be customized
(3).Allocate and allot according to supplier’s regulation at random.
(4).Liability for breach of contract: Resolve through consultation.
(5).Other unaccomplished matters, are resolved through consultation separately by both sides
Skill standard, Quality guarantee
(1).The technical standard consults the standard of supplier’s enterprise.
(2).Equipment must be100% brand new when leaving factory.Malfunctions which are caused by
manufacturer’s default and quality will be responsible by manufacturer.Other malfunctions which
are caused by operation mistake, man-made problem,etc will be responsible by client herself.
FAQ
(1)What is your company business type? Trading company or factory?
We are a 30 years factory, all the machines are manufactured by ourselves, factory direct sales, so you can
get the factory outlet price,all the products quality and after-sales service can be guarantee.
(2)Could you offer complete production line?
Yes, we will allocate suitable production line, according to your special requirement,such as crusher,conveyor,
mixer, dryer, briquette machine, etc.
(3)Where is your factory located? How I get to?
We are located in Gongyi city, Henan province, China, you can come here by air or train. The nearest airport
is Zhengzhou Xinzheng International Airport,and the Airport Code is CGO.We will pick you up at airport or high
speed train station.Welcome to visit our factory.
