Crusher:The crusher crushing the big size raw material into the required size.
Conveyer:Customer according to their own needs,by adjusting the speed of conveyor belt to decide how much to feed.
Mixer:In oder to meet the high quality product we need to mix fine timber charcoal powder with natural binder evenly.
Feeder:Feeder mainly used to send the materials from the bunker evenly,timing,continuously to the converyor belt in the production process.
Charcoal Briquetting Machine:The machine will make the crushed raw materials processed into products of any shape you want.

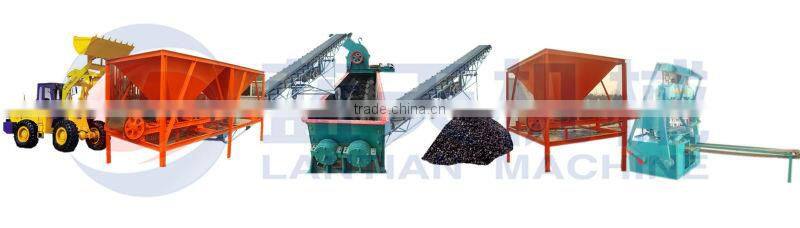

(1)Coal briquette machine production line:
Coal powder---binder mixer---crusher and mixer---conveyor belt---dosing machine---briquette machine---dryer
(2)Charcoal briquette machine production line:
Carbonization furnace---charcoal crusher---binder mixer---wheel mill---conveyor belt---dosing machine---briquette machine---box dryer.
Shape: shape can be round, cylindrical, square, rectangle, polygonal, hexagonal, etc. Or you can have your own ideal shape.
Size: the final size is according to the shape and the machine mould, also you can decide it under certain range.
Characteristics: the product is processed into high density, combustion time is long, non-toxic, smoke-free, etc.

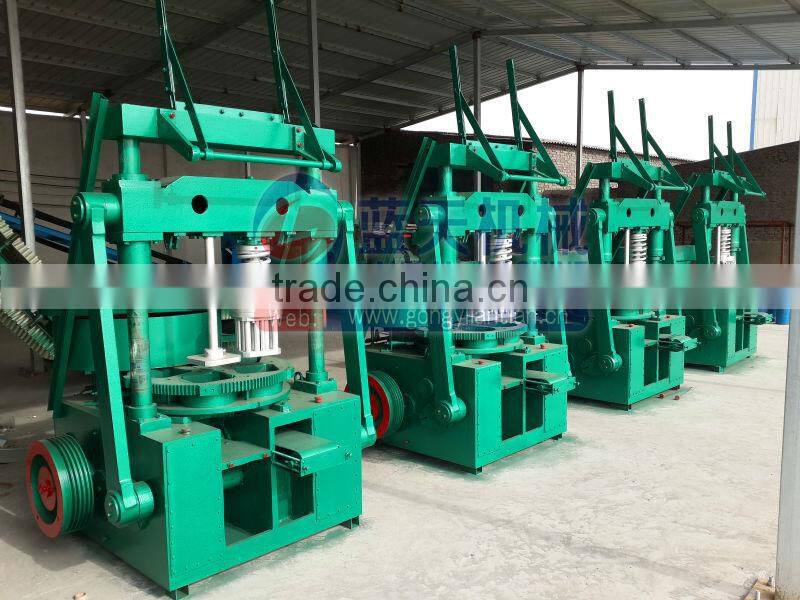

It is maily used to make the coal briquettes in honeycomb shapes.It has been popularly used in China for almost 80 years.Previously raw coal been processed into the coal sphere slightly larger than pingpong,and later the coal processed into one cylinder,and marked with a number of holes inside the cylinder makes it seems like honeycomb,because it can increase the surface area of coal.make the full combustion of coal, to reduce rsource waste.Mostly it is used in coal,metallurgical powder, powder cold- pressing ball.refractory materials.
Structure
Our honeycomb briquette machine is divided into five parts: main body, transmission part, feeding part, punching part, and transport part. And every part works together in order to provide a stable and reliable performance.
(1) Frame: consist of platen, engine base, forming the skeleton entity.
(2)Transmission part: composed of motor, belt pullry, gear, transmission shaft, etc. The motor make the gear shaft rotating through belt pulley, and through two gears pass to axis, and then by a pair of bevel gear and the axis of rotation to drive the dial, and then pass to the four panel movement.
(3) Feeding parts: consist of spindle, hopper, agitator. It will strike by axial gear mixer, beaten charcoal and load mode barrel.
(4) Punching parts: it is meanly consist of four slide, sliding beam, punch, punch holder, punch pin, activity pressure plate, end of activity mode, spring, etc.
(5) Conveying parts: consist of transmission rack, belt pulley, support, conveying belt, etc. The conveyor belt random rotation then the shaped charcoal briquettes come out of the body, the adjustable screw on the conveyor rack can adjust the tightness.
Parameter
Model | MA140 | MA160 | MA180 | MA220 | MA260 |
Capacity(pcs/min) | 45-50 | 45-50 | 45-50 | 20-26 | 20-26 |
power | 7.5kw, 4 pole | 7.5kw, 4 pole | 11kw, 4 pole | 15kw, 4 pole | 15kw, 4 pole |
pressure | 20-30 | 20-35 | 25-35 | 30-40 | 35-45 |
Mode of operation | Punching press | Punching press | Punching press | Punching press | Punching press |
Diameter of mould | 140mm | 160mm | 180mm | 220mm | 260mm |
Height of final products | 30-90mm, adjustable | 30-90mm, adjustable | 30-90mm, adjustable | 30-90mm, adjustable | 30-90mm, adjustable |
Pre-sales service: We can assist you analyze your particular requirements and offer you a single machine, a multi-stage production, or a complete production line.
After-sales service: We can offer you related technical support and guide you to install the products , or send our engineer to your factory for the installation. Also we provide one year warranty for all of our products.
