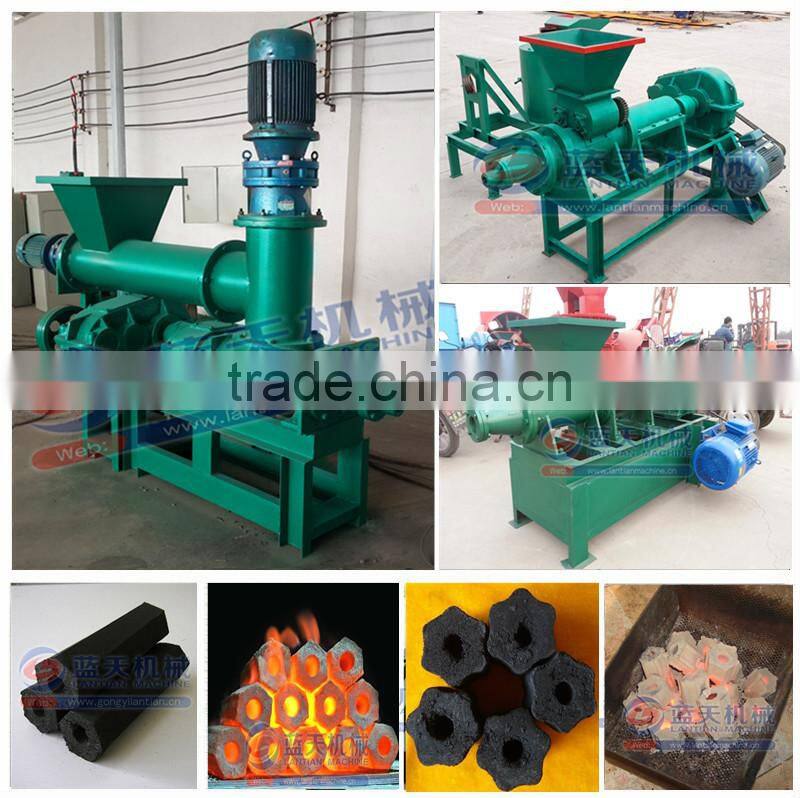

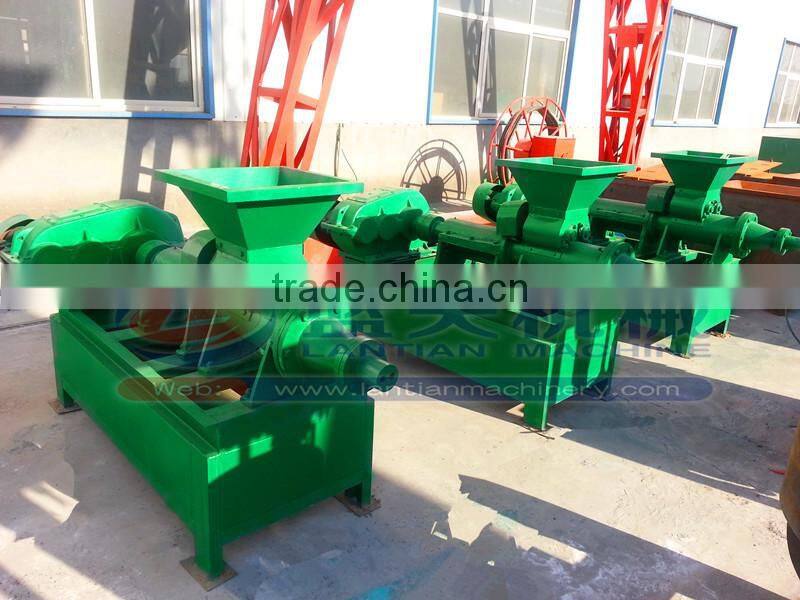

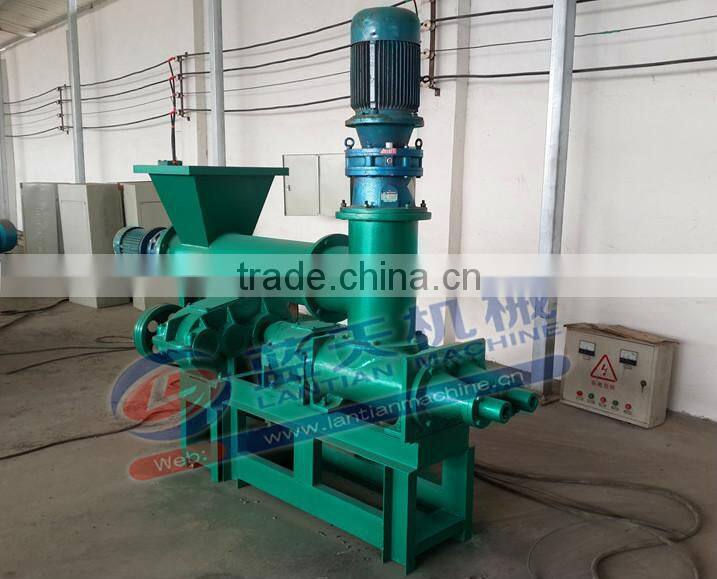

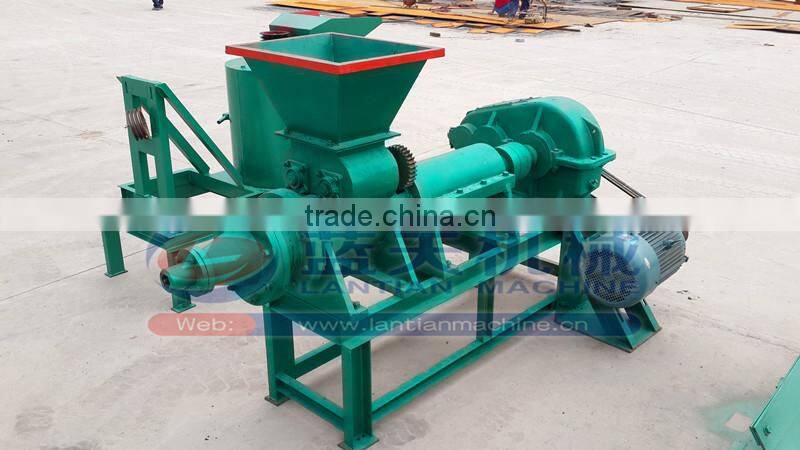

Lantian Machine Screw Charcoal briquette extruding machine
Brief introduction:
Our this charcoal briquette extruder machine is the device of using the screw extrusion principle to squeeze the charcoal powder, coal powder materials and other materials(chemical materials, refractory materials, cement materials iron ore, copper or other matallurgical etc) with or without hole in the middle. It is also an ideal equipment for large, medium and small smelting plant, refractory plant, charcoal and coal processing industry, fertilizer plant, chemical plant, boiler, blast furnace, gas producter, shaft kiln, cement plant, etc.
Our this bbq charcoal extruder machine is the device of using the screw extrusion principle to squeeze the charcoal powder, coal powder materials and other materials (chemical materials, refractory materials, cement materials iron ore, copper or other matallurgical materials) into certain density stick shape briquettes (round, rectangular, hexagonal, plum-flower, triangular etc.) with or without hole in the middle. It is also an ideal equipment for large, medium and small smelting plant, refractory plant, charcoal and coal processing industry, fertilizer plant, chemical plant, boiler, blast furnace, gas producer, shaft kiln, cement plant etc. This bbq charcoal extruder machine can make full use of coal resources, and in the production process, it can reduce the fuel cost and improve the calorific value of coal, which increase the efficiency greatly.
Our new type bbq charcoal extruder machine has three electric motors and two discharging heads which can strengthly producing the briquettes with high density. The new type machine also can make different shapes of hollow or solid briquettes. And its output capacity is twice than the old ones.
Model 180
Model 360
The working principle of this bbq charcoal extruder machine:
The rotating vane wheel of bbq charcoal extruder machine load the raw coal or charcoal from feeding hopper, and when the machine impel the charcoal, the coal will be compressed, closed and mixed. And at the same time, there is intense friction accurred between materials and vanes. Then the coal materials temperature will go up, water and binder will be even, and coal materials are easliy shapping. Through the molding effect, the coal will be compressed closer and closer, and at last, the materials go into the flat part of mould and the briquettes come out.
Advantage of the charcoal extruder machine
1.Applicable to a wide range of materials,pressure can be adjusted according to different materials.
2.For different materials you can choose with binder or not, finished high purity, high molding rate, shape, integrity, smooth surface.
3.Specially designed auxiliary equipment, can realize automatic feeding, automatic discharge, save labor.
4.Can easily swap molds, through the exchange of molds can produce a variety of shapes of products, a multi-purpose machine.
5.High degree of automation, the entire production line can achieve more than one machine control, low labor intensity and long-term continuous operation and so on.

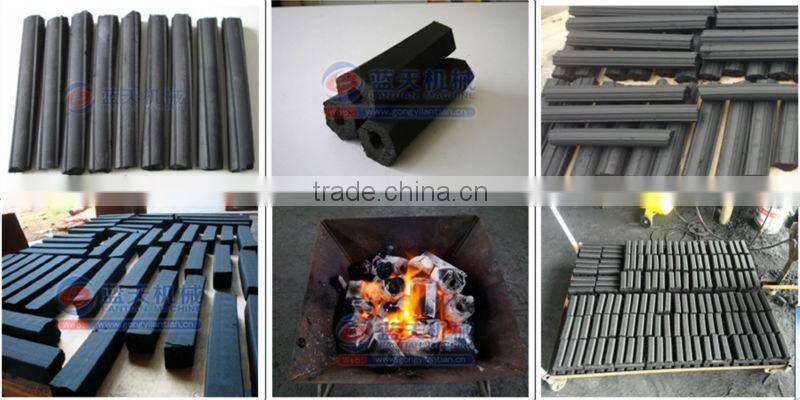

Shape: The outlet shapes can be round stick, hexagonal stick, rectangular stick, etc. And we can customize the different shapes according to your requirements.
Size: Toutlet briquettes can be 15-60mm, and length can be 15-80cm,
Features: The outlet briquettes are of high density, easy fire, smokeless, high value calorific, good looking, long burning, etc.

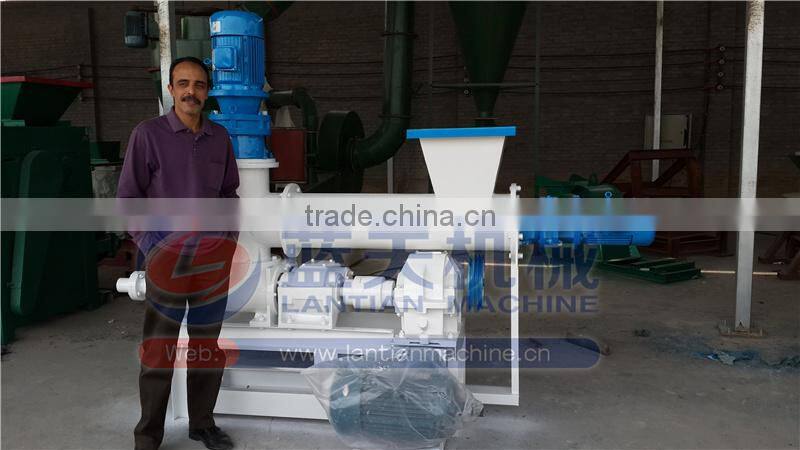

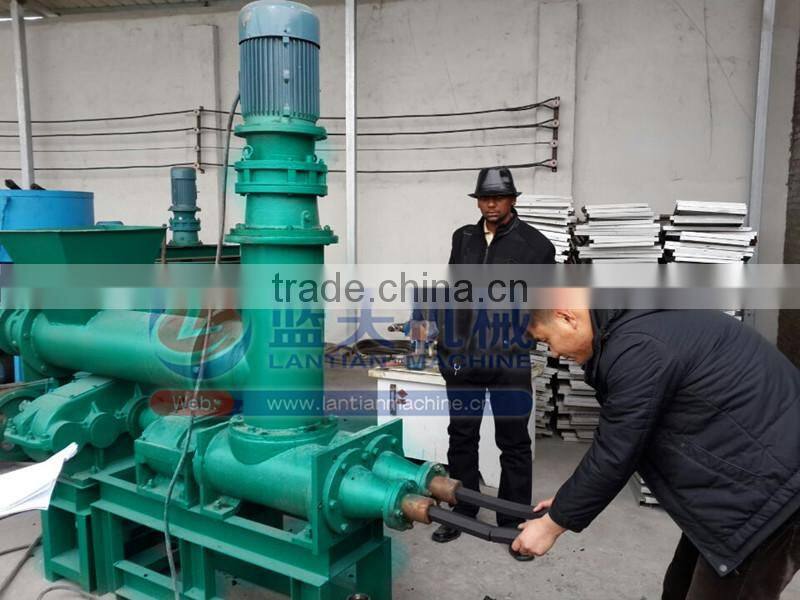

Our customers visit our factory to see this BBQ charcoal extruder machine:
The parameter of this bbq charcoal extruder machine:
| Model | Power | Capacity | Speed | Outlet diameter | Helical blade |
| MBJ-140 | 7.5-11 kw | 1-2 ton/h | 46-60 r/min | 15-50 mm | 4 pcs |
| MBJ-180 | 18.5-22 kw | 2-3 ton/h | 39-60 r/min | 15-60 mm | 4 pcs |
| MBJ-360 | 15+5.5+4 kw | 3-5 ton/h | 45-60 r/min | 15-60 mm | 4 pcs |
1. Perfect working performance: temperature adjusting indicator, it can work steadily at the fixed temperature.
2. Superior quality of the final products: the solid stick pressed by this machine ia easy to light with high calorific value, high density which is favorable for transportation.
3. Uniform size: a screw mould is equipped with the shaping mould, which ensures the shape and size of the final products.
♥ Before Service:
1. According to our customers special requirements, provide the most suitable project design, process design and the purchase program.
2. Guide customers to choose the best and economical plant, recover investment within short time, and site inspection.
♥ On sale service:
1. Accompany you to check the working conditions of our machines.
2. Inspect the quality of all our machines.
3. Manufacturer the equipments as the contact appears at first time after receive your deposit. Arrange the delivery timely.
♥ After sale service:
1. Send engineers to your site, help you to install and debugging devides, build plant, and training operators, at the same time pass the technology on clay brick production to customers.
2. Guarantee of the equipments quality, maintenance, etc. Solve all the troubles for you timely during your production when receive your call oure-mails.
Our factory established in 1989s.After 30 years of development, our factory has developed into a professional enterprise specialized in R&D, design, manufacture, sale and after-sale service. In order to meet the different requirements of customers, we have also designed and researched many types of charcoal processing machine, include biomass charcoal briquette machine, charcoal & coal briquette machine, shisha/hookah charcoal machine, tablet press machine, and rotary dryer, vertical dryer, belt mesh dryer and the accessory machines for he whole production line!
