290 model Briquette Press Machine Description:
1. According to the national conditions in China and combine the suggestions of the majority of the old and new customers for improve and design a kind of new model.
2. The finished products have strong durability, high production efficiency;
3. It is suitable for producing various high strength & environmental protection molded coal, molded coke, mineral powder, refractory material etc.
4. This briquette press machine is adopted the oblique iron type pressing, strong pressure, easy to operate, convenient maintenance, reliable operating etc.
5. Structural form: Four/two rollers pressing.
Feature
1. Forged rollers made of 65 Mn steel, preform better toughness longer service life. Up to 27% cost will save in lifetime using.
2. The finished product won't be broken when being dropped from a 2-meter's height and resistance to both high/low temperature.

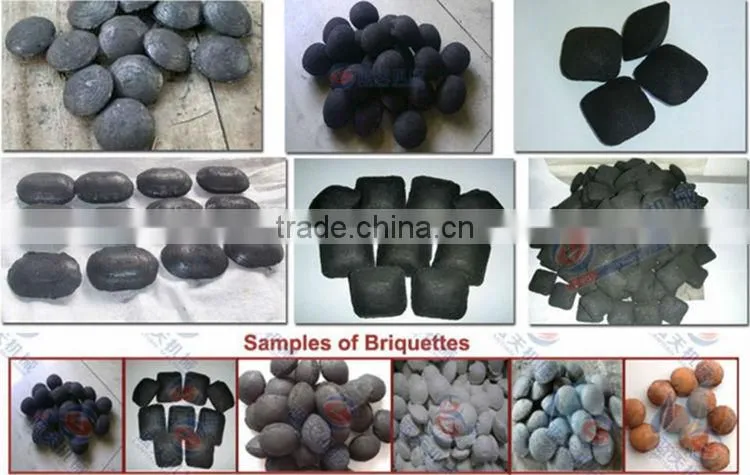

3. The shape and size of the finished product can be customized, and is suitable for many different raw materials, such as, etc.
4. A Series of models for your special needs. For different materials and different production information, our technicians will design the special suitable ball press machine.
Working principle of metal scrap ball press machine
With the two pressure-roller of the machine rotating, the materials were forced into the ball mould between two rollers. The space between the two rollers become narrow and narrow, and the pressure become larger and larger when the two rollers rolling. When the materials came to the line of the contact point of the two rollers', the pressure to the materials reached the peak. After the tremendous pressure of the roller, the materials become the finished product.
Parameters of the coal briquette machine:
We have seven kinds of coal briquette machine, The capacity is varying from 1 t per hour to 30 t per hour, and this kkind of machine has many moulds, this can make different shapes and sizes final products. So, before ordering, tell us which kinds of shapes you prefer. The detailed information about the machine is as belows:
Model |
Roller Diameter(mm) |
Power (kw) |
Capacity (t/h) |
T 290 |
290 |
5.5 |
1-3 |
T 360 |
360 |
7.5 |
4-6 |
T 430 |
430 |
15 |
6-8 |
T 500 |
500 |
18.5 |
8-10 |
T 650 |
650 |
25 |
10-15 |
T 800 |
800 |
30 |
15-20 |
T 1000 |
1000 |
45 |
22-30 |

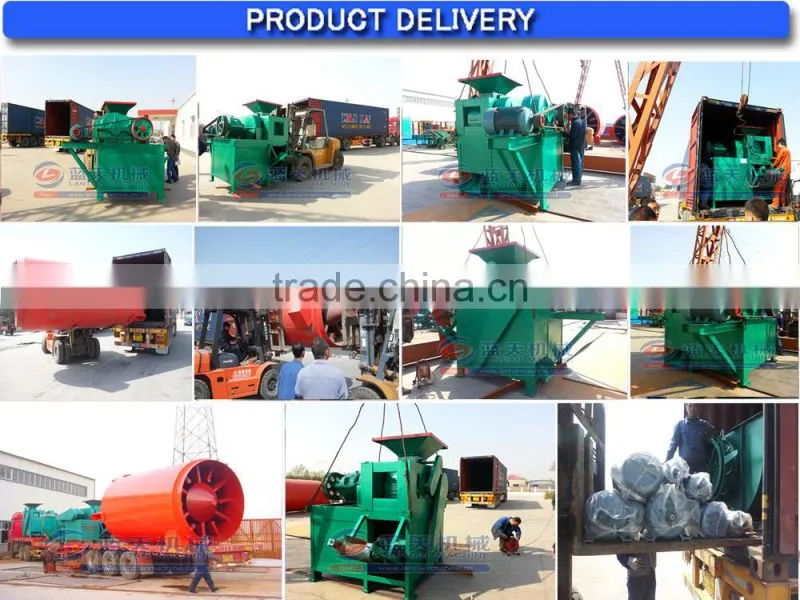

We can accept EXW FOB and CIF terms. Also our freight forwarding has high effieiency and quick shipping speed.If stock machine,we can send out your products within 5 days.If you need special molds or customized producion line, the delivery time according to you machine quantity, but we will send out as soon as possible.
