Metal scrap ball press machine and pillow shape charcoal briquette machine for coal briquetting
1. Established in 1980s, our company covers an area of 100,000 square meters which includes 66,000 square meters of workshops. We have the most advanced technology, most strict process, from material purchase to the finished products, all strictly according to the national quality inspections standards.It mainly specilize in charcoal making machine, sawdust briquette machine,briquette machine,powder making machine,extruder machine, BBQ machine,honeycomb briquette machine,carbonization furnace,heat pump dryer and so on.
2. As manufactures, we have more than 30 years of experience, our products all achieved patent certificates, and our company has many times achieved the title of honer: " Observe Contract and Keep Promise" " Quality Trustworthy Product" "Good After-sales Service Reputation", etc
1.Brief introduction of briquette making machine Our good quality briquette making machine is moulded coal equipment which is mainly used to press coal powder,charcoal powder,coke powder,ore powder and other powdery materials into briquettes.These briquettes can be designed into oval shape, egg shape, pillow shape, square shape, round shape, etc.
This machine is widely used in coal industry, minerals industry and metallurgy industry.
Raw material: it can be coal/charcoal, coal charcoal powder,tyre carbon black.
Shapes of Briquettes:There are different shapes, such as round, square, flower shapes and fan-shaped, etc. Or we can manufacture what you require.
2.The applications of the end products
1. Home heating stoves;
2. Hot water boilers and the industrial boilers;
3. Easy transportation for powder materials.
3. Working principle
1)This series of briquette making machine will pass the powder on to the two pressure roller through the reducer.
2)The two sides and roll rotation, in both the rotating roll, natural materials to enter the ball roll mode, with the roll totation, material pressure on a small become larger.
3)When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials becomes a finished product from the powder ball.
4. Technical parameter of briquette making machine
Item Type |
T290 |
T360 |
T400 |
T430 |
T520 |
T650 |
T750 |
T800 |
||
|
Capacity (T/H) |
2 |
4 |
6 |
8 |
10 |
15 |
20 |
25 |
||
Roller width (mm) |
200 |
240 |
240 |
240 |
290 |
380 |
430 |
480 |
||
Roller Diameter (mm) |
290 |
360 |
400 |
430 |
520 |
650 |
750 |
800 |
||
Power(kw) |
5.5 |
7.5 |
11 |
15 |
22 |
37 |
45 |
55 |
||
Reducer |
350 |
350 |
400 |
400 |
520 |
750 |
850 |
850 |
||

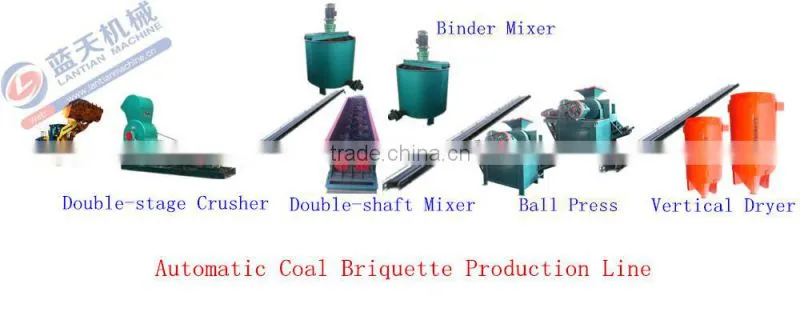

5. Charcoal briquette making machine production line:
