clay brick making machine / fly ash brick machine for hot sale price
Introduction of clay brick making machine south africa:
The clay brick making machine south africa, on the basis of absorbing and introducing the experiences at home and aboard, designed by our factory, is new type clay brick making machine south africa. The series of brick making machine is taking clay, shale, coal gangue, fly ash, mountain mud, silt, industrial tailings, sludge, etc. as raw materials, through crushing, mixing, brick making machine to make prescriptive cross-section of ordinary solid bricks, hollow brick and other products for building. Using the technology of our this clay brick making machine can recycle the wastes, save energy and reduce consumption, which has the obvious economic benefits and social benefits.
technical data
| Type | Measurement Unit | JKB60/60- 3.0 | JKB55/55-3.0 | JKB50/50-3.0 | JKB45/45-3.0 | JKB40/40-3.0 |
| Capacity | pcs/hr | 18000-22000 | 15000-19000 | 12000-16000 | 10000-14000 | 8000-12000 |
| Ream Diameter | mm | 600 | 550 | 500 | 450 | 400 |
| Extruding Pressure | Mpa | ≤ 3.0 | ≤ 3.0 | ≤ 3.0 | ≤ 3.0 | ≤ 3.0 |
| Forming Liquid Water Content | % | 16-18 | 16-18 | 16-18 | 16-18 | 16-18 |
| Max vacuum Degree | Mpa | ≤ -0.092 | ≤ -0.092 | ≤ -0.092 | ≤ -0.092 | ≤ -0.092 |
| Power | Kw | 75/185/15 | 75/160/15 | 55/132/15 | 45/110/15 | 45/90/15 |
The bricks production line of clay brick making machine
This simple clay brick making machine south africa, used to make red soil bricks automaticly, includes feeding machine, crusher, mixer, conveyors, extruding machine, cutting machine.
The simple process of brick production line is: Box Feeder --> Roller Crusher/ Double Stage Crusher --> Double Shaft Mixer --> Brick Making Machine --> Brick Slitter --> Brick Cutter.
1) Taking clay with box feeder, then belt conveyor carries clay to roller crusher till crush clay into very small particles.
2) After crushed, clay powder will less than 3mm. Then belt conveyor carries clay to mixer, which to increase the comprehensive quality of raw materials, greatly improve the appearance quality and ratio of forming. Then clay powder being shaped by brick making machine.
3) After extruding wet column brick,cutting column brick under 1.0-1.5 m,use the automatic brick cutter to cut pieces brick with different capacity.
The other machines for production line of clay brick making machine:
1. Box feeder (clay brick making machine south africa):
Box Feeder is the feeding equipment which is used to balance and ration during brick producing. It is applicable to various bulk and block materials with controllable feeding speed and feeding quantity. It is the first part of red clay brick making machine.
2. High speed crushing machine (clay brick making machine south africa):
High Speed crushing machine and wear on the roller machine is also a raw material crushing, squeezing, grinding equipment. The advantages of the device is low power, reasonable price, suitable for crushing clay raw materials. It is the second step of clay brick making machine.

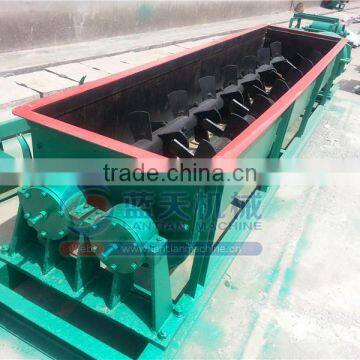

3. Double-shaft mixer (clay brick making machine south africa):
Double-Shaft Mixer is used to mix water with crushed raw materials, increase the comprehensive quality of raw materials, greatly improve appearance quality and ratio of forming, thus it is indispensable raw material processing machine for red clay brick making.
4. Strip cutting and blank cutting machine:
Strip Cutting and Blank Cutting machine is mainly used to cut mud which is squeezed from extruder into qualified red clay brick during sintering brick production. The cutter is the new vertical strip cutting and blank cutting system designed and deceloped by our factory which adopts advanced automatic PLC control, combing with photoelectric, close positioning, pneumatic and electric servo systems and etc. It has advanage of high accuracy, easy operation, and simple maintenance an so on.
6. Brick setting machine (clay brick making machine south africa):
The automatic brick setting machine is mainly used for automatically setting the adobe in firstly yard burning tunnel kiln and secondary yard burning tunnel kiln. This device is controlled by cabinet and lifted by hydraulic lift, which has the features of high efficiency, saving manpower, easy maintenance, lowering cost, stable running and reliable.
7. Hydraulic ferry pusher:
The hydraulic ferry pusher is mainly used for transmitting drying car. This machine adopts synchronous motor, conversion running, outage, electric brake and single device, which can achieve the functions of ferrying, pulling and pushing. This machine is of reliable running and easy operation, which saves manpower and investing cost, and increase the production efficiency.
8. Bidirectional ferry pusher (clay brick making machine south africa):
The machine is the auxiliary equipment used for tunnel type drying room in sintering brick and tile factory. It adopts Bidirectional hydraulic cylinder pusher, synchronous motor, conversion running, outage, electric brake, which are safe and reliable and has the features of convenient adjustment of thrust, fast pushing speed, steady braking, convenient
maintenance and high pushing efficiency.
The service:
1. Pre-sales service:
1). sales person, project manager, technology engineer, accountant staff.
2). pofessional responding team: would be very fastly and exactly to send you offer.
3). choose suitable machines and make producing plan according to the raw materials, final shapes and output capacity.
4). offer reasonbal price to meet your budget.
5). invite customers to our factory, demostrate the machines, let you know how the machine work, and compare the quality with other suppliers.
6). producing super and solid quality of machines.
7). arrange shipping and fastly delivery.
8). standard export package or as your requirements.
2. After-sales service:
1). assistance to build factory.
2). repairing and maintain if any problems occur in the warranty.
3). help for installation or clerk training, if necessary, dispatch technicians to your country to install the machines.
4). supply spare and wearing parts of our machines.
5). any feedback of our clay brick making machine south africa can be told us, and we will try our best to support you.
6). technology knowlogy shares with you.
7). help for any other machine that we haven't.
