High quality vacuum extruder clay brick machine for hot sale
Brief introduction of paving brick:
Lantian Brand paving brick is a use of construction waste, stone, sand, fly ash, slag, smelting slag, wasteceramic materials such as adding a small amount of cement by hydraulic power production with the patterns and colors of the paving brick paving brick Zhuanji equipment.
Our features and advantages:
1. Rain erosion resistant.
2. Non-slip, Wear resistance.
3. No pollution , Ecological environmental protection.
4. Good at high temperature and cold temperature.
5. Various colors and sizes.
6. Convenient construction, Easy operation and easy to repair and maintain.
Advantages of Clement Brick Block Making Machine:
1. The main frames are welded by using high-quality steel and have the features of
low cost, reliable performance, rational structure, solid and durable properties, strong
adaptability, easy to operate, low energy consumption, high capacity, long service life
and easy to maintenance and so on.
2. Introduce of foreign advanced technology. Make the forming moisture of the bricks
is 16-18% so that the bricks are easy to bake.
| Technical parameters of Lantian brand cement brick block making machine: | |||
| Specifications Model | Production (pcs/h) | Motor Power (kw) | Dimension (mm) |
| LTM 90-4.0 | 20,000-28,000 | 132+315 | 9225x2890x3590 |
| LTM 75-4.0 | 16,000-24,000 | 110+250 | 8955x3075x3310 |
| LTM 60-4.0 | 15,000-22,000 | 90+200 | 8655x2450x2820 |
| LTM 55-4.0 | 14,000-20,000 | 75+180 | 8360x2800x3590 |
| LTM 50-3.5 | 13,000-18,000 | 55+132 | 5350x1800x2100 |
| LTM 45-3.0 | 10,000-13,000 |
110-132 | 4960x1680x1750 |
| LTM 40-3.0 | 8,000-10,000 | 90-110 | 4750x1500x1650 |
| LTM 35-2.0 | 6,000-8,000 | 55-75 | 3750x1340x1550 |
| LTM 30-2.0 | 4,000-6,000 | 45-55 | 3450x1220x1320 |
The structure and principle of Charcoal or Coal Brick Machine:
(1) Main body: it consists of bedplate and engine base, which are the frame of the machine.
(2) Rotating system: It is composed of motor, belt pulley, gear and tranmission shaft.
(3) Feeding system: It is made up of rotating shaft, hopper and stirrer. The axial gear drive the stirrer, mixing the coal evenly and sending the coal into the former.
(4) Pressing system: it consists of 4 pcs slide bar, slide beam, punch, punch holder, punch head, pressrue plate, mould end and spring. When the machine working, the slide bar will drive the slide beam, punch head goes down and pressure plate will go up, then the spring retrench, then press the coal into briquettes.
(5) Discharging system: it consist of transmission rack, belt pulley, holder and conveyor belt. The conveyor betl driving and bring the shaped briquettes out of the machine. There is some roses on the transmission holder to adjust the tightness of conveyor belt.

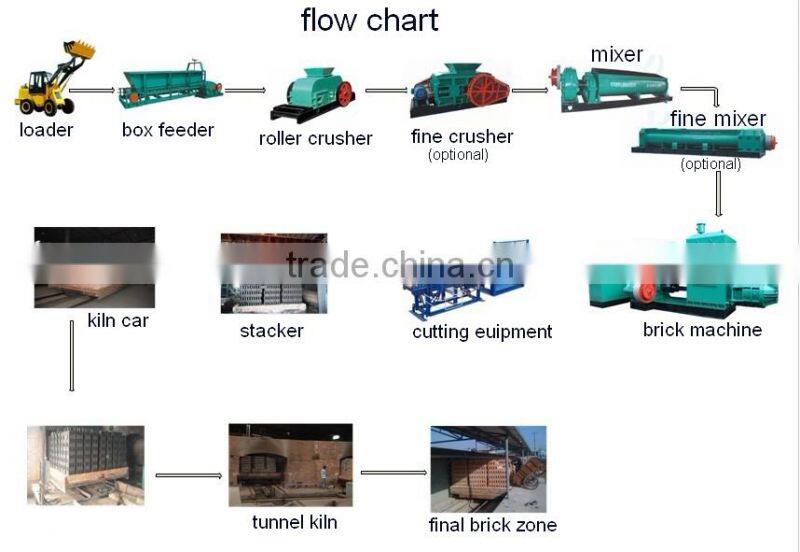

Production Line Equipments of Cement Brick Block Making Machine:
Beside the Clay Brick Making Machine, our factory can also provide the auxiliary
equipments for the whole production process. Includes: box-feeder, crusher,
double-shaft mixer, roller screen, cutter, and some other devices. The following
are the main production equipments:
1. LTM series box-type feeder is the feeding equipment which is uesd to balance and
ration during brick production. It is applicable to various bulk and block materials with
controllable feeding speed and adjustable feeding quantity. (Interlocking Brick making
machine)
2. Futher crush clay and other raw materials by the roller fine crusher, until the raw
material size is ≤ 2 mm. Both ends of the fine crusher are equipped with regulating
pinched security block which are used to protect rolling circle and equipment. (Inter
locking brick making machine)
3. Conveying the fine clay powder into double-shaft mixer by belt conveyor, mixing
and blending with water to futher enchance the comprehensive plastic index of raw
materials. It is mainly used for watering and mixing treatment for clay, shale, coal
gangue, coal ash, and other raw materials. (Interlocking brick making machine)
4. After extruding, the wet long striped brick are cut into different size of pieces green
bricks by the automatic slitting cutter. (Interlocking brick making machine)
1. Pre-sales service:
1). sales person, project manager, technology engineer, accountant staff.2). pofessional responding team: would be very fastly and exactly to send you offer.
3). choose suitable machines and make producing plan according to the raw materials, final shapes and output capacity.
4). offer reasonbal price to meet your budget.
5). invite customers to our factory, demostrate the machines, let you know how the machine work, and compare the quality with other suppliers.
6). producing super and solid quality of machines.
7). arrange shipping and fastly delivery.
8). standard export package or as your requirements.
2. After-sales service:
1). assistance to build factory.
2). repairing and maintain if any problems occur in the warranty.
3). help for installation or clerk training, if necessary, dispatch technicians to your country to install the machines.
4). supply spare and wearing parts of our machines.
5). any feedback of our Charcoal or Coal Brick Machine can be told us, and we will try our best to support you.
6). technology knowlogy shares with you.
7). help for any other machine that we haven't.
