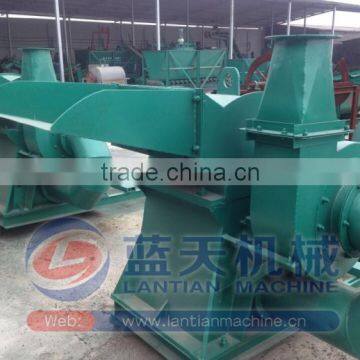

Biomass powder crusher crushing machine
1.Application field:Wood processing plant, raw material processing plant, wood powder raw material processing plant, wood broad processing factory.
2.Common use:Charcoal machine auxiliary equipment;Biomass pellet machine auxiliary equipment;wood powder machine auxiliary equipment;Feed crusher machine auxiliary equipment ,etc.
3.Suitable raw materials:kinds of scrap wood /tree branch/bamboo/Straw,/dressing.
Working principle of sugarcane crusher:

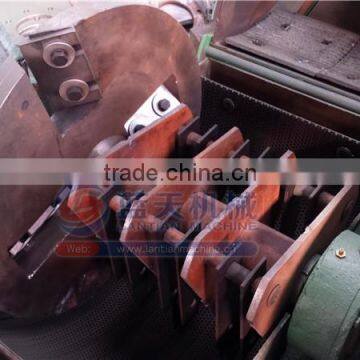

Efficient crusher inpact blade cutting and high speed air flow,collision double crush functions in an
organic whole,and can complete the material separation process at the same time.Produced in the
process of blade cutting grinding,rotor high-speed airflow,along with the blade cutting direction,
materails in the airflow speed,and repeated shocks make material by double crush at the same time,accelerated material crushing rate.
Technical parameters of sugarcane crusher:
Model | 400 | 500 | 600 | 700 | 800 | 1000 |
Cutter diameter( mm) | 400 | 500 | 600 | 700 | 800 | 1000 |
Cutter quantity (piece) | 4 | 4 | 4 | 4-6 | 4 | 6-8 |
Cutter length( mm) | 90 | 100 | 150 | 200 | 230 | 260 |
Feed inlet diameter( mm) | 160×200 | 180×200 | 200×200 | 200×250 | 250×300 | 300×400 |
Main arbor rotation rate (r/min) | 2600 | 2600 | 2600 | 2300 | 2000 | 2000 |
Power( kw) | 7.5-11 | 15 | 18.5-22 | 22-30 | 37-45 | 75+7.5 |
Capacity (kg/h) | 600-900 | 800-1000 | 1200-1500 | 1800-2000 | 2500 | 3000-4000 |
Discharge size (mm) | According to customer demand, adjust fineness during replacing the different screen. | |||||
About raw materials of tree branch grinder:
Size:Diameter1-200mm Fibrous material, Brittle material .
Raw materials:
1.Scrap wood/wood shavings
2.Tree branch/tree root
3.Scrap paper
4.Bamboo
5.Wooden pallets
